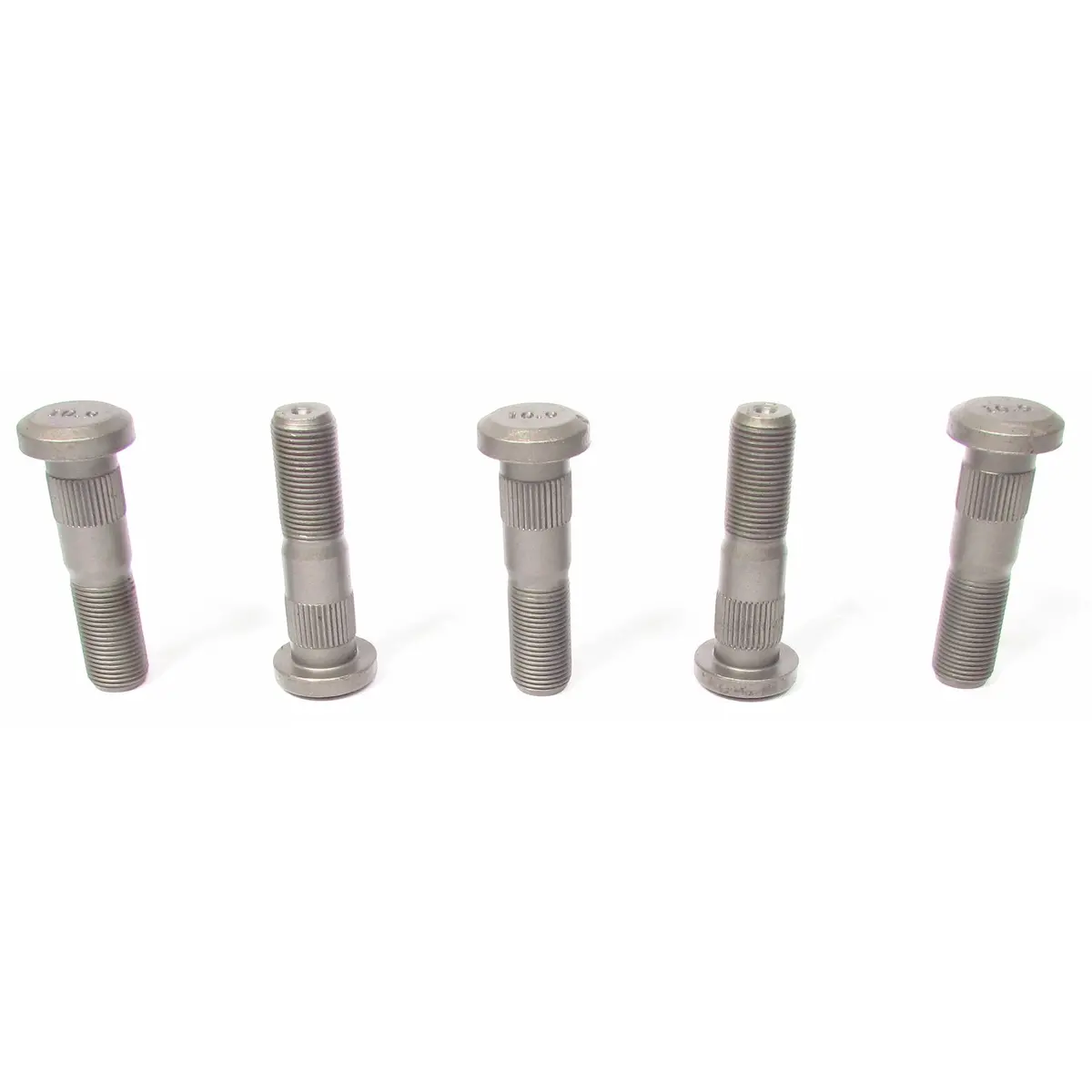

3/4″-16 Serrated Drive Wheel Stud – 0.785″ Base Diameter × 2-15/16″ Length – E8969 Alternative – 10-Pack

Description

Specifications

• Product Line: Driveline & Axles
• Category Name: Wheel Fasteners
• Part Type: Wheel Stud
• Alternate Part Name: Left Hand Wheel Stud, Serrated Drive Wheel Studs, Serrated Drive Wheel Studs, Right Hand Wheel Stud
• OEM Part Number: E8969L, E8969R
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Stud Type: Headed
• Material: Carbon Alloy Steel
• Body Diameter (G): 0.785 in.
• Body Length (E): 1.280 in.
• Head Diameter (F): 1.280 in.
• Head Style: Round
• Head Thickness: 0.310 in.
• Length from Under Head (B): 2-15/16 in.
• Serration: Serrated
• Serration Diameter: 0.820 in.
• Serration Length (D): 0.500 in.
• Thread (A): 3/4 in.-16
• Thread Diameter (H): 0.750 in.
• Thread Direction: LH (Left Hand), RH (Right Hand)
• Thread Length (C): 1.360 in.
• Thread Size: 3/4-16 UNF-2A
• Threads: 16 per inch
• DIN / ISO Grade: 10.9 (metric equivalent of Grade 8)
• Net Weight: 0.46 lb.

Intended Application

• Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
