Description

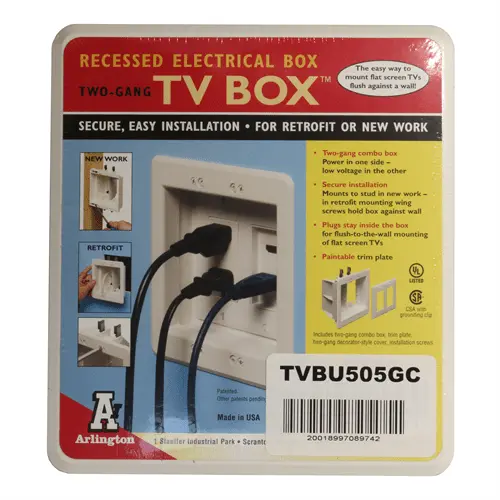

2-Gang Recessed TV Box with Grounding Clip – Plastic, White

Meta Description: 2-gang recessed plastic TV box for new or existing construction. Includes low voltage divider and grounding clip. Made in USA. UL listed.

TL;DR – Who This Is For

Installers and contractors running power and low-voltage behind wall-mounted TVs. Designed for clean, recessed installs in residential or commercial settings where safety, organization, and code compliance matter.

Institutional Fit

– Residential homes and condos with wall-mounted TVs
– Multi-unit residential and rental properties
– Commercial offices, boardrooms, and hospitality installs
– Retrofit or new construction projects requiring recessed TV power management

Technical Specifications

Part Number	TVBU505GC
Trade Size	2-Gang
Type	Recessed plastic TV box
Construction Compatibility	New or existing construction
Low Voltage Divider	Included
Grounding Clip	Included
Color	White
Material	Plastic
Weight	0.726 lbs each
Dimensions	6.942 in (H) x 6.254 in (W)
UPC-A	018997089748
Unit Packaging	1 pc
Country of Origin	Made in USA

Regulatory Compliance

– UL Listed (cULus)
– Designed to support compliant residential and commercial installations
Always confirm local electrical code requirements prior to installation.

Durability and Lifecycle

The rigid plastic construction resists deformation during installation and long-term use. Recessed design protects connections while maintaining a clean finished appearance behind mounted displays.

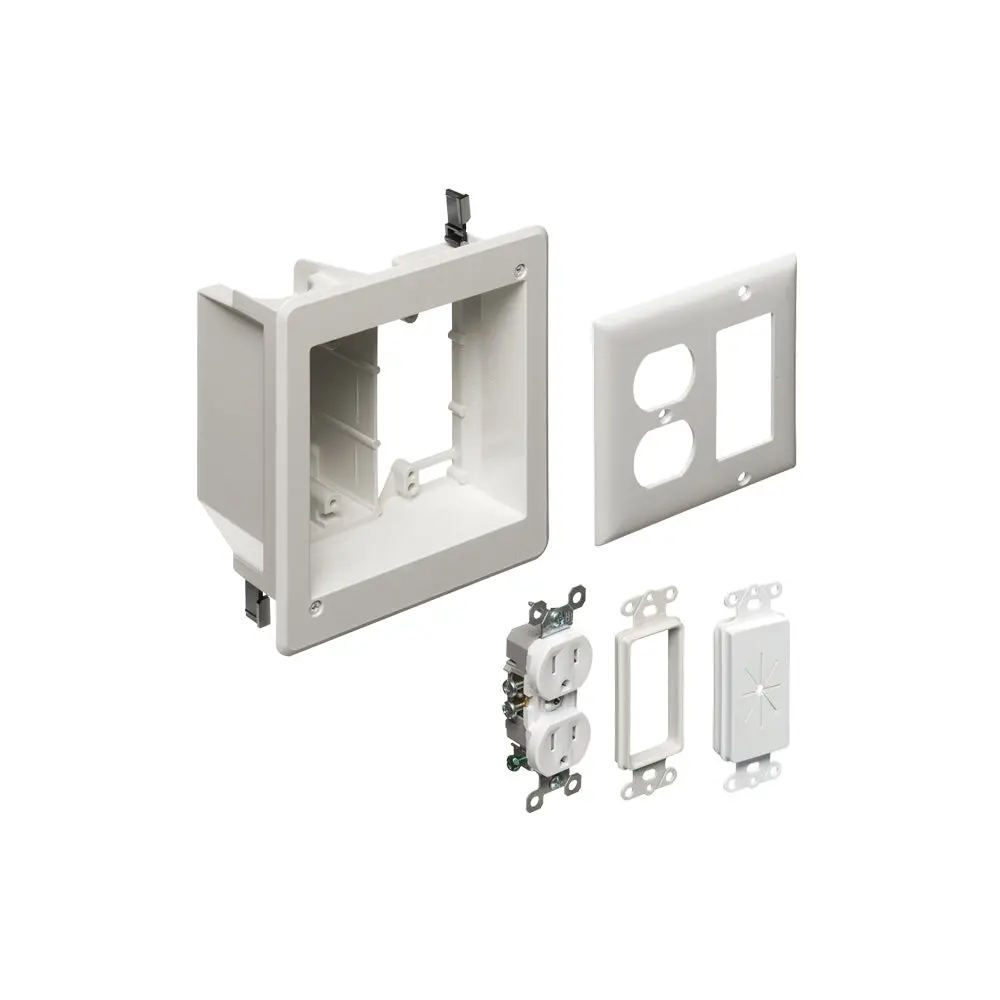

What’s Included

– (1) Trim plate
– (1) Recessed combo box
– (2) NM94 cable connectors
– (1) 2-gang decorator-style / GFCI wall plate with screws
– (2) #8 x 3 in mounting screws
– (4) #6-32 x 1/2 in screws

Procurement Notes

– Suitable for both retrofit and new construction projects
– Low voltage divider helps separate power and signal cables
– Grounding clip included for added safety
– Sold as a single unit

FAQ

Is this suitable for existing walls?

Yes. It is designed for both new and existing construction.

Does it include a grounding clip?

Yes. A grounding clip is included.

Is this box recessed?

Yes. It is designed to recess into the wall for flush TV mounting.

Does it separate power and low-voltage wiring?

Yes. A low voltage divider is included.

What size wall plate does it use?

It uses a standard 2-gang decorator-style wall plate, which is included.

Where can I find drawings and installation details?

Click here for the spec sheet
