Description

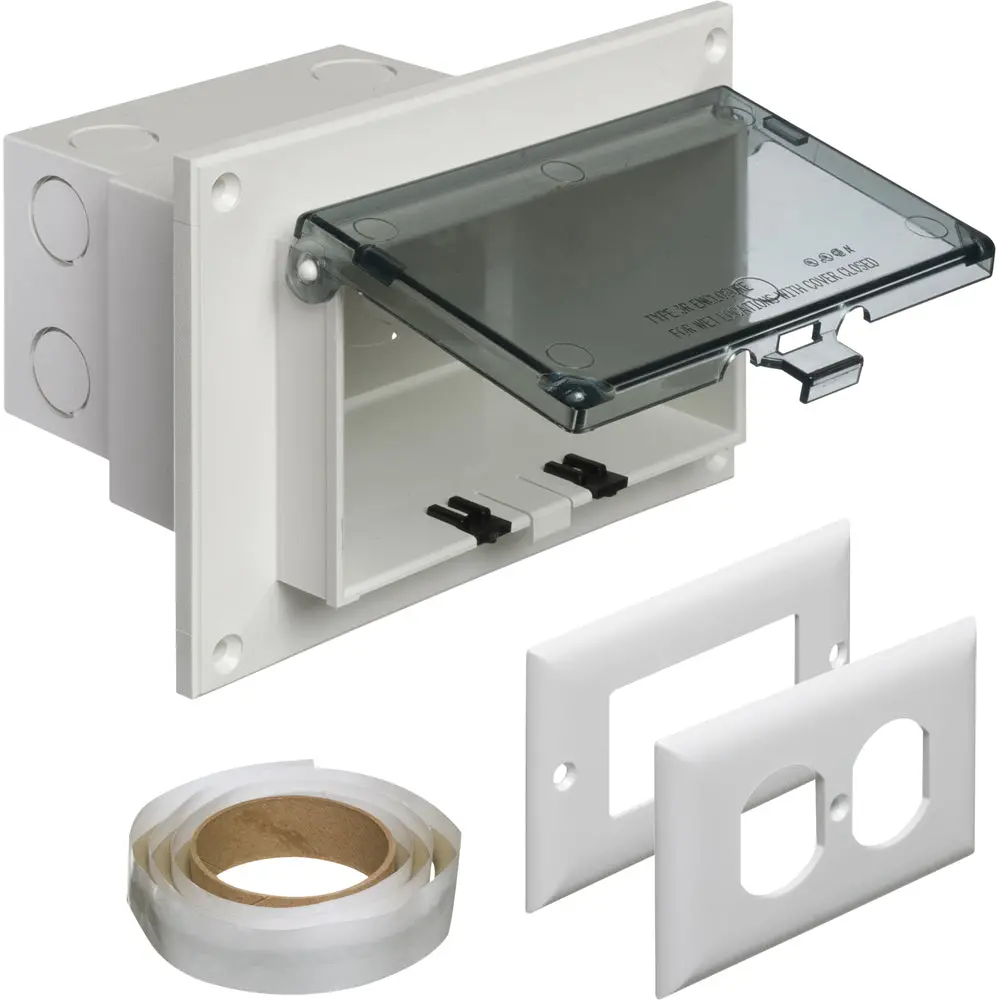

Low-Profile InBox for Flat Surface Retrofit – Horizontal, Weatherproof While In Use

Meta description: Low-profile InBox for flat surface retrofit construction. Horizontal orientation with weatherproof while-in-use extra-duty clear cover. UV-rated plastic, paintable, includes grounding clip. UL and CSA listed.

TL;DR – Who This Is For

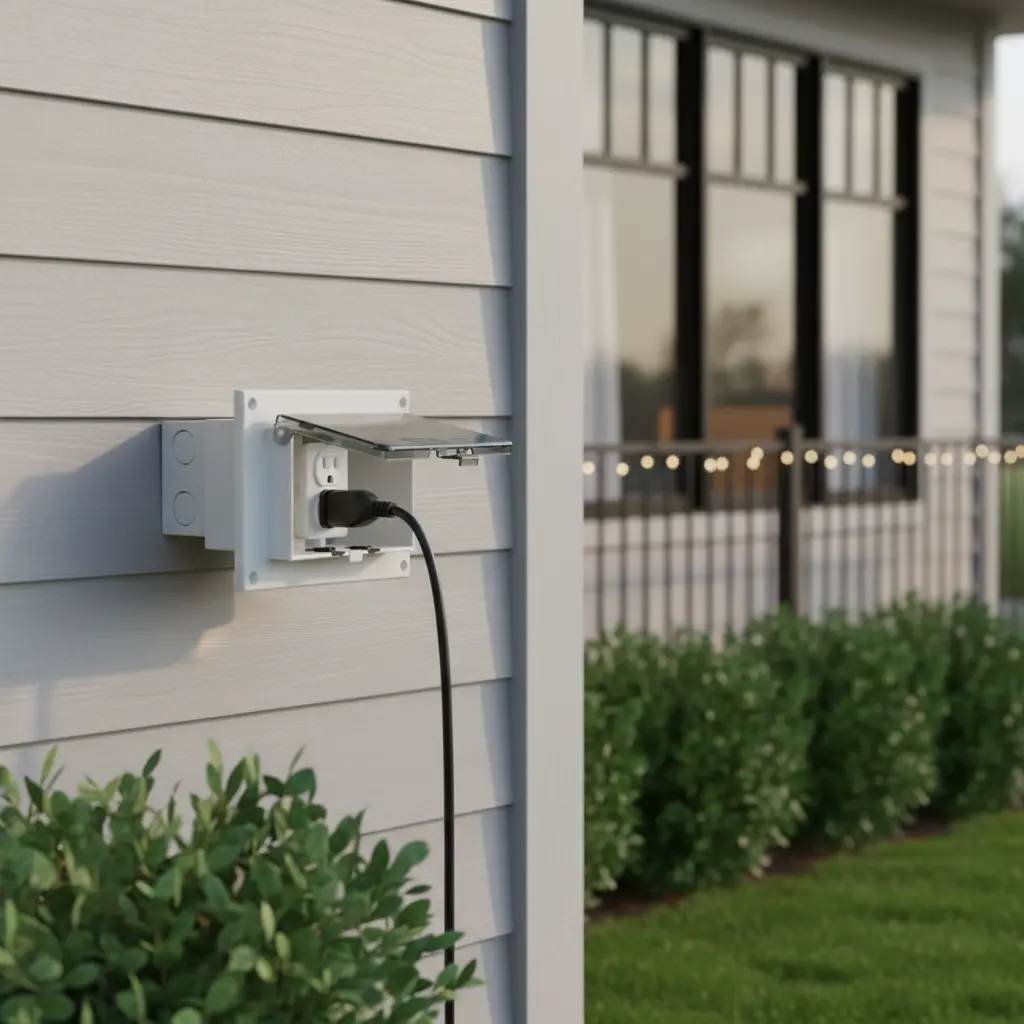

Electricians and contractors retrofitting exterior outlets on flat surfaces where a shallow, low-visibility enclosure is required and devices must remain protected while in use.

Institutional Fit

– Retrofit exterior outlet installs on flat siding or masonry
– Multi-unit residential maintenance and upgrades
– Commercial exterior walls requiring minimal projection
– Jobs needing horizontal orientation with in-use weather protection

Technical Specifications

Part Number	DBHR1CGC
Product Type	Low-profile outdoor InBox
Application	Flat surface retrofit construction
Mounting Orientation	Horizontal
Trade Size	1-gang
Weather Rating	Weatherproof while in use
Cover Type	Extra-duty clear cover
Body Color	White
Cover Color	Clear
Material	UV-rated plastic
Paintable	Yes
Grounding	Grounding clip included
Weight	1.192 lbs each
Dimensions	7.186 in (H) x 4.934 in (W)
UPC-A	018997089168
Unit Packaging	1 pc
Country of Origin	Made in USA

Regulatory Compliance

– UL listed
– CSA listed
Install in accordance with local electrical code and exterior outlet requirements.

Durability and Lifecycle

UV-rated plastic construction supports long-term outdoor exposure. The extra-duty clear cover allows corded devices to remain connected while maintaining weather protection. Low-profile design minimizes visual impact on finished walls.

Procurement Notes

– Designed specifically for flat surface retrofit installs
– Horizontal orientation only
– Paintable enclosure to match exterior finishes
– Includes grounding clip for compliant installations
– Sold as a single unit

FAQ

Is this suitable for new construction?

No. This model is designed for flat surface retrofit construction.

Can devices be used while the cover is closed?

Yes. It is weatherproof while in use.

Is the enclosure paintable?

Yes. The enclosure can be painted to match the surrounding surface.

What orientation does this model support?

This model is designed for horizontal mounting.

Where can I find installation instructions and specs?

Click here for spec sheet
