Description

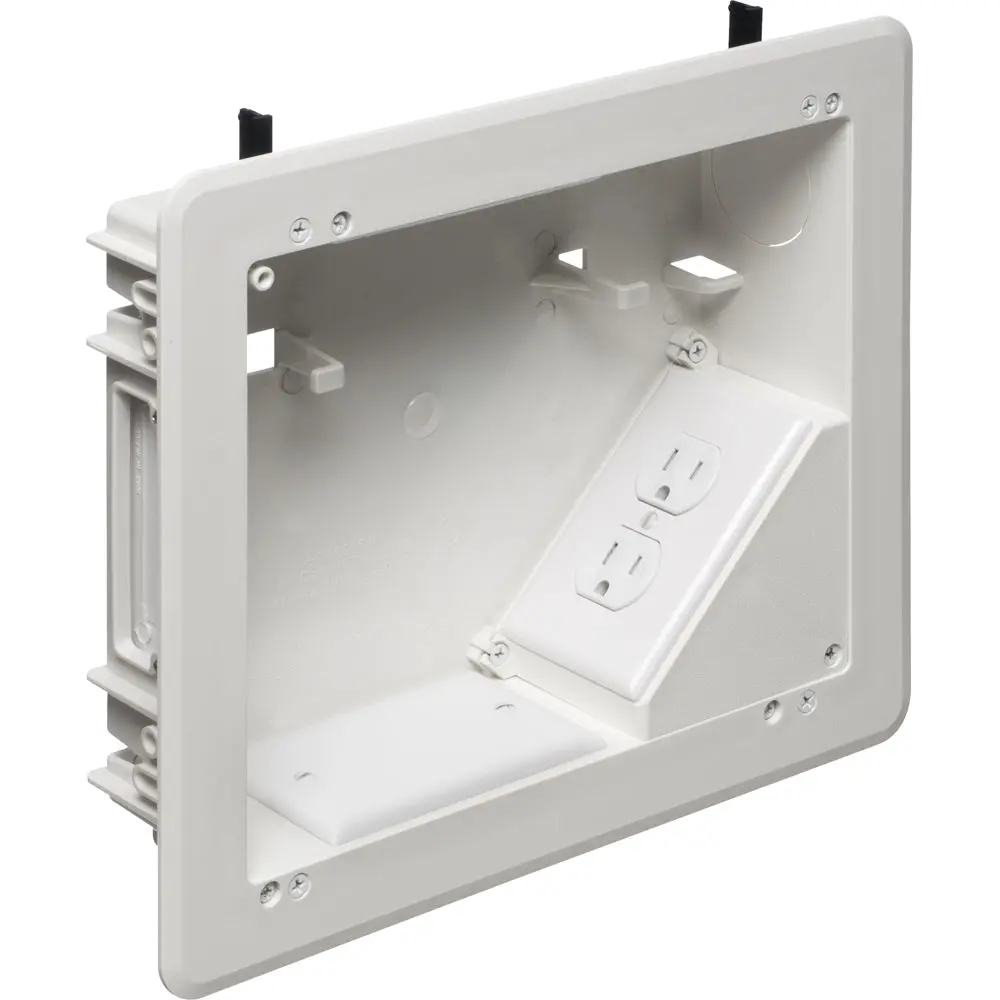

TV Box Bridge Kit with Flange and Grounding Clip – 8 in x 10 in Non-Metallic

Meta description: Non-metallic 8 in x 10 in TV box bridge kit with flange and grounding clip. Includes line voltage box and duplex receptacle. For new and existing construction. UL and CSA listed.

TL;DR – Who This Is For

Electricians, contractors, and homeowners installing wall-mounted TVs who want a clean, code-compliant way to manage power and low-voltage wiring behind the display.

Institutional Fit

– Residential home theater and TV wall-mount installations
– Multi-unit residential and condo retrofits
– Commercial offices, boardrooms, and hospitality spaces
– New construction or retrofit projects requiring integrated power and cable management

Technical Specifications

Part Number	TVBU810GC
Product Type	Non-metallic TV box bridge kit
Trade Size	8 in x 10 in
Construction Type	New and existing construction
Included Power	Line voltage box with duplex receptacle
Knockout Size	1-1/2 in
Cable Management	Wire management brackets included
Grounding	Grounding clip included
Material	Plastic, non-metallic
Color	White
Weight	1.560 lbs each
Dimensions	10.656 in (H) x 12.531 in (W)
UPC-A	018997097590
Unit Packaging	1 pc
Country of Origin	Made in USA

Regulatory Compliance

– UL listed
– CSA listed
Install in accordance with local electrical code and wall-mount TV requirements.

Durability and Lifecycle

Durable non-metallic construction supports long-term residential and commercial use. The integrated flange and grounding clip help maintain electrical safety while delivering a clean, professional wall finish.

Procurement Notes

– Designed for clean behind-TV power and cable management
– Suitable for both retrofit and new construction installs
– Includes receptacle and cable entry components to reduce separate part ordering
– Sold as a single complete kit

What’s Included

– (1) TVBU810 frame
– (1) TVBU810 box
– (1) Tamper-resistant duplex receptacle
– (1) Single-gang wall plate with screws
– (3) Single-gang blank wall plates with screws
– (1) Receptacle mounting bracket
– (1) NM snap-in blank
– (1) NM cable connector
– (1) CED130 insert
– (7) #8-32 x 1/2 in screws

FAQ

Is this kit suitable for existing walls?

Yes. It is designed for both new and existing construction.

Does it include a power receptacle?

Yes. A duplex receptacle is included in the kit.

Can it manage low-voltage cables?

Yes. Wire management brackets and cable entry devices are included.

Is grounding provided?

Yes. A grounding clip is included for added safety.

Where can I find installation instructions and drawings?

View spec sheet
