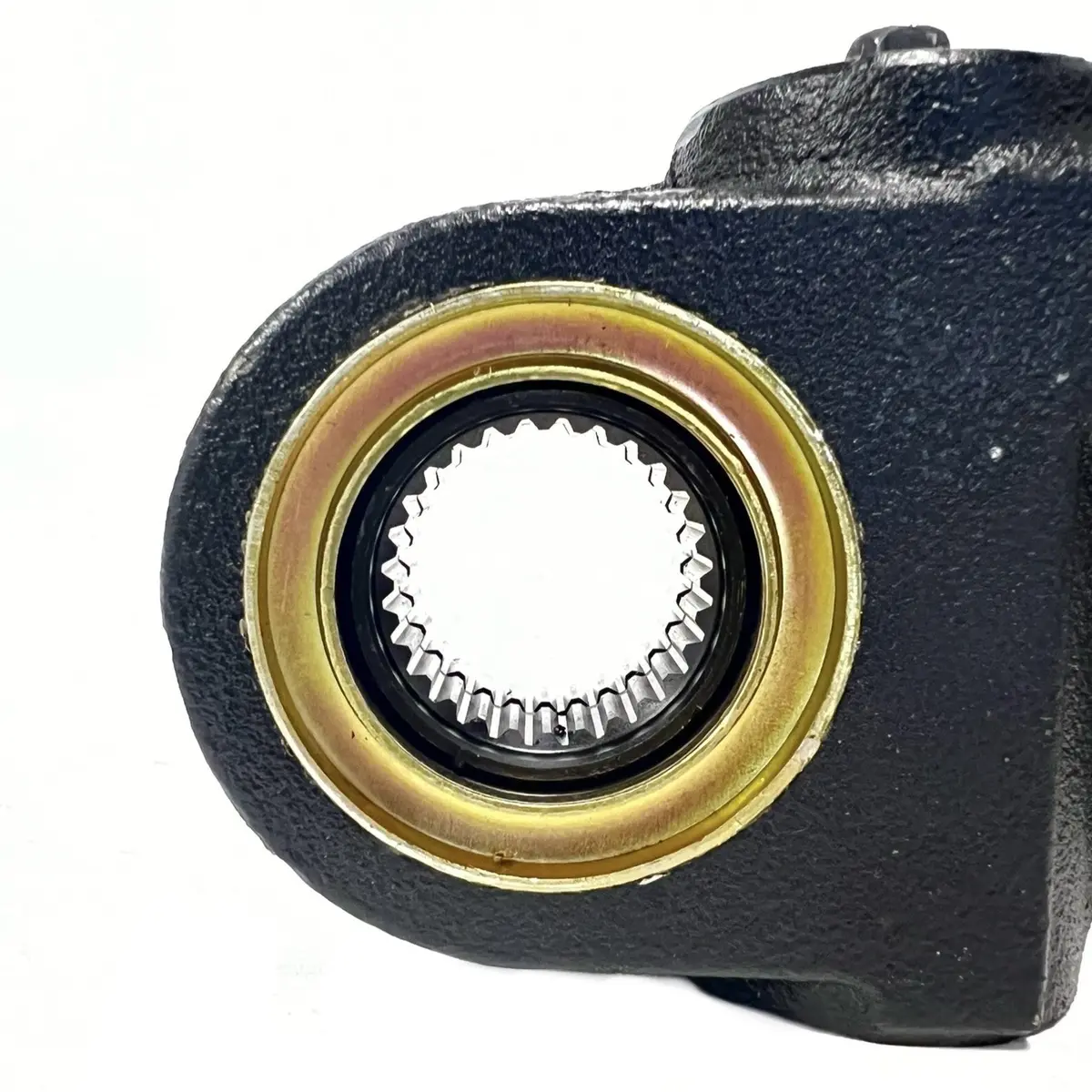

Crewson-Style 1.5-Inch Automatic Slack Adjuster – 28-Spline Configuration, Replaces CB22103

Description

Specifications

• Product Line: Brakes
• Category Name: Slack Adjusters
• Part Type: Automatic Slack Adjusters
• Model: Crewson Style
• OEM Part Number: CB22103
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Compatible Brake Chamber Sizes: Multiple
• Clevis Type: Straight
• Material: Alloy Steel
• Arm Length Position 1: 6 in.
• Arm Length Position 2: 5 in.
• Arm Offset: No Offset
• Body Inclination Angle: 0 deg.
• Clevis Thread Diameter: 5/8-18 UNF-2B
• Slack Spline Count: 28
• Slack Spline Diameter: 1-1/2 in.
• Auto-Check Indicator Included: No
• Maximum Operating Temperature: 158 deg. F (70 deg. C)
• Maximum Torque: Torque <10 or >33 ft-lb
• Minimum Operating Temperature: (-40 deg. F) (-40 deg. C)
• Operation Type: Tension Adjuster – Torque

Cross-references

• 11-355, 11-511, 11-515, 11-519, 11355, 11511, 11515, 11519, 1362830, 25QD419P4, 802670, CB22103, CI22103, CS52321, E-6993, E-6993A. E-6993, E-6993B, E6993, E6993A, E6993B, R806953, R806964
