Description

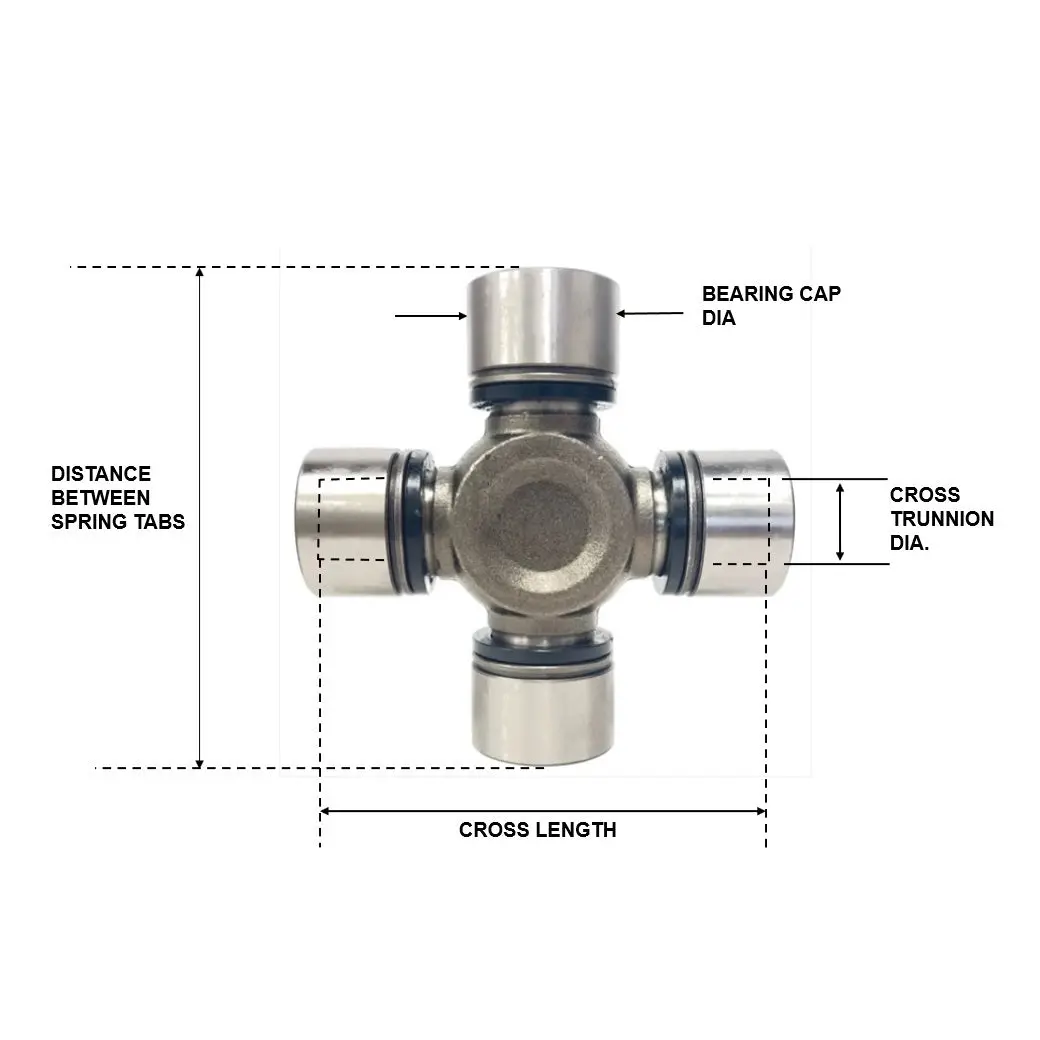

Spicer Select SPL250 Series Universal Joint. Aftermarket performance value for SPL250 Series drivelines. Engineered to match Dana specifications for reliable torque transfer. Features 2.362″ bearing caps and a direct-fit spring tab design. Built to withstand high-torque commercial environments while reducing costs.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Series: SPL250
- Universal Joint Type: Spring Tab Style
- VMRS Code: 24002046
- Material: Steel
- Bearing Cap Diameter: 2.362 in.
- Bearing Cap Type: Round
- Snap Ring Type: SPRTAB
- Spring Tab Distance: 6.417 in.
- Grease Fitting Location: Center of Cross
- Greaseable: Yes
- Net Weight: 11.55 lb.
Bill Of Material
- 1 Universal Joint
- 4 Bearing Caps
- 4 Drive Shaft Bolt (4 M12 X 1.25)
- 4 Drive Shaft Bolt (M8 x 1.00in)
- 2 Spring Tab
- 1 Lube Fitting
Intended Application
- Designed for heavy duty driveshafts utilizing yokes specifically manufactured for the SPRTAB retention style. Manufactured for high-torque drivetrain applications, with a focus on heavy-duty commercial vehicles, buses, and industrial/off-highway machinery. Its greaseable design and SPRTAB Style (Spring Tab) retention system ensure maximum durability, fatigue resistance, and operating efficiency under severe loading and vibration conditions.
Cross-references
- 2104-SPL250X, 2104SPL250X, 2500680C91, 25SPL2503X, 61250, 752SPL250X, EM69780, JUJ-6978, JUJ6978, N61250, PAC5XL250X, SPL-250X, SPL250-3X, SPL2503X, SPL250X, SPSPL250X, US250X
