Description
Genuine Spicer SPL170 Series Universal Joint. Top-tier Life Series greaseable OE kit for heavy-duty drivelines. Features premium multi-lip sealing for ultimate protection from contaminants. Direct fit for SPL170 yokes with a 6.456″ span over caps. Replaces older part numbers SPL170-3X and SPL170X for improved service life.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Series: SPL170
- Universal Joint Type: Spring Tab Style
- VMRS Code: 24002046
- Material: Steel

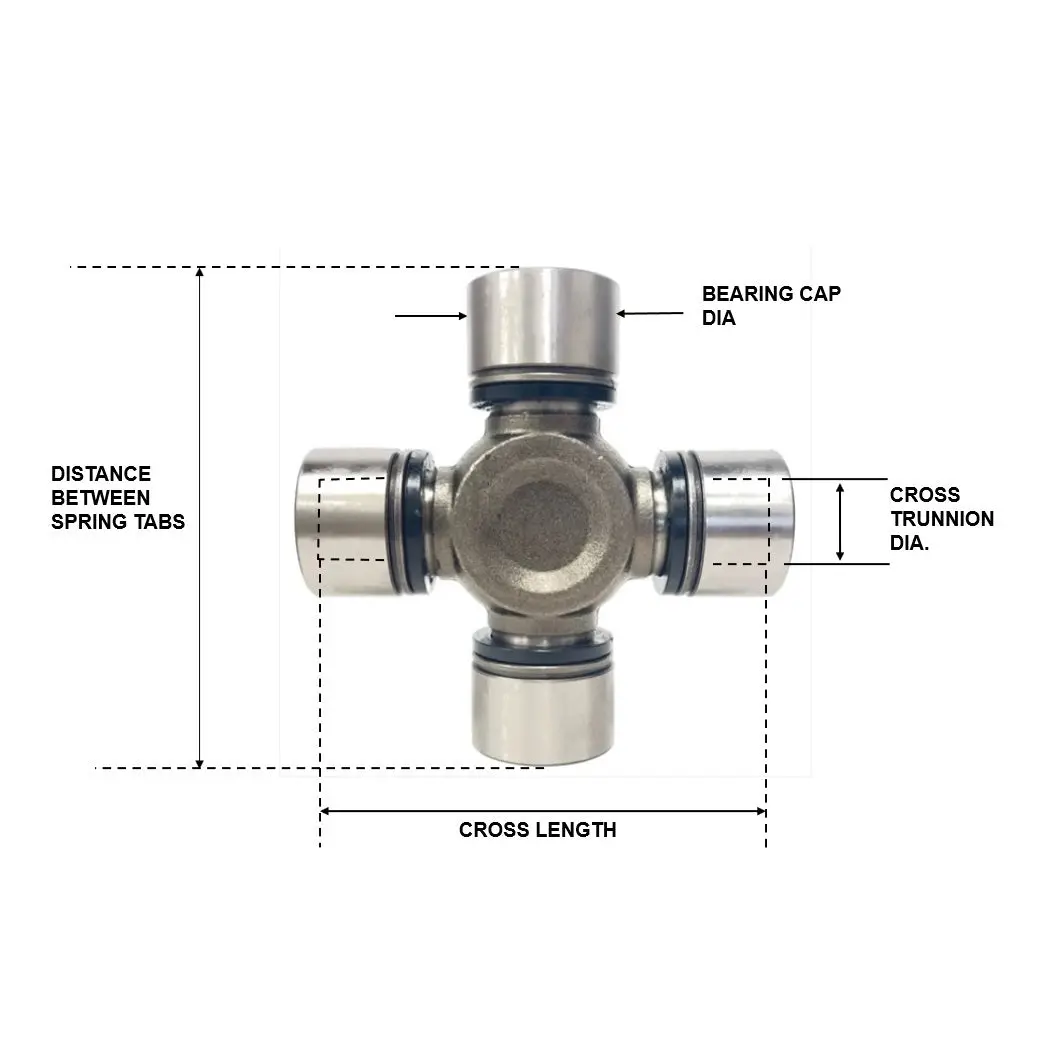

- Bearing Cap Diameter: 2.165 in.
- Bearing Cap Type: Round
- Snap Ring Type: SPRTAB
- Spring Tab Distance: 6.456 in.
- Grease Fitting Location: Center of Cross
- Greaseable: Yes
- Net Weight: 9.88 lb.
Bill Of Material
- 1 Universal Joint
- 4 Bearing Caps
- 4 Drive Shaft Bolt (4 M12 X 1.25)
- 4 Drive Shaft Bolt (M8 x 1.00in)
- 2 Spring Tab
- 1 Lube Fitting
Intended Application
- Designed for heavy duty driveshafts utilizing yokes specifically manufactured for the SPRTAB retention style. Manufactured for high-torque drivetrain applications, with a focus on heavy-duty commercial vehicles, buses, and industrial/off-highway machinery. Its greaseable design and SPRTAB Style (Spring Tab) retention system ensure maximum durability, fatigue resistance, and operating efficiency under severe loading and vibration conditions.
Cross-references
- 2104-SPL170X, 2104SPL170X, 2500678C91, 25SPL1704X, 61170, 752SPL170X, DSSPL1704X, EM69760, JUJ-6976, JUJ-6976N, JUJ6976, JUJ6976N, N61170, PAC5XL170X, SPL-170X, SPL170
