Description
Specifications
- Product Line: Brakes
- Category Name: Slack Adjusters

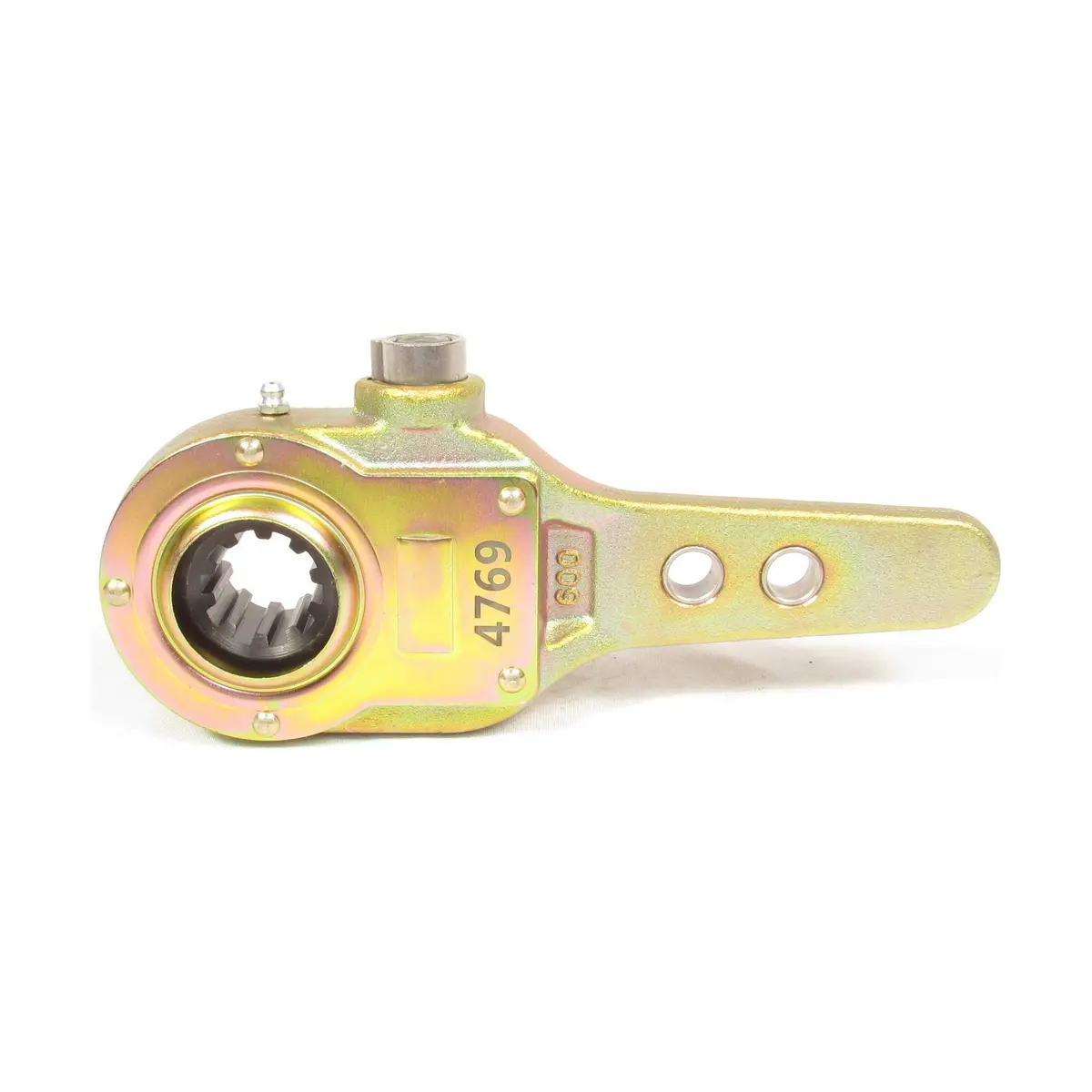

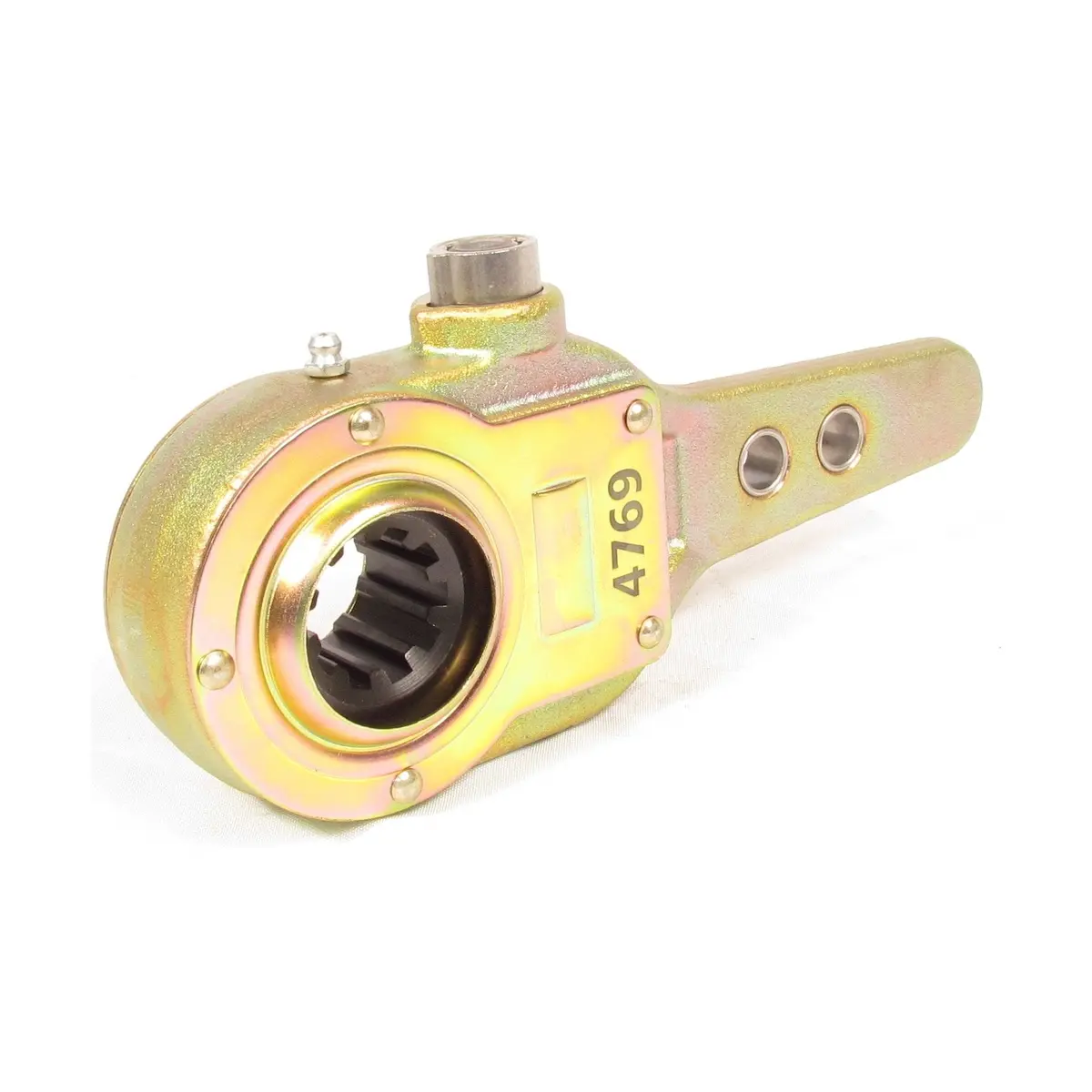

- Part Type: Manual Slack Adjuster
- OEM Part Number: 278302
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Clevis Type: Straight
- Material: Alloy Steel
- Arm Bushing Inside Diameter: 1/2 in.
- Arm Length Position 1: 5-1/2 in.
- Arm Length Position 2: 4-1/2 in.
- Arm Offset: No Offset
- Body Inclination Angle: 0 deg.
- Clevis Thread Diameter: 5/8-18 UNF-2B
- Slack Spline Count: 10
- Slack Spline Diameter: 1-1/4 in.
- Maximum Operating Temperature: 158 deg. F (70 deg. C)
- Maximum Torque: 26.000 In./Lbs.
- Minimum Operating Temperature: (-40 deg. F) (-40 deg. C)
- Operation Type: Tension Adjuster – Torque
- Positive Lock Feature: Yes
Cross-references
- 1341010, 278302, 5214, E-4904BK, E-4904S, E4904BK, E4904S, KN48031, M3375, R824009
