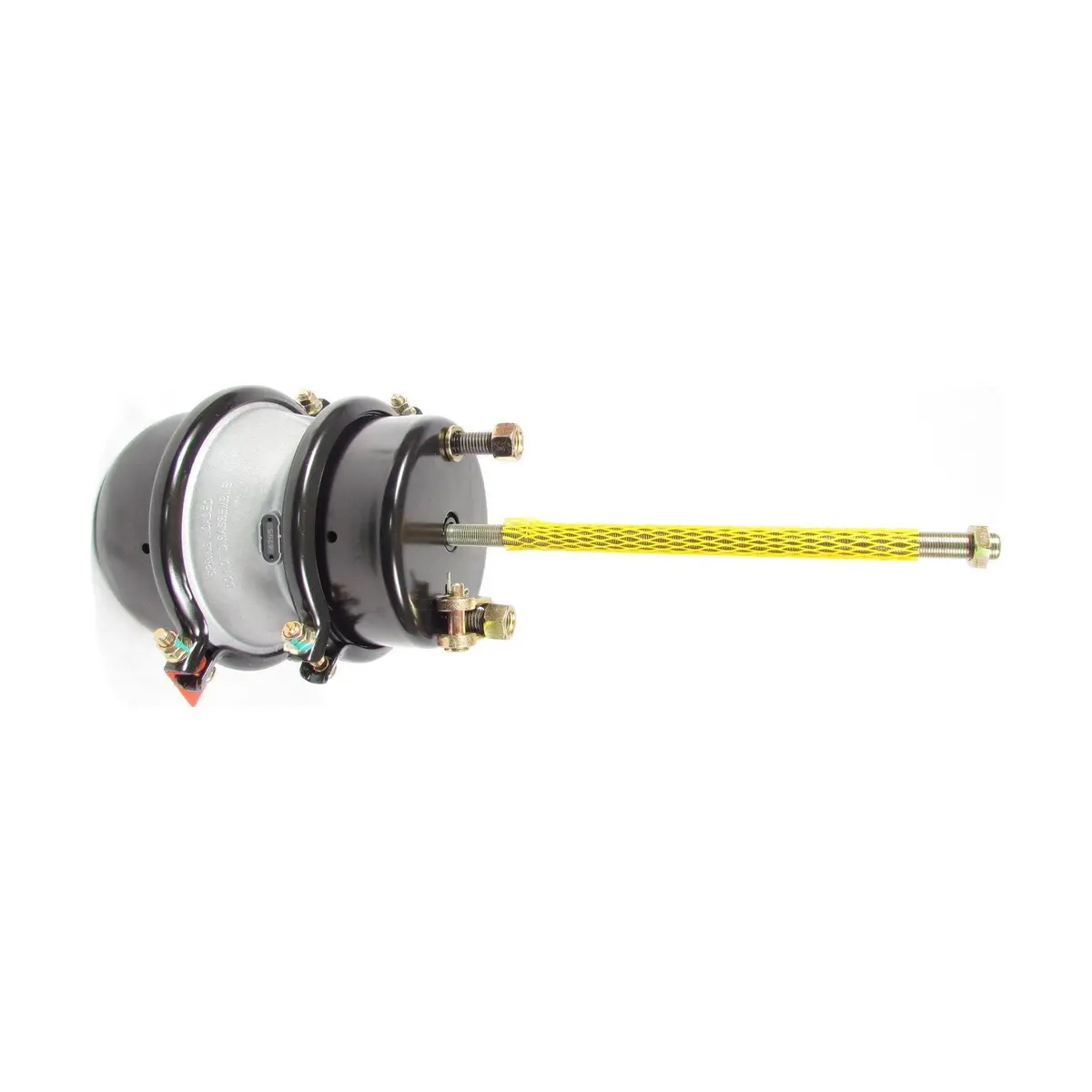

Fortpro 24/30 Standard-Stroke Brake Chamber – Fully Sealed Air Brake Actuator | F224795

Description

Specifications

• Part Type: Air Brake Chamber
• Alternate Part Name: Brake Canister / Brake Can / Air Brake Canister
• Model: Type 2430, T24/30, 24/30, 24-30
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Brake System Compatibility: S-Cam
• Brake Type: Drum
• Chamber Style: Double Diaphragm
• Chamber Type: Spring Brake Chamber
• Clevis Mounting Type: Threaded
• Emergency Port Thread Size: 3/8-18 NPTF
• Mounting Bolt Length: 1.52 in.
• Mounting Bolt Thread Size: 5/8-11 UNF-2A
• Outside Diameter (O.D.): 8.30 in.
• Push Rod Length: 10.00 in.
• Push Rod Thread Size: 5/8-18 UNF-2A
• Service Chamber Joint Type: Single Clamp Band
• Service Port Thread Size: 3/8-18 NPTF
• Clevis Yoke: Included
• Maximum Operating Pressure: 150 PSI
• Port Orientation: 90°
• Serviceability: Sealed
• Stroke Lenght: 2.25 in.
• Stroke Type: Standard Stroke

Cross-references

• 1607379C91, 1607380C91, 19QE453RP3, 2430GC, 800830, E-GC2430, EGC2430, EM24300-100, EM24300100, FLTC2430SB20, GC2430, K026561
