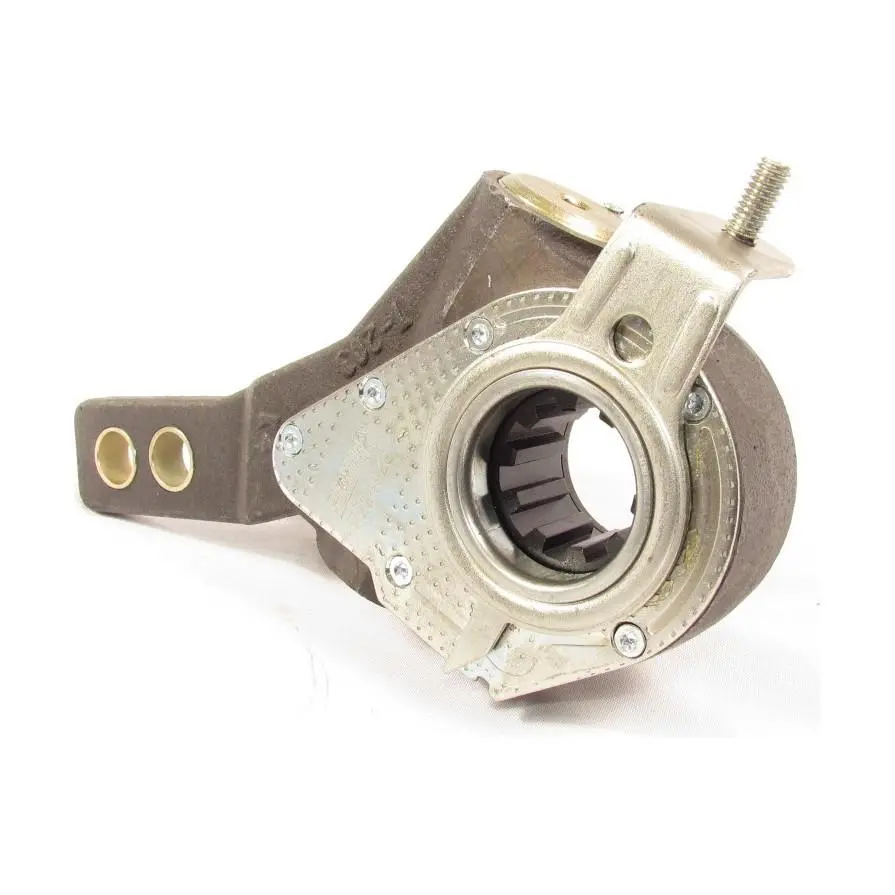

Fortpro Adjustable Slack Adjuster – 1.5″ Dia, 10-Tooth, 5.5″–6.5″ Arm (Haldex) | F224929

Description

Specifications

• Product Line: Brakes
• Category Name: Slack Adjusters
• Part Type: Automatic Slack Adjusters
• Model: Haldex Style / AA1
• OEM Part Number: 40010143
• Anchor Bracket Type: Strap
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Compatible Brake Chamber Sizes: T-30 Std or T-16/T-24 Long Stroke
• Clevis Type: Unclevised
• Material: Alloy Steel
• Arm Bushing Inside Diameter: 5/8 in.
• Arm Length Position 1: 6-1/2 in.
• Arm Length Position 2: 5-1/2 in.
• Arm Offset: No Offset
• Body Inclination Angle: (-34 deg.)
• Slack Spline Count: 10
• Slack Spline Diameter: 1-1/2 in.
• Grease Fitting Location: 180 deg.
• Maximum Operating Temperature: 158 deg. F (70 deg. C)
• Maximum Torque: Less than 15 foot pounds
• Minimum Operating Temperature: (-40 deg. F) (-40 deg. C)
• Operation Type: Tension Adjuster – Torque

Cross-references

• 1331031, 317166, 400-10143, 40010143, 5661, E6924B, M807022, MK41100S, R806022A
