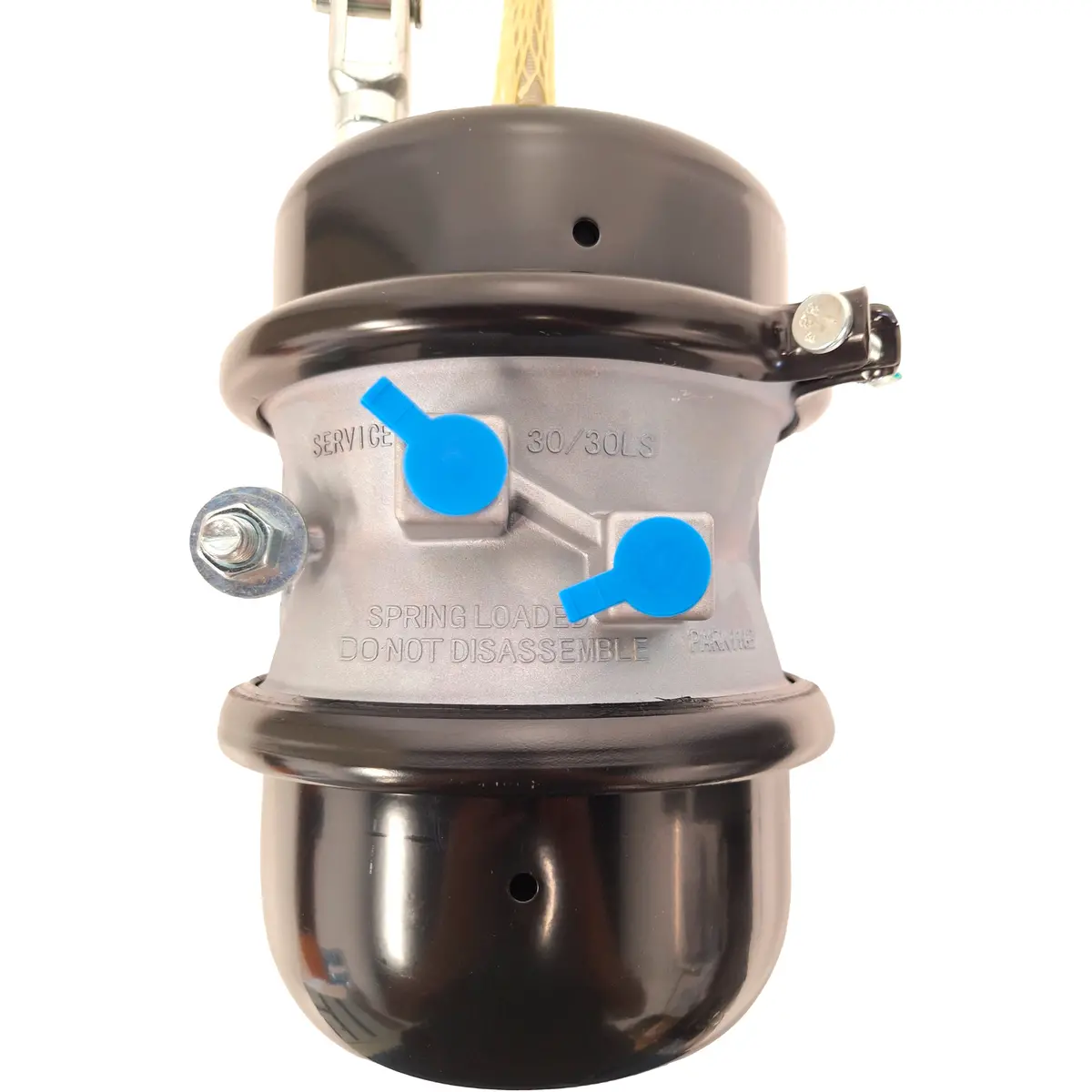

Fortpro F224797 Long-Stroke Air Brake Chamber – Model 3030

Description

Specifications

• Part Type: Air Brake Chamber
• Alternate Part Name: Brake Canister / Brake Can / Air Brake Canister
• Model: Type 3030, T30/30, 3030, 30 30
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Brake System Compatibility: S-Cam
• Brake Type: Drum
• Chamber Style: Double Diaphragm
• Chamber Type: Spring Brake Chamber
• Clevis Mounting Type: Threaded
• Emergency Port Thread Size: 3/8-18 NPTF
• Mounting Bolt Length: 1.48 in. (37.5 MM)
• Mounting Bolt Thread Size: 5/8-11 UNF-2A
• Outside Diameter (O.D.): 8.30 in.
• Push Rod Length: 8 in.
• Push Rod Thread Size: 5/8-18 UNF-2A
• Service Chamber Joint Type: Single Clamp Band
• Service Port Thread Size: 3/8-18 NPTF
• Clevis Yoke: Included
• Maximum Operating Pressure: 150 PSI
• Port Orientation: 90°
• Serviceability: Sealed
• Stroke Lenght: 3 in.
• Stroke Type: Long Stroke

Cross-references

• 1010476, 179.SB3030SL, 179SB3030SL, 3030CLW, 3230951, 3508360C91, E-GC3030L, EBC3030CEL, EGC3030L, GC3030L, GC3030LCW, HDX1373030059, NT3030ELS80, NT3030ELSWC, OTR3030SBLS, S17204
