Description
Fortpro F276108 Universal Joint SPL Type. Engineered as a professional aftermarket replacement for Spicer SPL170X in heavy-duty commercial drivelines. Built with high-strength materials to handle extreme torque loads. Features industry-standard dimensions for a perfect fit into SPL series spring tab yokes. The advanced sealing package ensures ultimate protection from grit and heat, supporting high cycles to failure and long-term reliability for heavy-duty vehicle fleets.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint
- OEM Part Number: SPL170X
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Series: SPL170
- Universal Joint Type: Spring Tab Style
- VMRS Code: 24002046
- Material: Steel
- Bearing Cap Diameter: 2.165 in.
- Bearing Cap Type: Round
- Snap Ring Type: SPRTAB
- Spring Tab Distance: 6.456 in.
- Grease Fitting Location: Center of Cross
- Greaseable: Yes
- Net Weight: 9.88 lb.

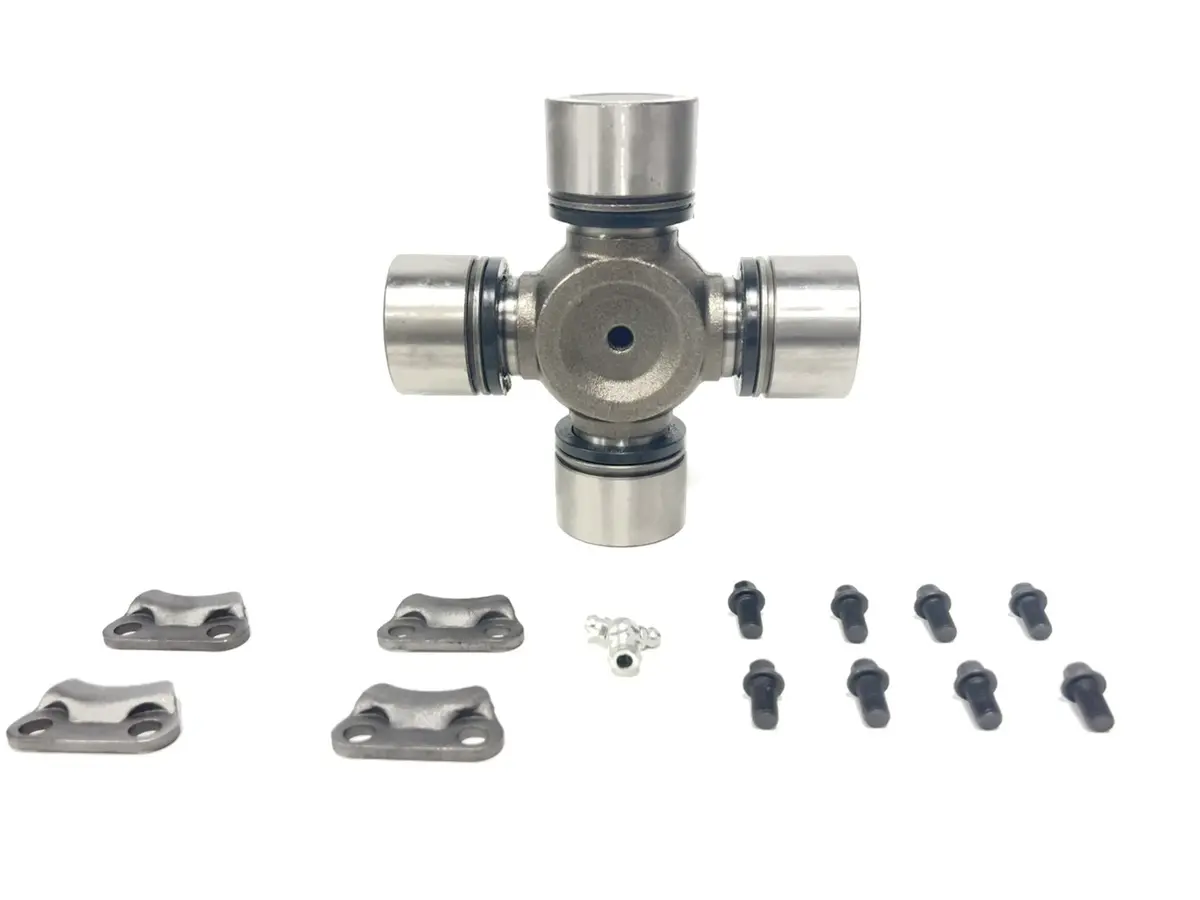

Bill Of Material
- 1 Universal Joint
- 4 Bearing Caps
- 8 Drive Shaft Bolt (4 M12 X 1.25 / M8 x 1.00in)
- 4 Spring Tab
- 1 Lube Fitting
- Verificar Imagen por cantidad de 4 Spring Tab??
Intended Application
- Designed for heavy duty driveshafts utilizing yokes specifically manufactured for the SPRTAB retention style. Manufactured for high-torque drivetrain applications, with a focus on heavy-duty commercial vehicles, buses, and industrial/off-highway machinery. Its greaseable design and SPRTAB Style (Spring Tab) retention system ensure maximum durability, fatigue resistance, and operating efficiency under severe loading and vibration co
