Description

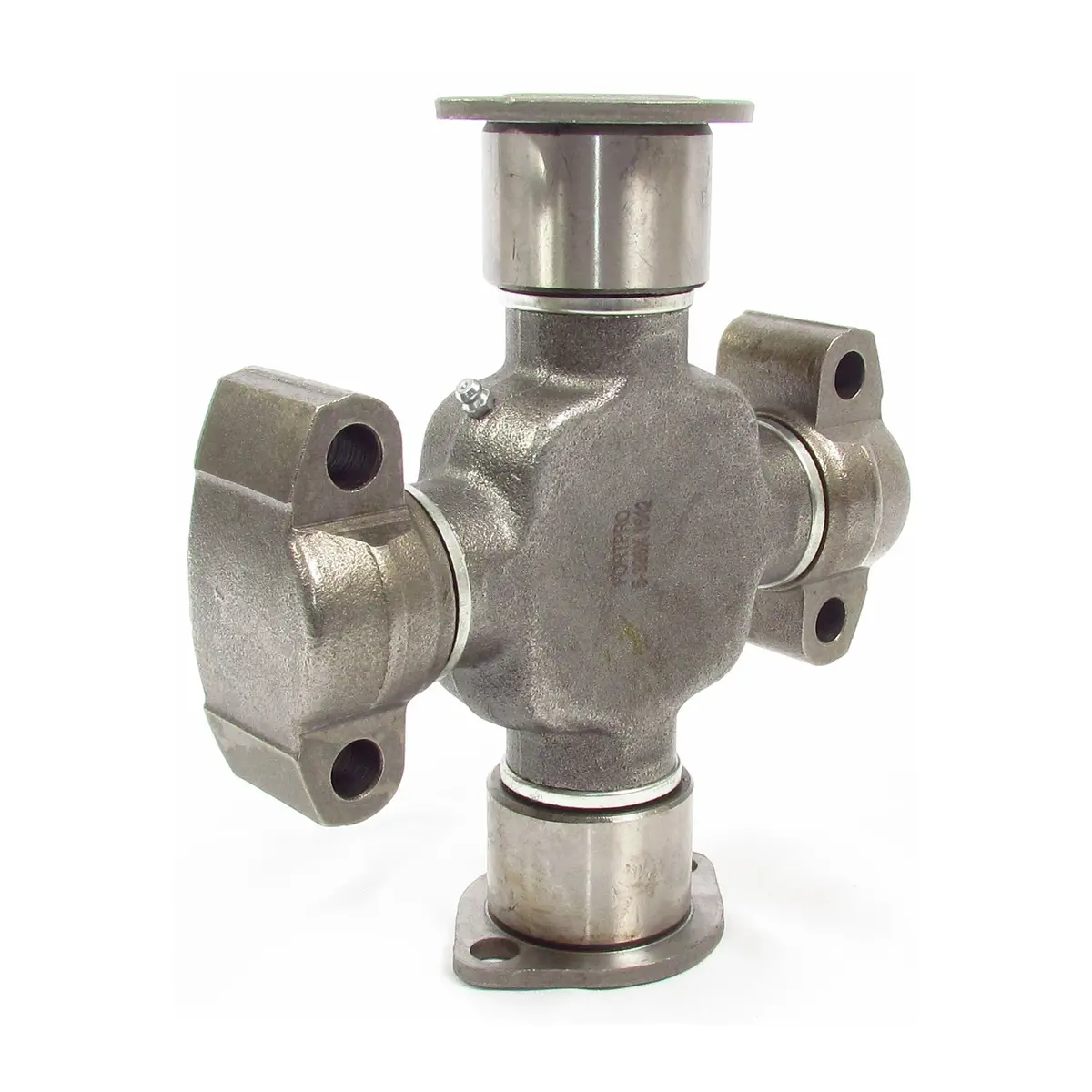

Fortpro F276116 Universal Joint. Engineered for extreme heavy-duty 1880 series applications, replacing Spicer 5-326X. Designed with 2.188″ bearing caps and an 8.094″ span for maximum torque capacity in specialized commercial yokes. Professional wing-style/bearing plate design provides secure retention for critical power transfer. Greaseable for long-term serviceability, this joint is built to handle massive loads while reducing vibration in large commercial equipment and long-haul shafts.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint, Bearing Plate Style, Wing Bearing Style
- OEM Part Number: 5-326X
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Pilot Diameter: 8.250 in.
- Series: 1880
- Universal Joint Type: Bearing Plate / Wing Bearing Style
- VMRS Code: 24002046
- Material: Steel
- Bearing Cap Diameter: 2.188 in.
- Center-to-Center Bearing Bolt Hole: 2.094 in.
- Cover Plate Center to Center Bolt Hole: 2.812 in.
- Cover Plate Type: 2 RND (Round Type), 2 HWD (Heavy Wing Type)
- Grease Fitting Location: Side of Cross
- Greaseable: Yes
- Net Weight: 15.87 lb.

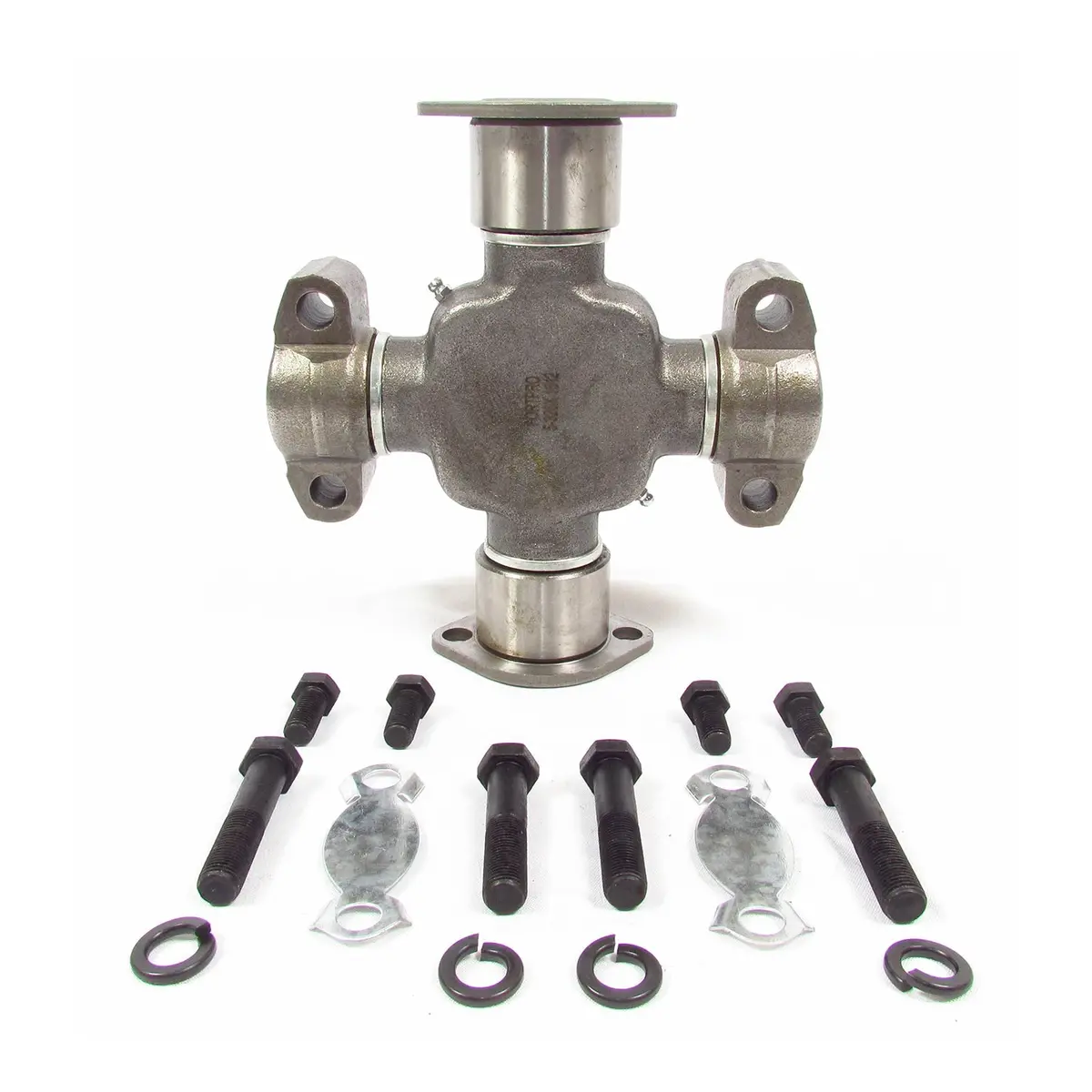

Bill Of Material
- 1 U Joint
- 4 Drive Shaft Bolt (Long)
- 2 Wing Bearing Straps
- 4 Drive Shaft Bolt (Shor)
- 4 Flat Washers
Intended Application
- Heavy-duty vehicles with Bearing Plate / Wing Bearing (BP/WB) style driveshafts, specifically the 1880 Series. Designed to act as a conversion crosshead allowing the coupling of a Bearing Plate style yoke with a Wing Bearing HWD style yoke in heavy-duty power transmission applications common in trucks, bu
