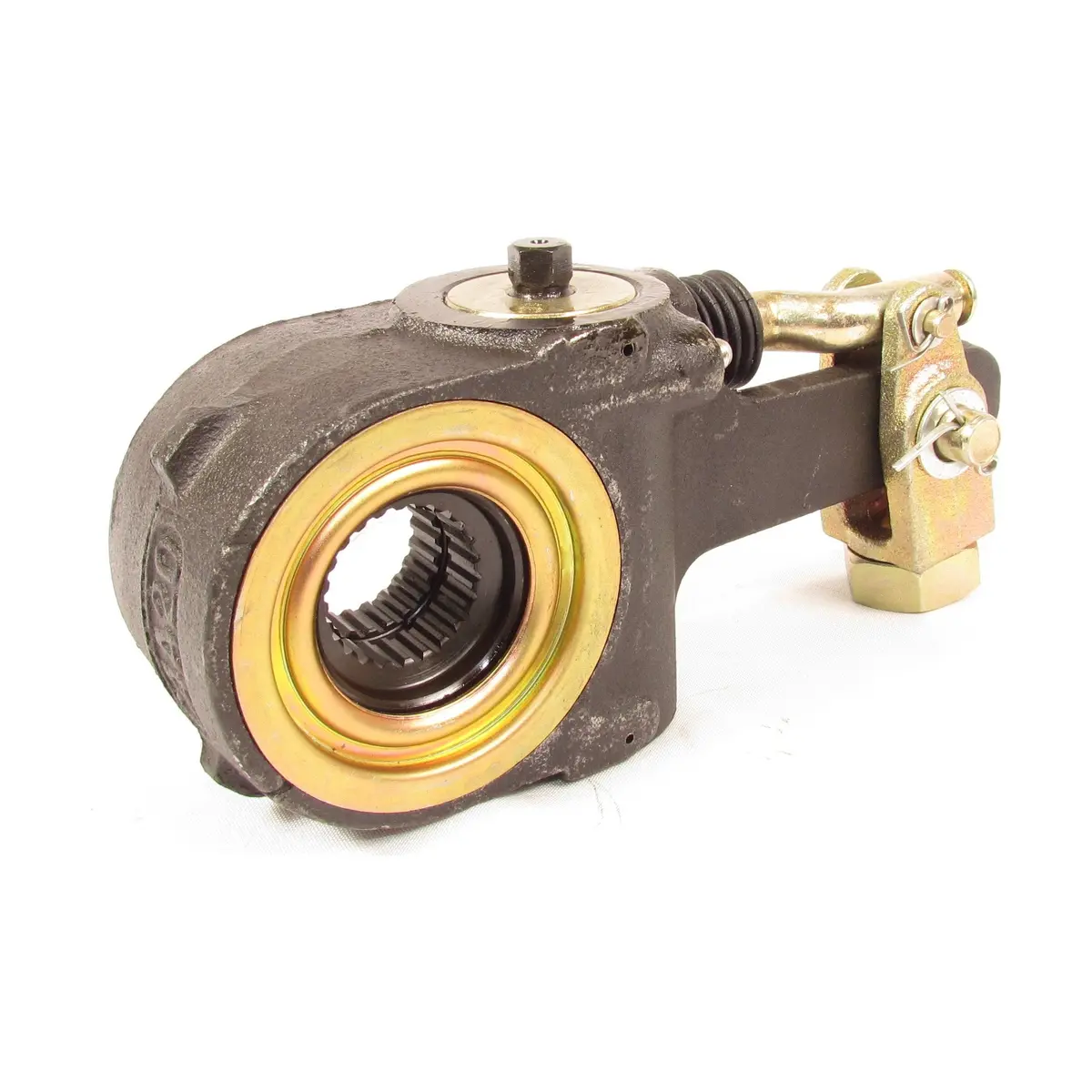

Fortpro Gunite-Style Automatic Slack Adjuster – 1 1/4″ Diameter, 24-Tooth Gear, 5 1/2″ Arm (Replaces AS1138, F225066)

Description

Specifications

• Product Line: Brakes
• Category Name: Slack Adjusters
• Part Type: Automatic Slack Adjusters
• Model: Gunite Style
• OEM Part Number: AS1138
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Compatible Brake Chamber Sizes: Multiple
• Clevis Type: Collar Lock Straight
• Material: Alloy Steel
• Arm Length Position 1: 5-1/2 in.
• Arm Offset: No Offset
• Body Inclination Angle: 0 deg.
• Clevis Thread Diameter: 1/2-20 UNF-2B
• Slack Spline Count: 24
• Slack Spline Diameter: 1-1/4 in.
• Maximum Operating Temperature: 158 deg. F (70 deg. C)
• Maximum Torque: Less than 15 foot pounds
• Minimum Operating Temperature: (-40 deg. F) (-40 deg. C)
• Operation Type: Tension Adjuster – Torque

Cross-references

• 05772, 065274, 1382410, 3398AS1038, 40010073, 5772, 65167, 6814100849, AS1138, E-15022, E15022, ZBRAS1038
