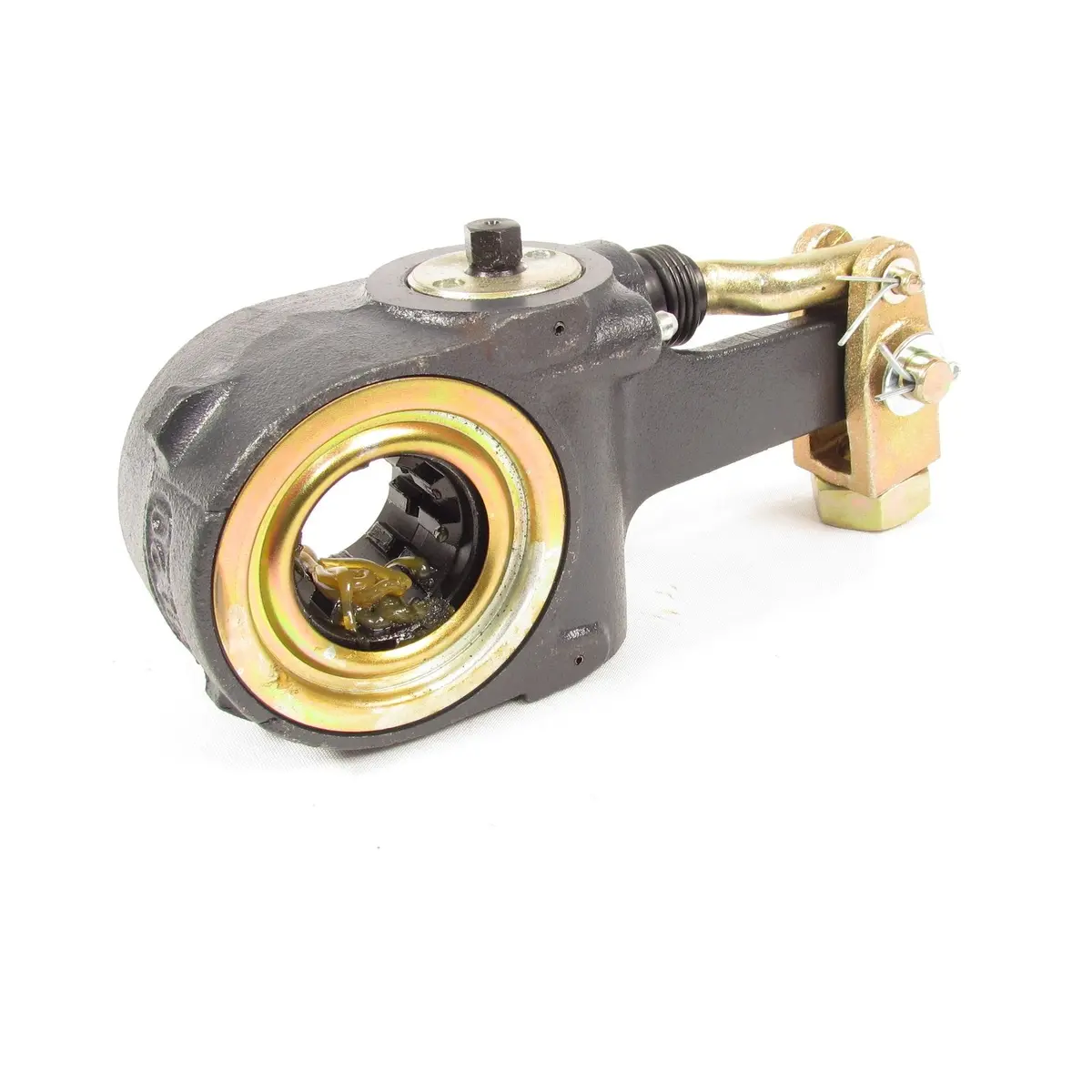

Fortpro Gunite-Style Slack Adjuster – 1 1/2″ Diameter, 10-Tooth Gear, 5 1/2″ Arm (Replaces AS1132, F225061)

Description

Specifications

• Product Line: Brakes
• Category Name: Slack Adjusters
• Part Type: Automatic Slack Adjusters
• Model: Gunite Style
• OEM Part Number: AS1132
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Compatible Brake Chamber Sizes: T-30 Std or T-16/T-24 Long Stroke
• Clevis Type: Straight
• Material: Alloy Steel
• Arm Length Position 1: 5-1/2 in.
• Arm Offset: No Offset
• Body Inclination Angle: 0 deg.
• Clevis Thread Diameter: 5/8-18 UNF-2B
• Slack Spline Count: 10
• Slack Spline Diameter: 1-1/2 in.
• Maximum Operating Temperature: 158 deg. F (70 deg. C)
• Maximum Torque: 20.000 In./Lbs.
• Minimum Operating Temperature: (-40 deg. F) (-40 deg. C)
• Operation Type: Tension Adjuster – Torque

Cross-references

• 1381011, 25QD51P2, 400-10005, 40010005, 5361, AS1132, E11398, K041870, MK41100S, R801041
