Description
Fortpro F276111 Universal Joint. Specifically engineered for 1000 series drivelines, replacing Spicer 5-170X and 5-103X. Optimized for steering shafts and PTO applications requiring precise motion control. Features high-quality internal bearings for smooth rotation and reduced wear. The inside snap ring style provides secure retention for 0.938″ diameter bearing caps. Durable construction ensures safety and performance in compact power transfer and mechanical linkages.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint
- OEM Part Number: 5-170X
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Series: 1000
- Universal Joint Type: Inside Snap Ring Style
- VMRS Code: 24002046
- Material: Steel
- Bearing Cap Diameter: 0.938 in.
- Bearing Cap Type: Round with OSR Groove
- Cross Length: 2.065 in.
- Outside Snap Ring to Snap Ring: 2.080 in.
- Snap Ring Type: Internal
- Trunnion Diameter: 0.549 in.
- Grease Fitting Location: Center of Cross
- Greaseable: Yes
- Net Weight: 0.66 lb.

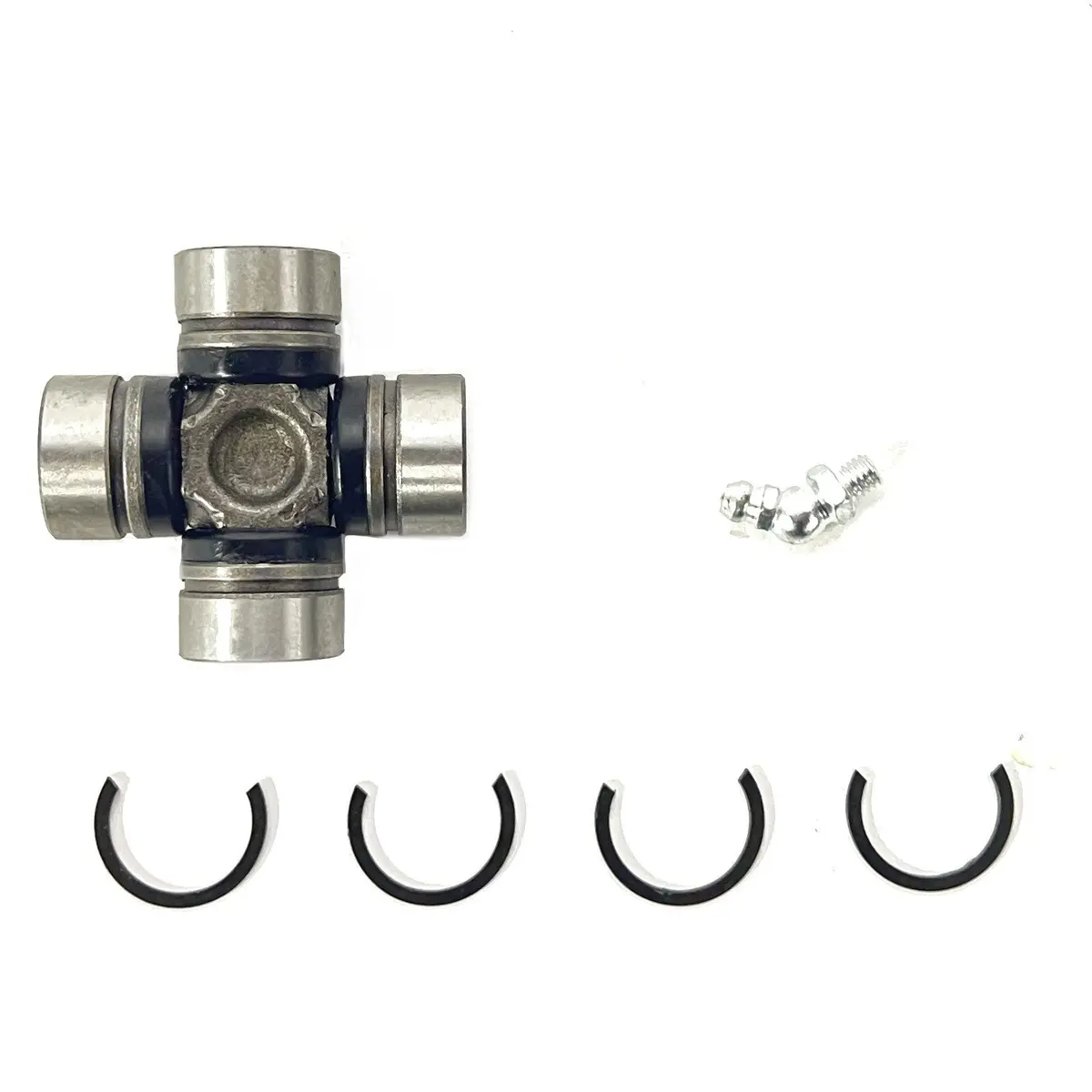

Bill Of Material
- 1 Universal Joint
- 4 Bearing Caps
- 4 Snap Ring
- 1 Lube Fitting
Intended Application
- Designed for efficient power transmission between shafts with angular misalignment. With a bearing cup diameter of 0.938 in (23.825 mm) and an internal circlip distance of 1.500 in (38.1 mm), its main applications are in power take-off (PTO Power Take-Off) systems on agricultural equipment, on driveshafts of light and off-road vehicles, and in some steering systems, ensuring torque transmission under conditions of bending and relative
