Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

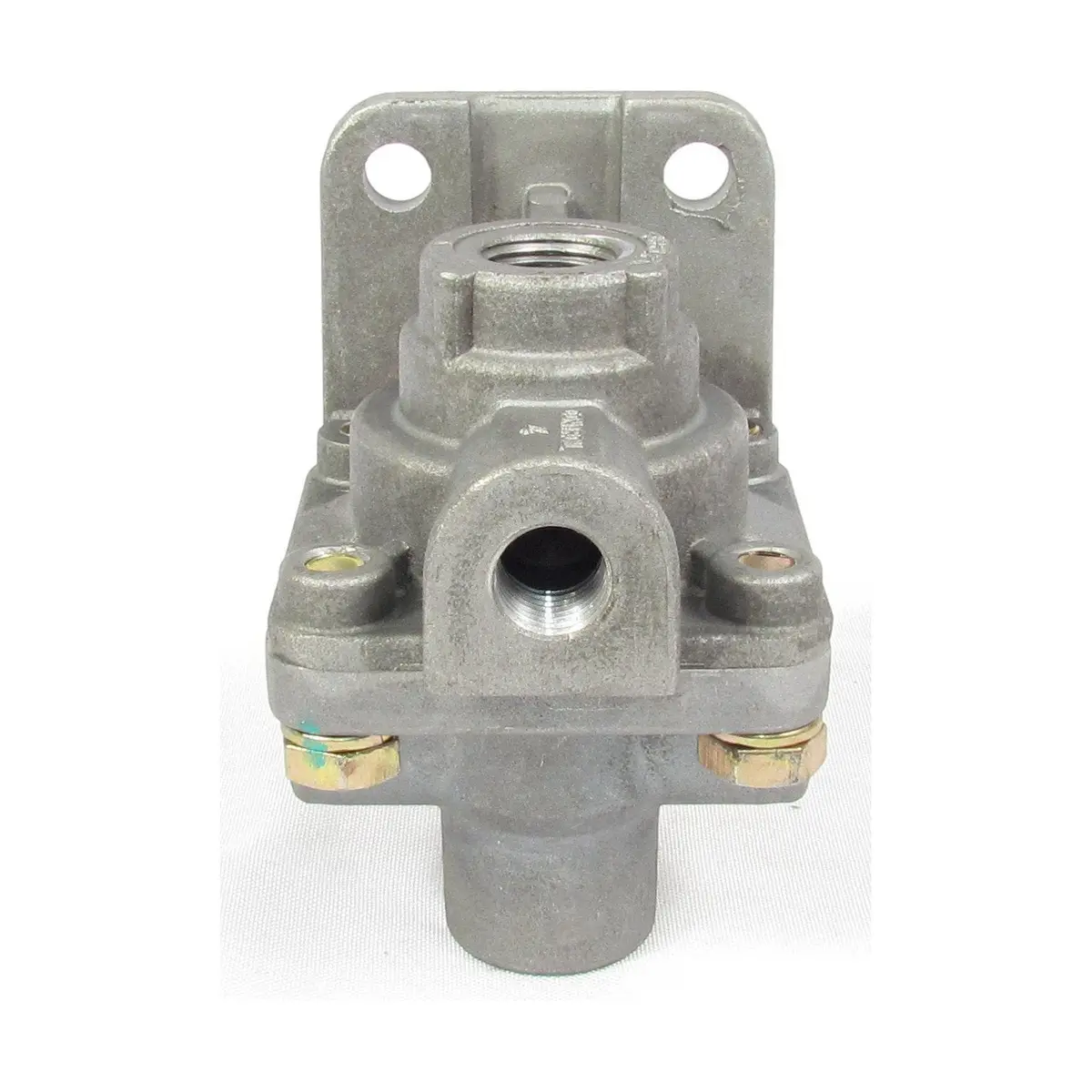

- Part Type: Front Axle Valve
- Alternate Part Name: Pressure Proportioning Valve, Limiting & Quick Release Valve
- Model: LQ-2
- OEM Part Number: 229505
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Compatible Repair Kit Part Number: F224624
- Control Port Size: 1/4-18 NPT
- Delivery Port Orientation (CW from Mounting): 90 deg. / 270 deg.
- Delivery Port Qty: 2
- Delivery Port Size: 3/8-18 NPT
- Exhaust Port: Open
- Mounting Hole Qty: 2
- Mounting Hole Size: Ø .34 in.
- Supply Port Size: 3/8-18 NPT
- Material: Die-cast Zinc
- Limiting Ratio: 50% Limited Delivery
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Net Weight: 1.16 lb.
Intended Application
- Standard
- Dual-function valve used on the front axle of heavy commercial vehicles such as trucks and buses with air brake systems. Its main application is to modulate front brake pressure and improve system response under various road conditions.
Cross-references
- 124449R, 170229505, 20QE236A, 229505, 229505N, 229505RX, 229505X, 471209C, 745-22950, 74522950, BXOR229505, EBN229505N, EM56970, LQV-5697, LQV5697, OR229505, OR229505X, R955229505N
