Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

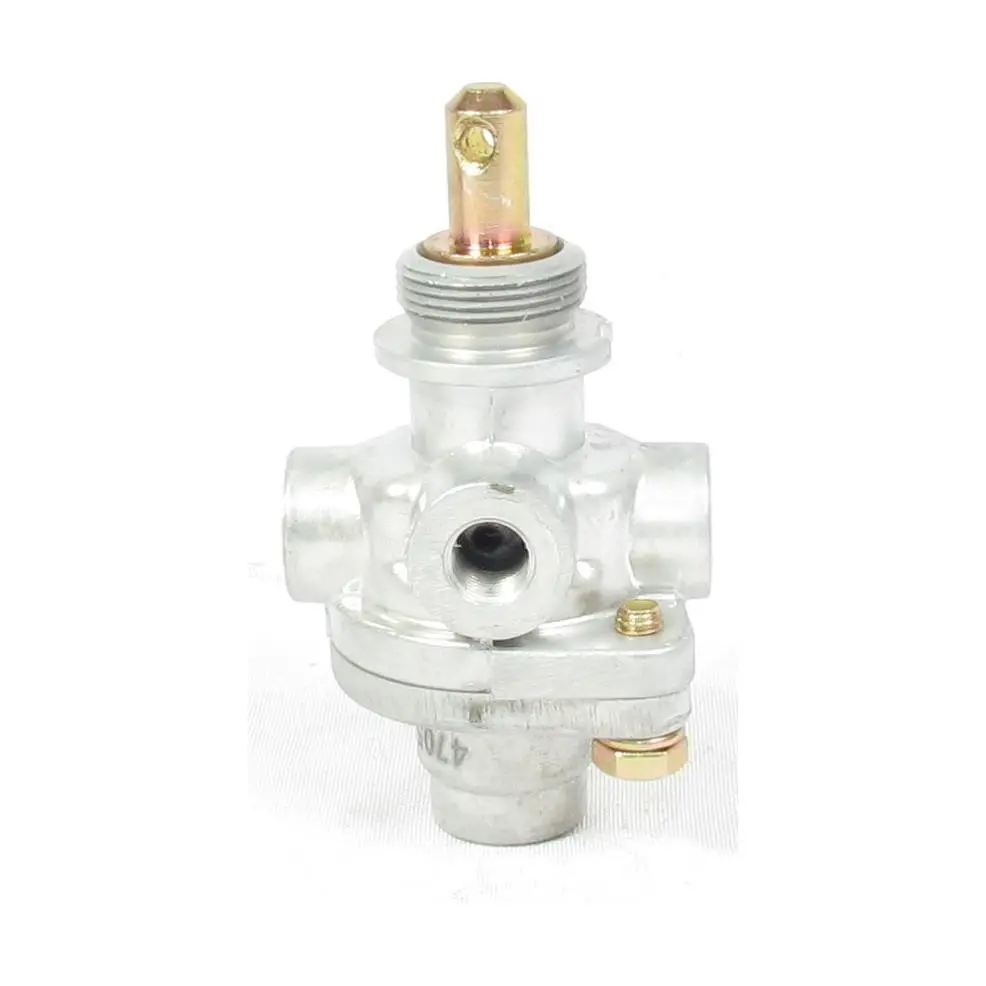

- Part Type: Push Pull Valve
- Alternate Part Name: Control Valve
- Model: PP-1
- OEM Part Number: 276567
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Delivery Port Qty: 2
- Delivery Port Size: 1/8-27 NPT
- Exhaust Port Size: 1/8-27 NPT
- Mounting Hole Size: 7/8-20 UNEF-2A
- Supply Port Size: 1/8-27 NPT
- Material: Die-cast Zinc
- Knob Included: No
- Mounting Nut Included: No
- Plunger / Button Height: 1.16 in.
- Plunger Diameter: Ø .374 in.
- Automatic Release Pressure: 40 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Net Weight: 0.62 lb.
Intended ApplicationAir brake systems for trucks and commercial vehicles. This is a manually operated push-pull valve, allowing on-off control of air flow with an exhaust function.Used in applications where reliable air control is required, such as parking and auxiliary brake systems on trucks and trailers.
Cross-references
- 170276567, 276567, 276567N, 276567RX, 38597C91, 745-276567N, 745276567N, AV276567, EBN276567N, EM36190, KN20021, KN20021N, LPP-3619, OR276567, OR276567X, R955276567N
