Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

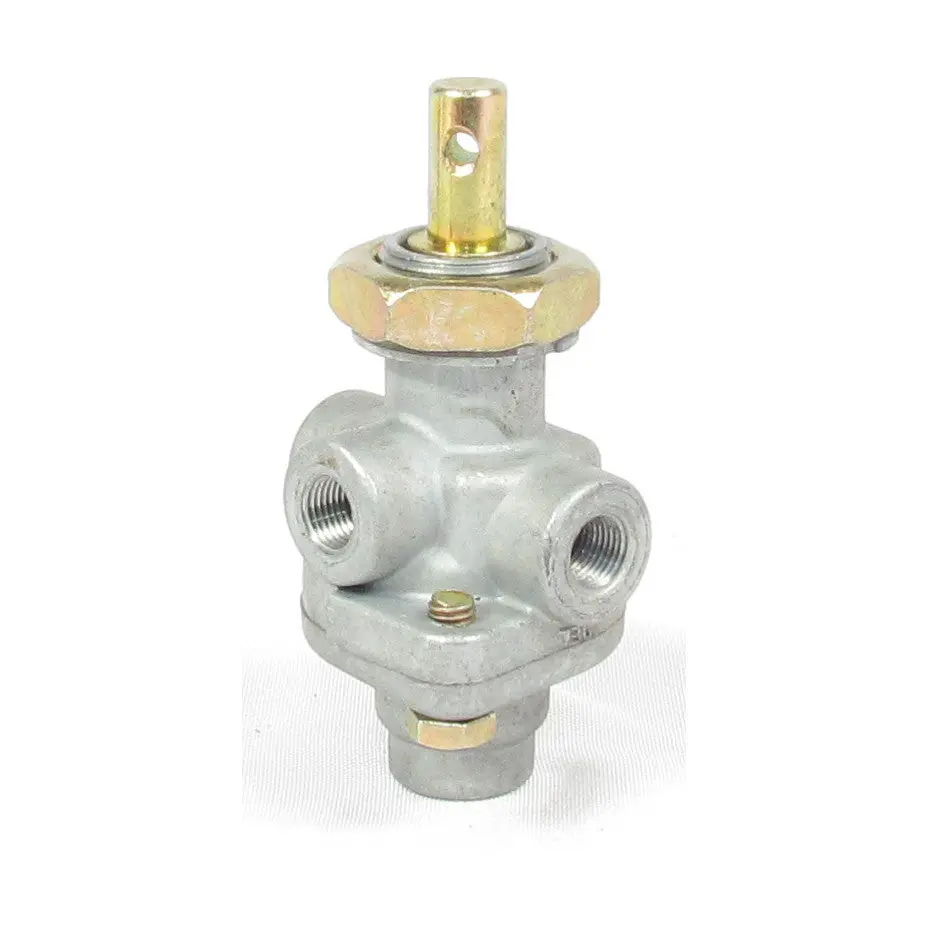

- Part Type: Push Pull Valve
- Alternate Part Name: Control Valve
- Model: PP-1
- OEM Part Number: 276566
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Delivery Port Qty: 2
- Delivery Port Size: 1/8-27 NPT
- Exhaust Port Size: 1/8-27 NPT
- Mounting Hole Size: 7/8-20 UNEF-2A
- Supply Port Size: 1/8-27 NPT
- Material: Die-cast Zinc
- Knob Included: No
- Mounting Nut Included: Yes
- Plunger / Button Height: 1.16 in.
- Plunger Diameter: Ø .374 in.
- Automatic Release Pressure: 20 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Net Weight: 0.66 lb.
Intended ApplicationAir brake systems for trucks and commercial vehicles. This is a manually operated push-pull valve, allowing on-off control of air flow with an exhaust function.Used in applications where reliable air control is required, such as parking and auxiliary brake systems on trucks and trailers.
Cross-references
- 170276566, 276566, 276566N, 276566RX, 745-276566N, 745276566N, AV276566, EBN276566N, EM35920, FLTBV566, KN20021, KN20021N, LPP-3592, OR276566, OR276566X, R955276566N
