Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

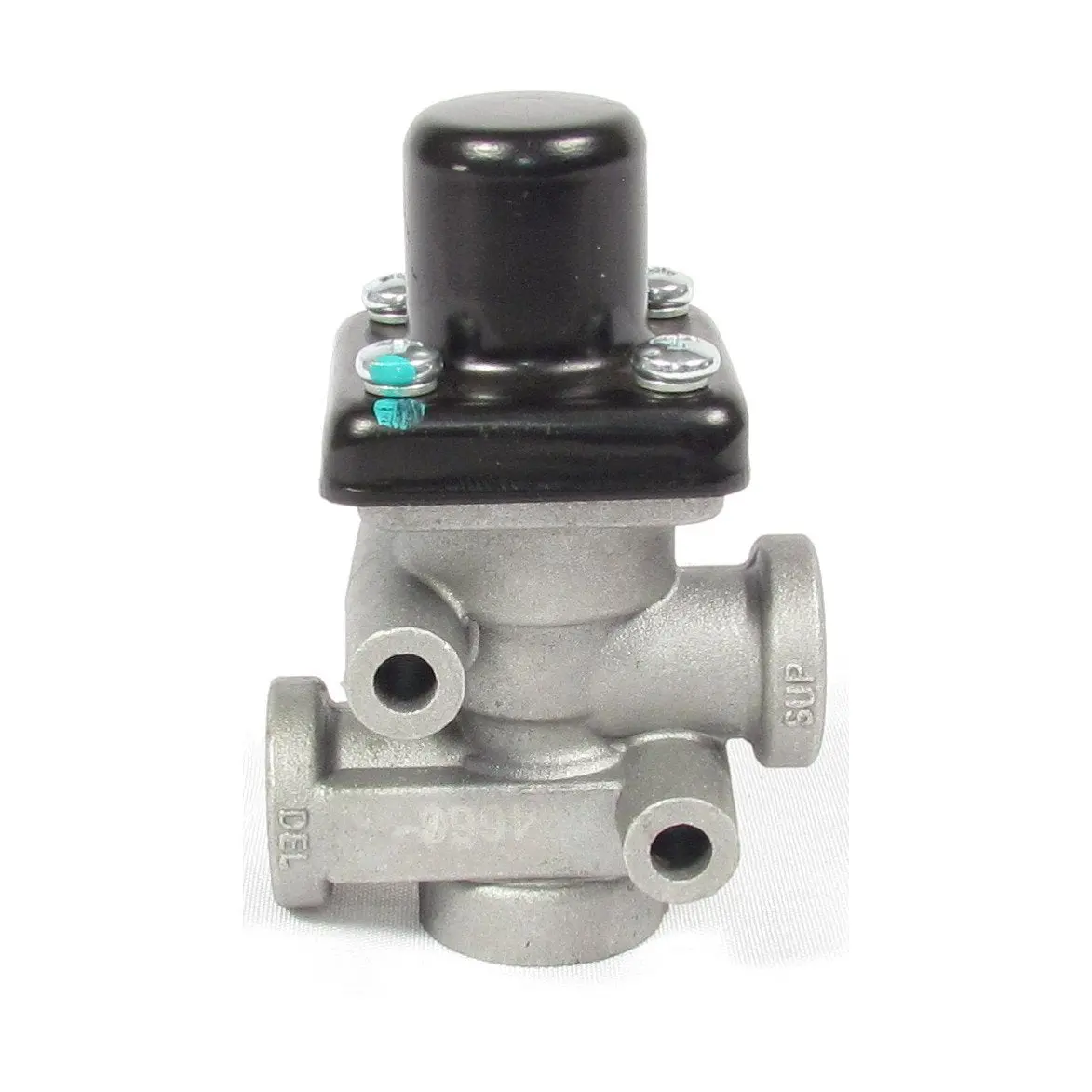

- Part Type: Pressure Protection Valve
- Model: PR-4
- OEM Part Number: 286500
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Delivery Port Qty: 1
- Delivery Port Size: 1/4-18 NPT
- Mounting Hole Qty: 2
- Mounting Hole Size: Ø .280 in.
- Supply Port Size: 1/4-18 NPT
- Material: Die-cast Zinc
- Adjustment System: Non-Adjustable
- Closing Pressure: 85 ± 5 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Net Weight: 0.74 lb.
Intended Application
- Protection of air suspension systems and other auxiliary pneumatic accessories on trucks and trailers.
- Control of pneumatic door systems on buses and commercial vehicles.
- Air regulation in pneumatic power steering systems.
Cross-references
- 1676732C1, 1702865, 286500, 287827, 745-286500N, 745286500N, E-BN286500N, EBN286500N, EM-55460, EM55460, KN31010, LPR-5546, LPR5546, OR286500, R955286500N
