Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

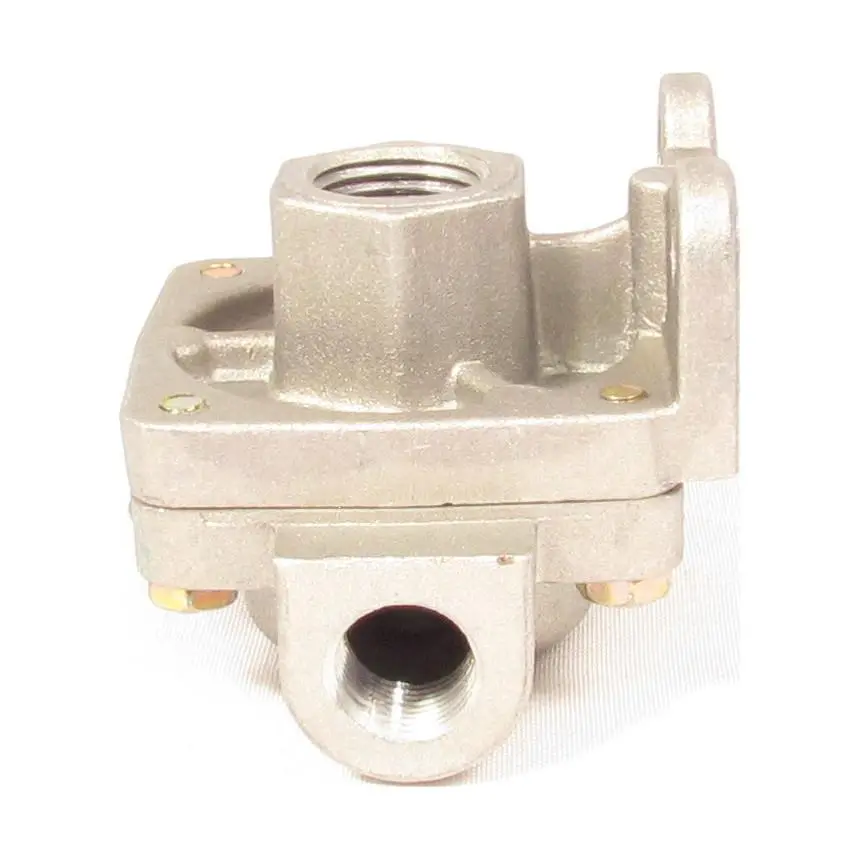

- Part Type: Quick Release Valve
- Model: QR-1
- OEM Part Number: 229860
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Compatible Repair Kit Part Number: F224627
- Delivery Port Qty: 2
- Delivery Port Size: 3/8-18 NPT Female
- Exhaust Port: Open
- Mounting Hole Qty: 2
- Mounting Hole Size: Ø .34 in.
- Supply Port Size: 1/2-14 NPT Female
- Material: Die-cast Aluminum
- Differential Pressure: 0 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -50 deg. F (-45 deg. C)
- Zero Hysteresis: Yes
- Net Weight: 0.72 lb.
Intended Application
- Optimization of air brake systems in trucks and trailers
- Quick release of air in service brakes of tractors, semi-trailers and buses.
- Installs near brake chambers to reduce pressure release time.
- Compatibility with ABS and standard brake systems – Can be integrated into different air brake configurations.
Cross-references
- 1008, 10229860, 170229860, 20QE2183, 229860, 229860N, 229860RX, 229860X, 314815C91, A9860, EBN229860N, EM36580, KN32011N, KN32011X, LOV3658, OR229860, OR229860X, R955229860N
