Description
Specifications

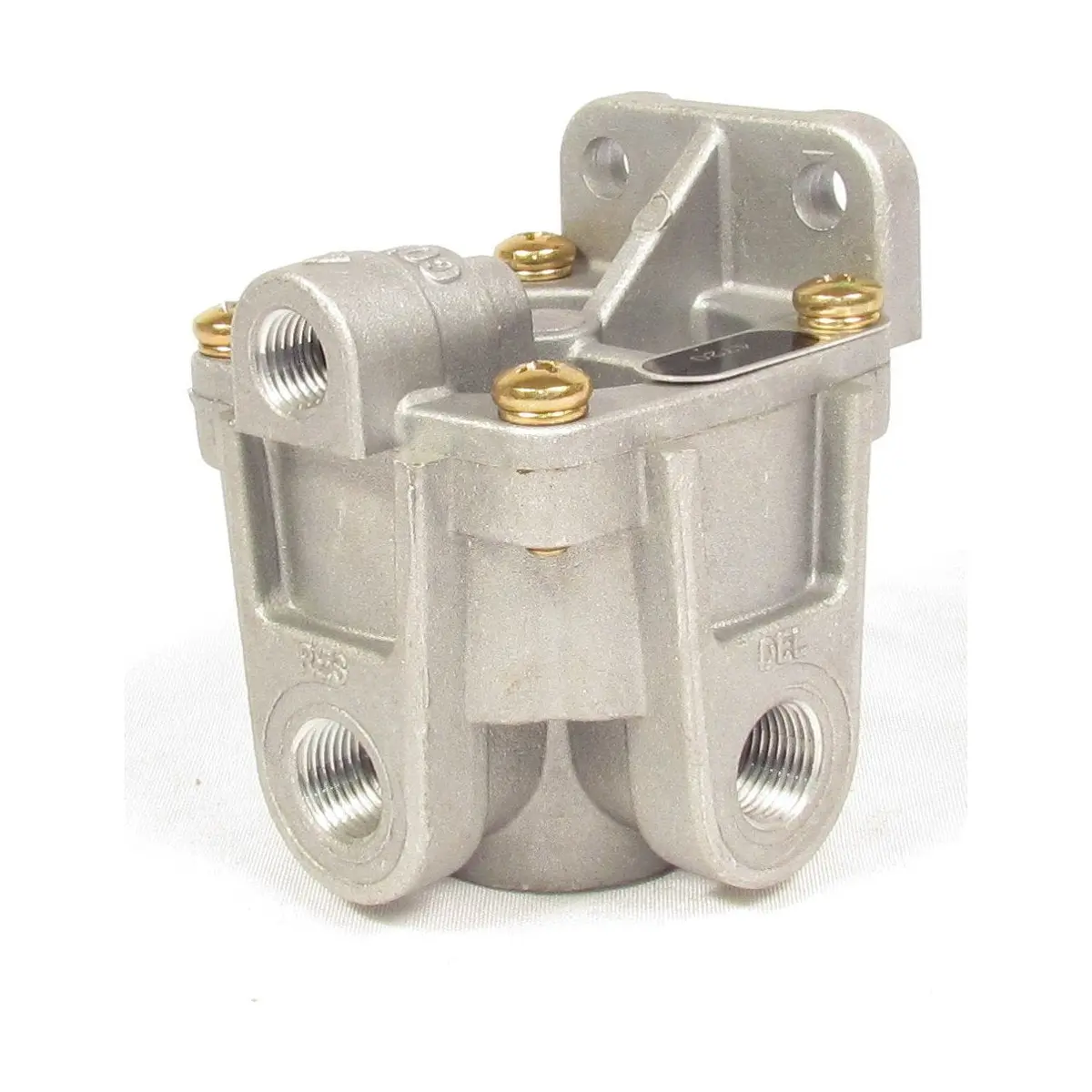

- Product Line: Brakes
- Category Name: Air Brake Valves
- Part Type: Relay Valve
- Model: RG2
- OEM Part Number: KN28500
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Compatible Repair Kit Part Number: F224643
- Control Port Size: 1/4-18 NPT
- Delivery Port Qty: 2
- Delivery Port Size: 3/8-18 NPT
- Mounting Hole Qty: 2
- Mounting Hole Size: 0.34 in.
- Supply Port Size: 3/8-18 NPT
- Supply Port Qty: 2
- Material: Die-cast Aluminum
- Control Port Orientation: 90 deg.
- Crack Pressure: 6.0 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Net Weight: 1.24 lb.
Intended Application
- Air brake systems for heavy vehicles: Fast relay used to apply and release service brakes on tractor or trailer.
Cross-references
- 170.KN28500, 170KN28500, 459790C91, 5396-KN28500, 5396KN28500, EM36370, EMDKN28500N, KN28500, KN28500N, KN28500X, LRV3637, R955KN28500N, S9732880040, ZZKN28500X
