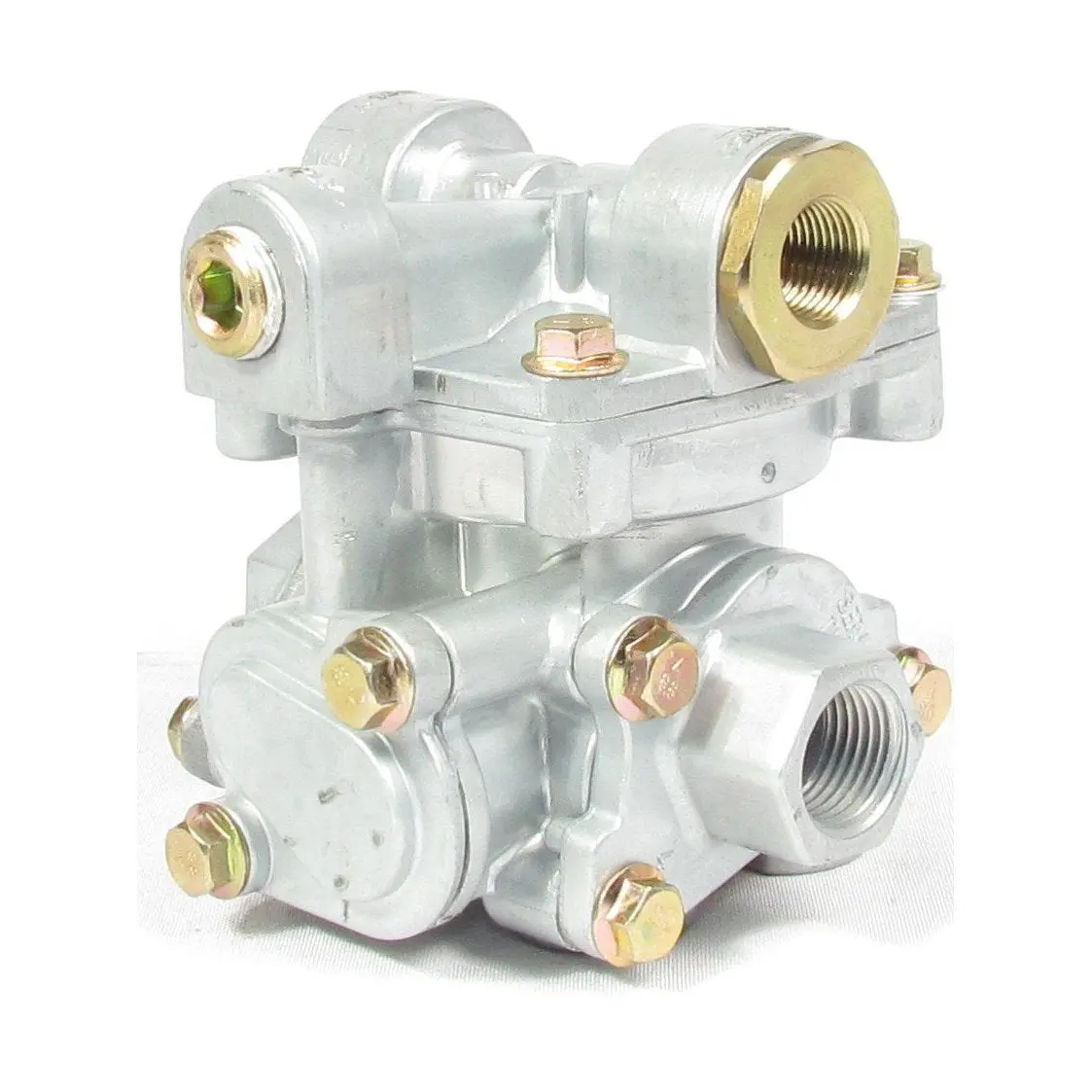

Fortpro RT-4 Multifunction Trailer Control Valve – Direct Replacement for Haldex KN26000 | F224790

Description

Specifications

• Product Line: Brakes
• Category Name: Air Brake Valves
• Part Type: Trailer Valve
• Alternate Part Name: Multi-Function Trailer Valve
• Model: RT-4
• OEM Part Number: KN26000
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Control Port Size: 3/8-18 NPT
• Delivery Port Qty: 4
• Delivery Port Size: 3/8-18 NPT
• Reservoir Port Size: 3/8-18 NPT, 1/2-14 NPT
• Supply Port Size: 3/8-18 NPT
• Supply Port Qty: 2
• Material: Die-cast Aluminum
• Closing Pressure: 55 psi
• Net Weight: 4.64 lb.

Intended Application

• Used on trailers to control both parking and emergency brake functions.
• Controls reservoir charging.
• Applies emergency (parking) brakes upon loss of trailer supply (emergency) line pressure.
• Meets all FMVSS-121 trailer requirements for spring brake control and other regulations prior to Oct. 8, 1992.
• Interchangeable with competitive units.

Cross-references

• 170.KN26000, 170KN26000, 5396-KN26000, 5396KN26000, EM40760, FTV4076, KN26000, KN26000N, KN26000RX, R955KN26000N, ZZKN26000N
