Description
Specifications
- Product Line: Suspension
- Category Name: Chassis & Suspension
- Part Type: Rotating Bar PIN Bushing Kit
- Alternate Part Name: Bar Pin Bush, Bar Pin Bushing Kit Shim Type, End Bushing Kit Shim Type, Bar Pin Bushing Kit
- OEM Part Number: 34013-088L
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Bolt Hole Diameter: 1 in.
- Mounting Position: Rear Suspension
- Mounting Type: Straddle

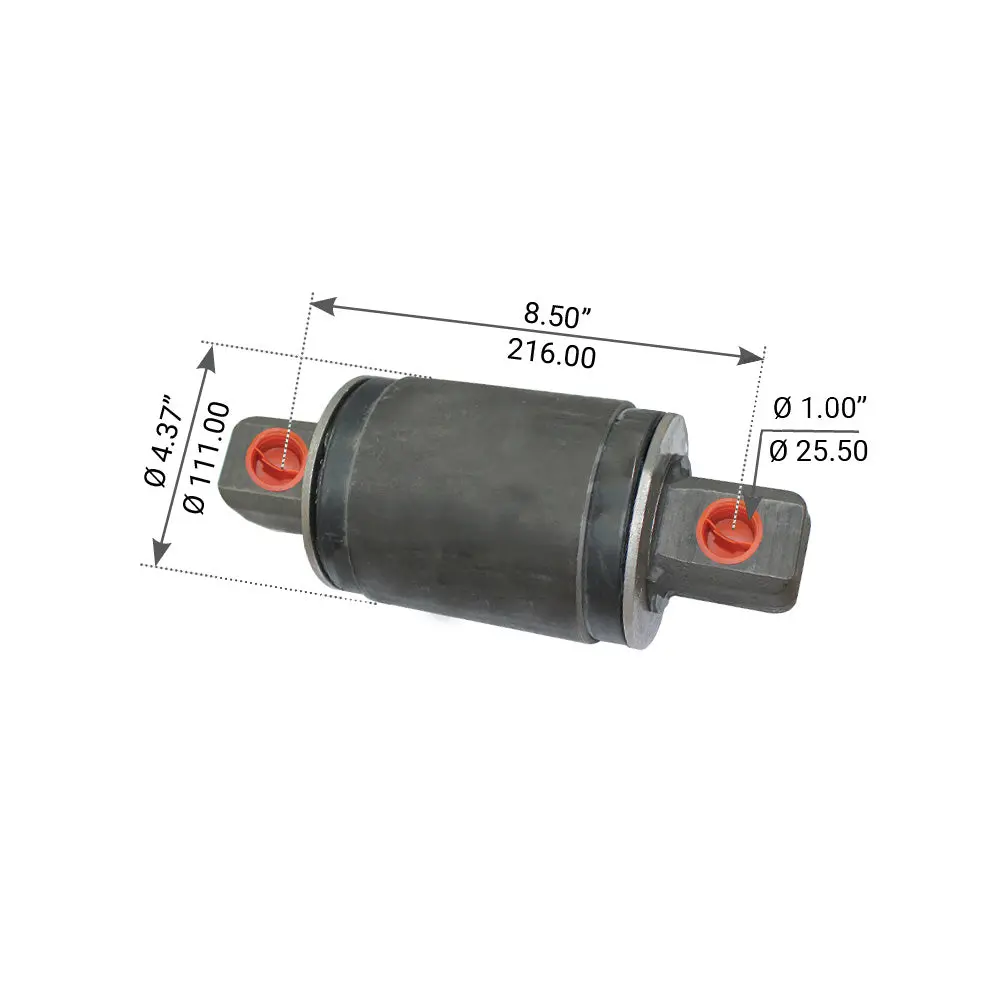

- Outside Diameter (O.D.): 4-3/8 in.
- Material: Vulcanized Rubber, Carbon Steel.
- Distance Between Bolt Holes: 8-1/2 in.
- Package Length: 6.00 in.
- Package Width: 13.00 in.
- Package Height: 7.00 in.
- Net Weight: 20.82 lb.
Bill Of Material“
- Bar Pin End Bushing Rotating (Shim Type) pcs x 1
- Alignment Shim pcs x 4
- 1″”-8 UNC x 6″” Hex Bolt pcs x 2
- 1 “” Hardened Washer pcs x 4
- I131″”-8 UNC Locknut pcs x 2
“
Intended Application
- Compatible with Ridewell Rear RD202B, RD202C and RD202S (Load Cushion) suspensions.
- Compatible with Hendrickson RT/RTE 340/460 Walking Beam (Rear Suspension), RT/RTE 480/520 Walking Beam (Rear Suspension), Haulmaax 400/460 (Rear Suspension), HN 402/462/522 (Rear Suspension) and R 460/463, RS 400/403 (Rear Suspension); Compatible with Meritor Air Link MWA Series.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
Cross-references
- 20859, 334831, 34013088, 750332, BP200, BP200HE, R309326
