Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

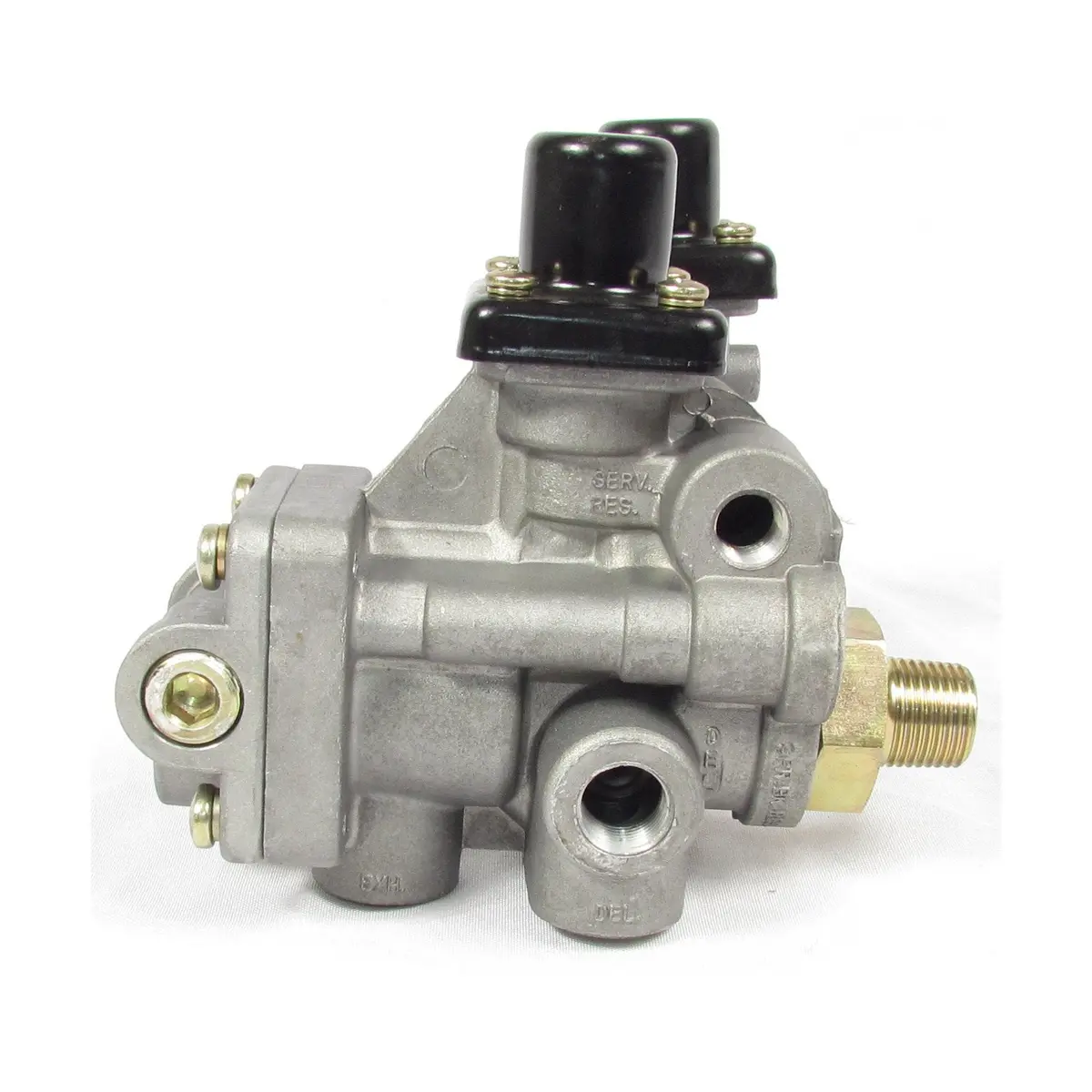

- Part Type: Spring Brake Valve
- Alternate Part Name: Trailer Spring Brake Valve
- Model: SR-4
- OEM Part Number: 101622
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Delivery Port Qty: 4
- Delivery Port Size: 3/8-18 NPT
- Exhaust Port Size: Dust Shield
- Reservoir Port Qty: 2
- Reservoir Port Size: 1/4-18 NPT
- Spring Brake Reservoir Supply Port: 1/2-14 NPT
- Supply Port Size: 1/4-18 NPT
- Trailer Service Port Size: 1/4-18 NPT
- Material: Die-cast Zinc
- Brake Charging Priority: Service Brake Priority
- Check Valve Included: Yes
- Closing Pressure: 60 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Pressure Protection Valve Included: Yes
- Net Weight: 3.55 lb.
Intended Application
- Designed for heavy duty truck trailers and semi-trailers equipped with air brake systems, to control the release and application of spring brakes.
Cross-references
- 101622, 101622N, 101622RX, 101622X, 170101622, 745-101622, 745101622, 9738840010, AV101622, EM56630, OR101622, OR101622X, R955101622, S9738840010
