Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

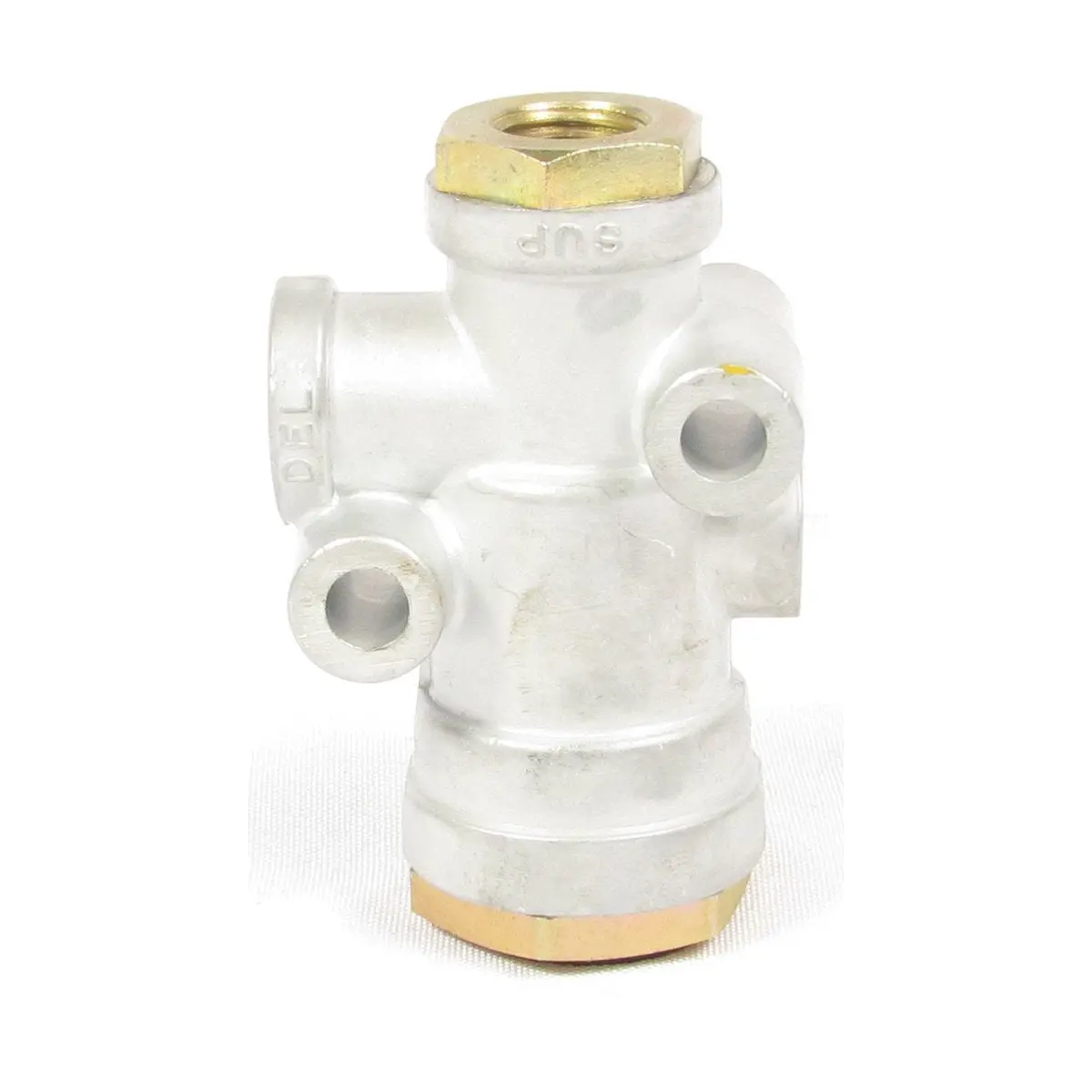

- Part Type: Inversion Valve
- Alternate Part Name: Brake Inversion Valve, Air Inversion Control Valve, Inversion Control Valve, Air Brake Inversion Valve
- Model: TR-3
- OEM Part Number: 281459
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Control Port Size: 1/8-27 NPT
- Delivery Port Size: 1/4-18 NPT
- Exhaust Port Size: Dust Shield
- Mounting Type: Ø .280 in. x 2
- Supply Port Size: 1/4-18 NPT
- Material: Die-cast Zinc
- Exhaust Opening Ascending Pressure(CON / SUP): 40 psi
- Inlet Opening Descending Pressure (CON / SUP): 25 psi
- Inlet Opening Pressure (Const. SUP / Var. CON): 8 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Net Weight: 0.64 lb.
Intended Application
- Used on trucks, buses and trailers that require safe control of spring brakes in the event of a pressure failure in the system.
- Allows the spring brakes to remain disengaged when there is sufficient air pressure in the system. If the system pressure falls below a critical threshold, the valve reverses its operation and automatically activates the parking brakes.
Cross-references
- “1617036C91, 170281459, 20QE2123R, 281459, 281459N, 281459X, LIV-5635; EM56350, LIV5635; EM56350, TV281459”
