Description

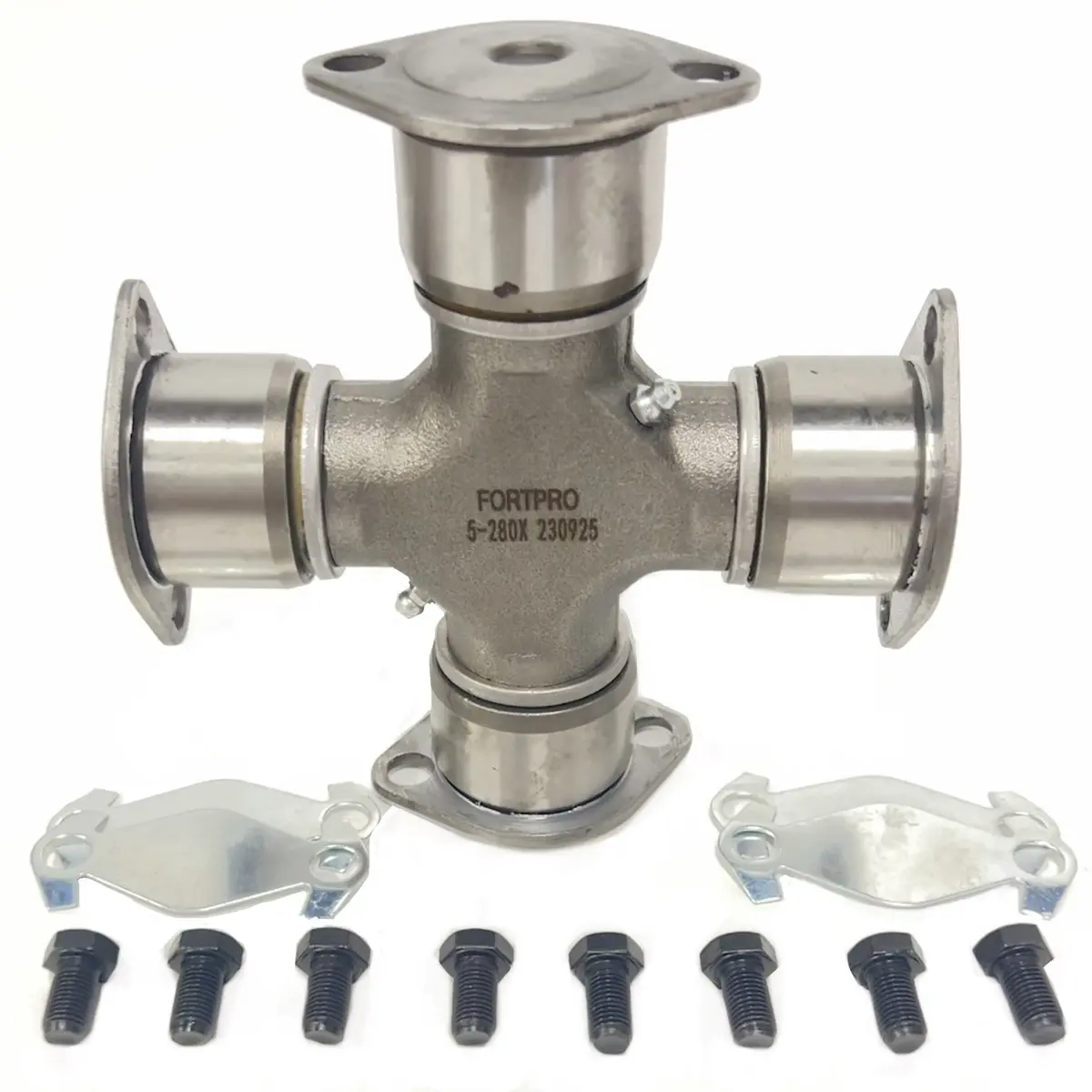

Fortpro F276113 Universal Joint. Professional aftermarket replacement for Spicer 5-280X in heavy-duty 1710 series applications. Features precision-engineered bearing plates for secure attachment to full-round yokes. Built to handle extreme torque loads while maintaining driveline stability. The greaseable design ensures long-term reliability through regular maintenance. Direct dimensional matching ensures a perfect fit, eliminating vibrations and metallic clunking for commercial vehicle fleets.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint
- OEM Part Number: 5-280X
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Series: 1710
- Universal Joint Type: Bearing Plate Style
- VMRS Code: 24002046
- Material: Steel
- Bearing Cap Diameter: 1.938 in.
- Cross Length: 5.635 in.
- Distance Between Bolt Holes: 2.437 in.
- Trunnion Diameter: 1.363 in.
- Grease Fitting Location: Side of Cross
- Greaseable: Yes
- Net Weight: 8.51 lb.
Bill Of Material
- 1 U Joint
- 8 Drive Shaft Bolt
- 4 Bearing Cap Assy
- 4 Universal Joint Strap
Intended Application
- Heavy commercial vehicles using 1710 series Full Round type driveshafts.
Cross-references
- 121684R92, 15-280X, 15280X, 201SJ14, 201SJ25, 21584R92, 2196041, 2198041, 2222853, 231009, 2322138, 2370733, 240155R91, 24185, 25-280X, 25280X, 3820254, 5-280X, 5021105, 509047R91, 5200AG, 5280X, 6051160Y, 637366C91, 695232, 697689R91, 702129, 721453, 7525280X, C6TZ4635F, CP280X, D3TZ4635B, D62, K516, K5GB160, M280X, US280X, 5-279X, 5-281X, 5-407X, 5279X, 5281X, 5407X
