Description

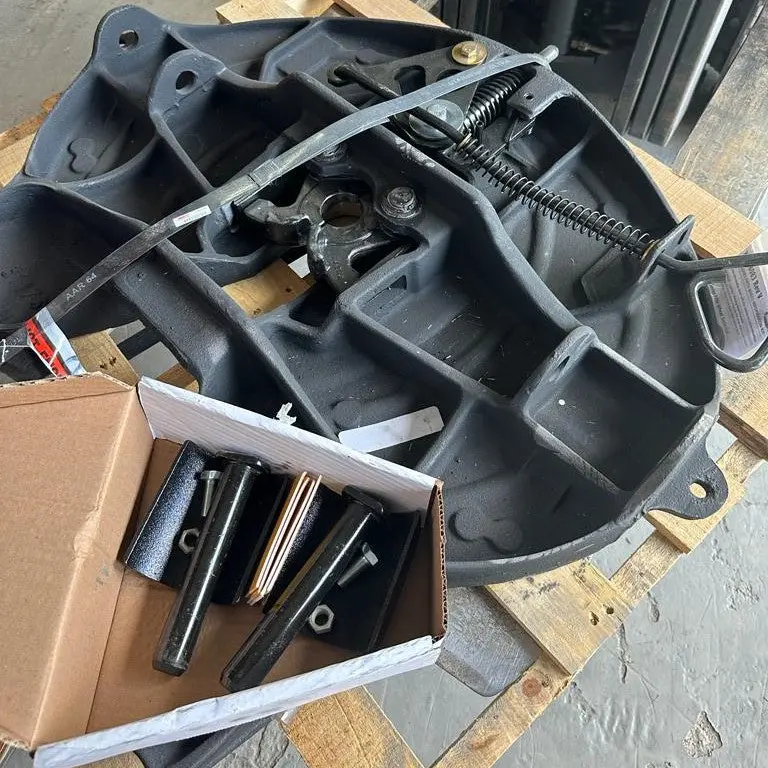

The HOLLAND FW35 is the most popular fifth wheel series globally. This standard-duty top plate is made of cast steel and features a 210kN D-rating. It is designed for 50mm kingpins and is tested to meet AS4968 and ADR 62/02 industrial standards.
Specifications
- Product Line: Chassis & Suspension
- Category Name: Fifth Wheels & Parts
- Part Type: 5th Wheel
- Alternate Part Name: 5th Wheel Plate, Fifth Wheel Plate, Fifth Wheel Head, Fifth Wheel Trailer Hitch Mount Plate
- Application Type: Tractors, Trailers, Heavy Duty Trucks, Semi-Trucks
- Kingpin Diameter Compatibility: 2.00 in.
- Mounting Interface: Bracket Assembly (Not Included)
- Mounting Type: Stationary
- Series: HOLLAND FW35
- Material: Cast Steel
- Overall Height: 5.37 in.
- Overall Length: 33.00 in.
- Overall Width: 44.50 in.
- Duty Rating: Moderate to severe, on and off highway
- Lock Jaw Type: TwinLock
- Lubrication Type: Standard
- Maximum Vertical Load Capacity: 55.000 lbs.
- Release Type: Left-Hand Release
- Net Weight: 230 lb.
Intended Application
- Heavy Duty On-Highway Trucks & Tractors (Class 7 and 8)
- Tractor-semi-trailer coupling applications
- Standard 2″ kingpin trailers (SAE J700)
- Long haul, Regional, Heavy Vocational (depending on the bracket/mount selected)
Cross-references
- XA-351-A-L-P, XA351ALP
