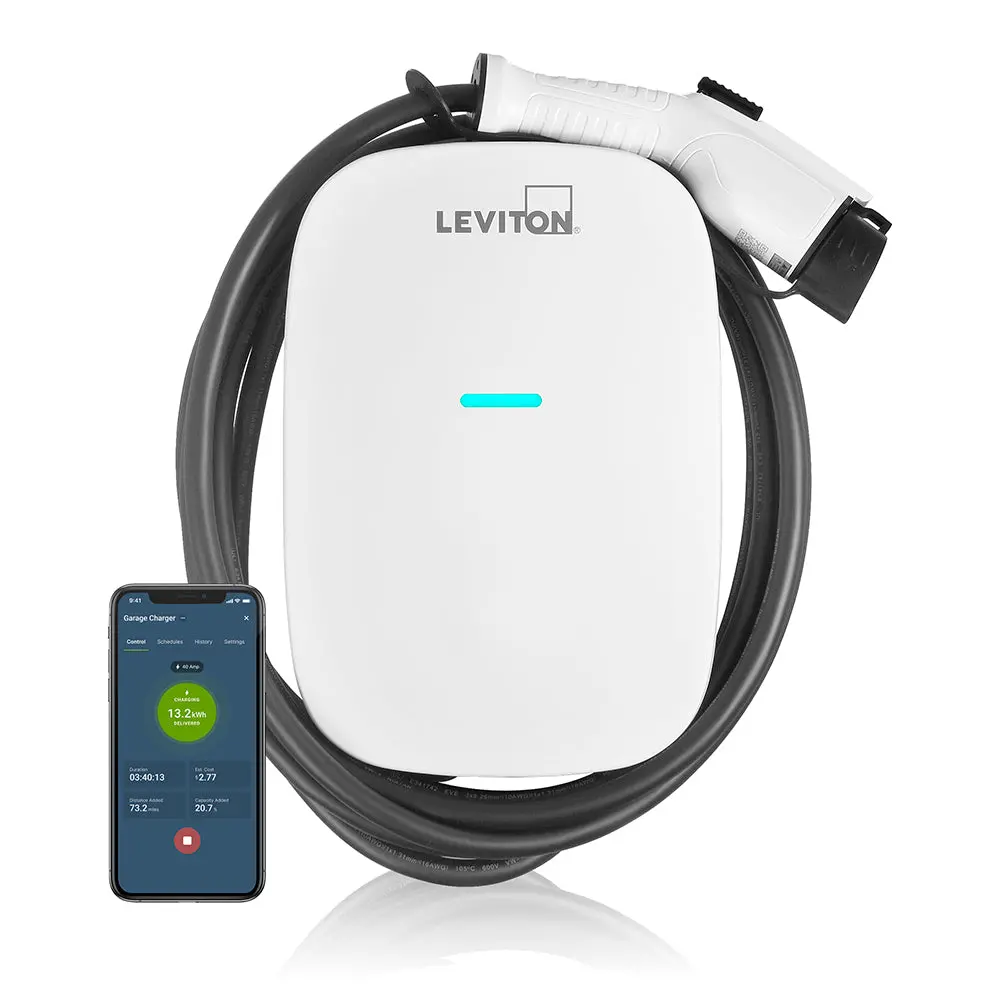

32 Amp Level 2 Electric Vehicle Charging Station – EV SeriesEV Series Standard Level 2 Electric Vehicle Charging Station, 32 A, 208/240 VAC, 7.6kW Output, J1772 Charge Connector, 18′ Cord, Replacement for EVR30-B1C and EVR30-R2C, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY
- Fast and secure charging of any SAE J1772™ compatible electric vehicle
- Optional access control; station comes with RFID disabled – simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather
- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R
- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified
Electrical Specifications
Amperage32 ABreaker40 ACharge Connector Cord#10 AWG SAE J1772Number of Phase / WireL1, L2 and Ground, Bottom FeedOperating Temperature-30°C to 50°COutput Power7.6kWShort Circuit Current Rating20 mA CCID per UL 2231Voltage208/240 VAC
Environmental Specifications
AltitudeUp to 6,500 ft. (2,000 m)Charging Cable Operating Temperature-30°C to +50°CCoolingNatural CoolingOperating Humidity< 95% Relative Humidity, Non-Condensing
Material Specifications
Enclosure MaterialPlastic (PC+PBT)Enclosure RatingNEMA Type 3RStatus IndicatorPower Present, Charging, Fault
Mechanical Specifications
Cable Length18 ft. (5.5 m)
Product Features
ApplicationHome|CommercialCover Locking MechanismPhillips Head Screws, No Padlock OptionDevice TypeCharger
Standards and Certifications
Standards and CertificationsUL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant| cETLus
Warranty
Warranty2-Year Limited
