Leviton EV80W Wi-Fi Enabled Level 2 EV Charger, 80A, Smart App Control

Description

80 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi, Works with My Leviton AppEV Series Smart Home Level 2 Electric Vehicle Charging Station, 80A, 208/240 VAC, 19.2kW Output, J1772 Charge Connector, 18′ Cord, Includes Mounting Bracket and Pre-Attached Input Cable, Optional RFID Control, Wi-Fi Compatible (Wi-Fi Function 802.11 b/g/n). HARDWIRED ONLY

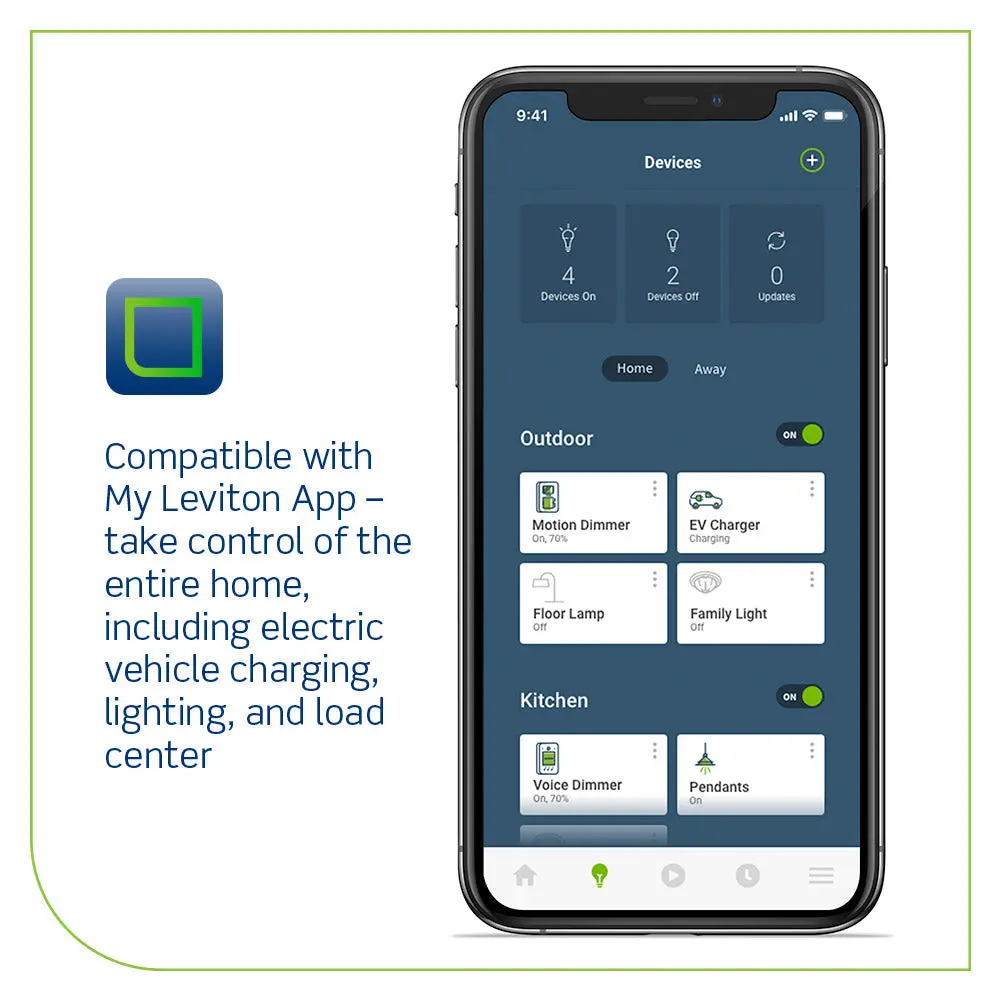

• SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger.
• THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
• FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors
• EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 100 Amp breaker
• CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter

UPC Code:

078477334096

Electrical Specifications

Amperage80 ABreaker100 ACharge Connector Cord#6 AWG SAE J1772Number of Phase / WireL1, L2 and Ground, Bottom FeedOperating Temperature-30°C to 50°COutput Power19.2kWShort Circuit Current Rating20 mA CCID per UL 2231Voltage208/240 VAC

Environmental Specifications

Altitude Up to 6,500 ft. (2,000 m)Charging Cable Operating Temperature-30°C to +50°CCooling Natural CoolingOperating Humidity< 95% Relative Humidity, Non-Condensing

Material Specifications

Enclosure Material Plastic (PC+PBT)Enclosure Rating NEMA Type 3RStatus Indicator Power Present, Charging, Fault

Mechanical Specifications

Cable Length18 ft. (5.5 m)

Product Features

Application HomeCover Locking Mechanism Phillips Head Screws, No Padlock OptionDevice Type ChargerFeature My Leviton Enabled

Standards and Certifications

Standards and CertificationsUL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant

Warranty

Warranty2-Year Limited
