Description

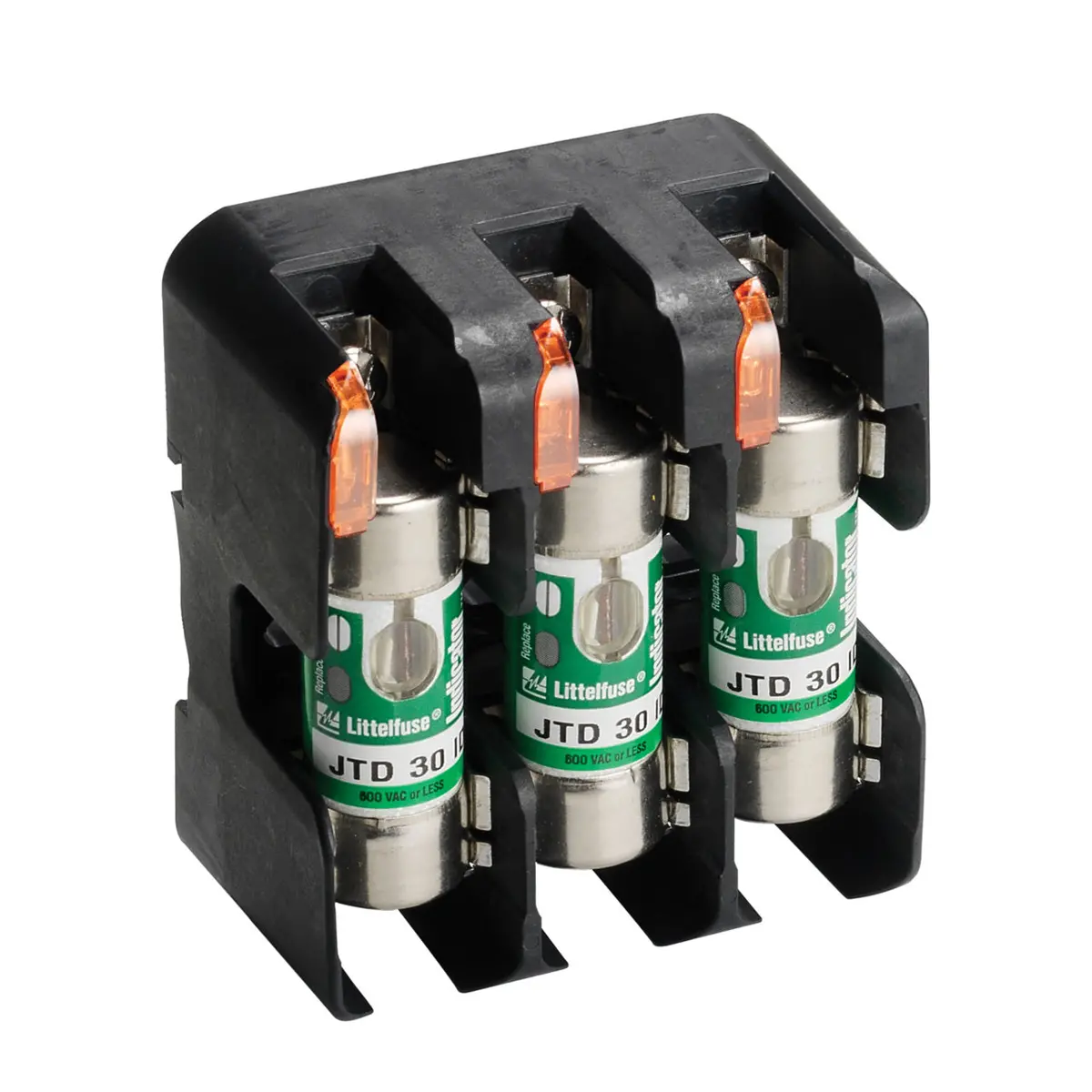

600V CLASS J BLOCK 100A 3 POLE NON-ID | Series: LFJ
| Property | Value |
|---|---|
| Fuse Type | Class J |
| Indicating | No |
| Fuse Category | General Purpose |
| Fusible | Yes |
| Holder Family | Fuse Block |
| Current Rating Max (A) | 100 |
| Mounting Method | Bolt-In DIN Rail |
| UL Class | J |
| Maximum AC Voltage | 600 |
| Maximum DC Voltage (V) | 600 |
- Indication offered on all versions except 200A-600A
- DIN Rail releasable for all non-knife blade style fuses
- Only one hand is required to release from DIN Rail (lock open lock closed)
- Phenolic blocks have side barriers for isolation
- Spring reinforced fuse clips are standard on 100A and larger blocks. Reinforcing springs are optional on 30A and 60A blocks.
- Universal mounting holes make for easy replacement
- Space-saving design — up to 45% smaller than existing blocks
