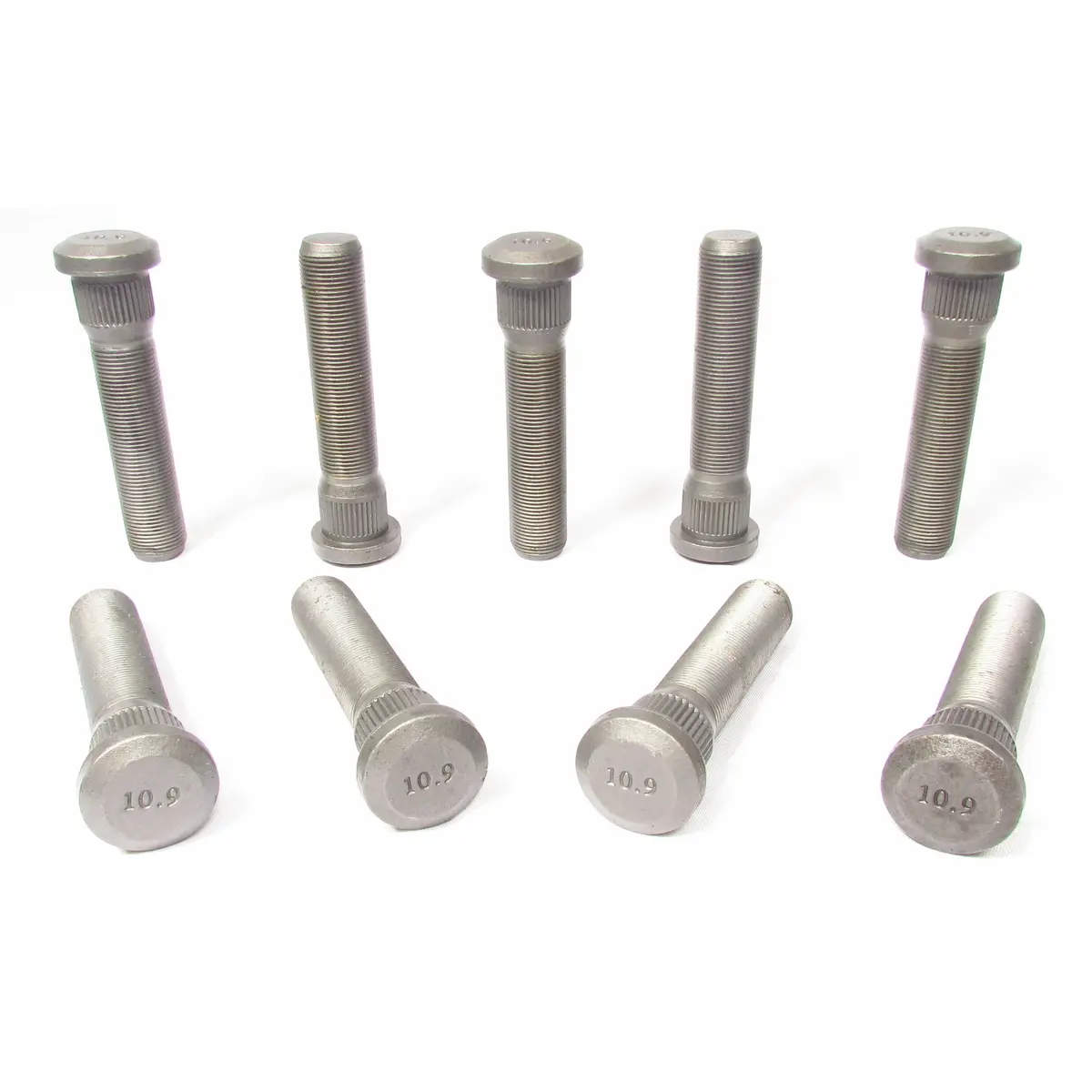

Metric Serrated Drive Wheel Stud – M22 × 1.5 Thread, 0.975″ Body × 4.25″ Overall Length – 10-Pack

Description

Specifications

• Product Line: Driveline & Axles
• Category Name: Wheel Fasteners
• Part Type: Wheel Stud
• Alternate Part Name: Metric Clipped Head Studs, Metric Serrated Drive Wheel Studs
• OEM Part Number: E10676
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Stud Type: Headed
• Material: Carbon Alloy Steel
• Body Diameter (G): 0.975 in.
• Body Length (E): 0.720 in.
• Head Diameter (F): 1.310 in.
• Head Style: Round
• Head Thickness: 0.310 in.
• Length from Under Head (B): 4-1/4 in.
• Serration: Serrated
• Serration Diameter: 1.015 in.
• Serration Length (D): 0.500 in.
• Thread (A): M22 x 1.5
• Thread Diameter (H): 22.0 mm
• Thread Direction: RH (Right Hand)
• Thread Length (C): 3.280 in.
• Thread Size: M22 X 1.5-6g
• Threads: 1.5 per mm
• DIN / ISO Grade: 10.9 (metric equivalent of Grade 8)
• Net Weight: 0.80 lb.

Intended Application

• Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.

Cross-references

• 131577, 1681044, 2016153, 2016153P2, 676, E-10676, E10676, R0010676, W1196, W1249, W1327, W1403
