Description

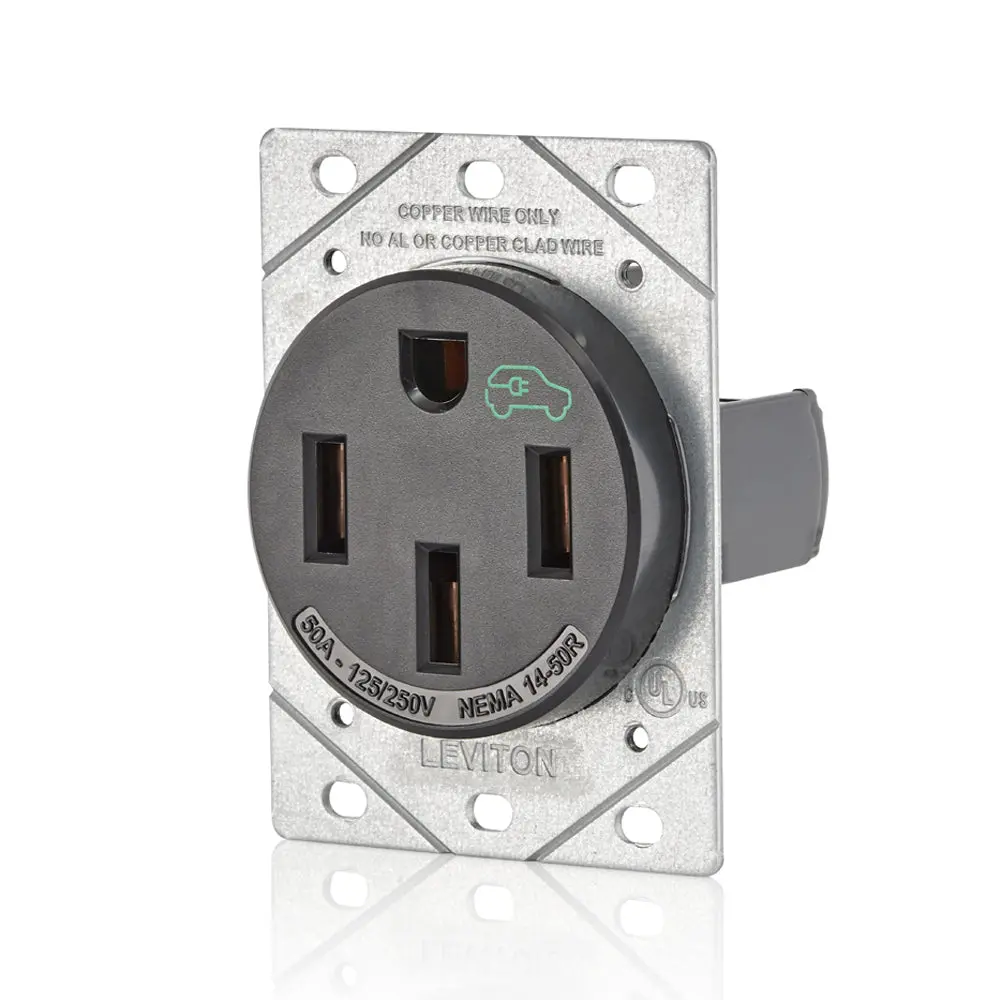

50 Amp EV Charging Receptacle/Outlet, Heavy Duty50 Amp, 125/250 Volt, NEMA 14-50R, 3-Pole, 4-Wire, Heavy Duty Flush Mount EV Charging Receptacle/Outlet, Straight Blade, Industrial Grade, Grounding, Side Wired, Steel Strap – Black
Designed specifically for plug-in EV charging applications, Leviton’s 1450R and 1450W power receptacles are built to outperform and outlast. With its robust design and performance, the 50A Heavy Duty Power Receptacle can sustain the necessary extended charge time and high frequency of insertions EV chargers require. This receptacle offers the perfect option for homeowners who prefer a plug-in application as opposed to a hardwire application and for future-focused new construction MDU projects that want to present an EV-ready environment.
- Built of durable, high-impact nylon
- Pressure-wire terminal connections ensures full-contact with the conductors
- Features heavy-gauge, high-performance copper contacts
- Accurate, efficient wiring with terminal IDs marked
- High torque value to ensure proper connection: terminals require 75 in lbs
- UPC Code:
- 078477013342
-
AC Horsepower Ratings
At Rated Voltage3 HP
Electrical Specifications
Amperage50 ADeviceFlush Mounted Single ReceptacleFlammabilityRated HB or better UL94GradeIndustrialGroundingGroundingNEMA14-50ROperating Temperature-40°C to 60°CPole3Terminal IDX (Brass screw or Black screw) = Hot, Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = GroundTorque Range75 in-lbs.Voltage125/250 VACWire4Wire GaugeFor use with #4, #6 or #8 AWG copper wire ONLY. May use #10 AWG solid wire for ground connection. DO NOT use with copper-clad or aluminum wires on this device.
Material Specifications
Face MaterialNylonProduct IDRatings are permanently marked on deviceStrap MaterialHeavy Gauge Galvanized Steel
Product Features
ApplicationHomeDevice TypeReceptacle/Outlet
Standards and Certifications
cULuscULus
Warranty
Warranty2-Year Limited
