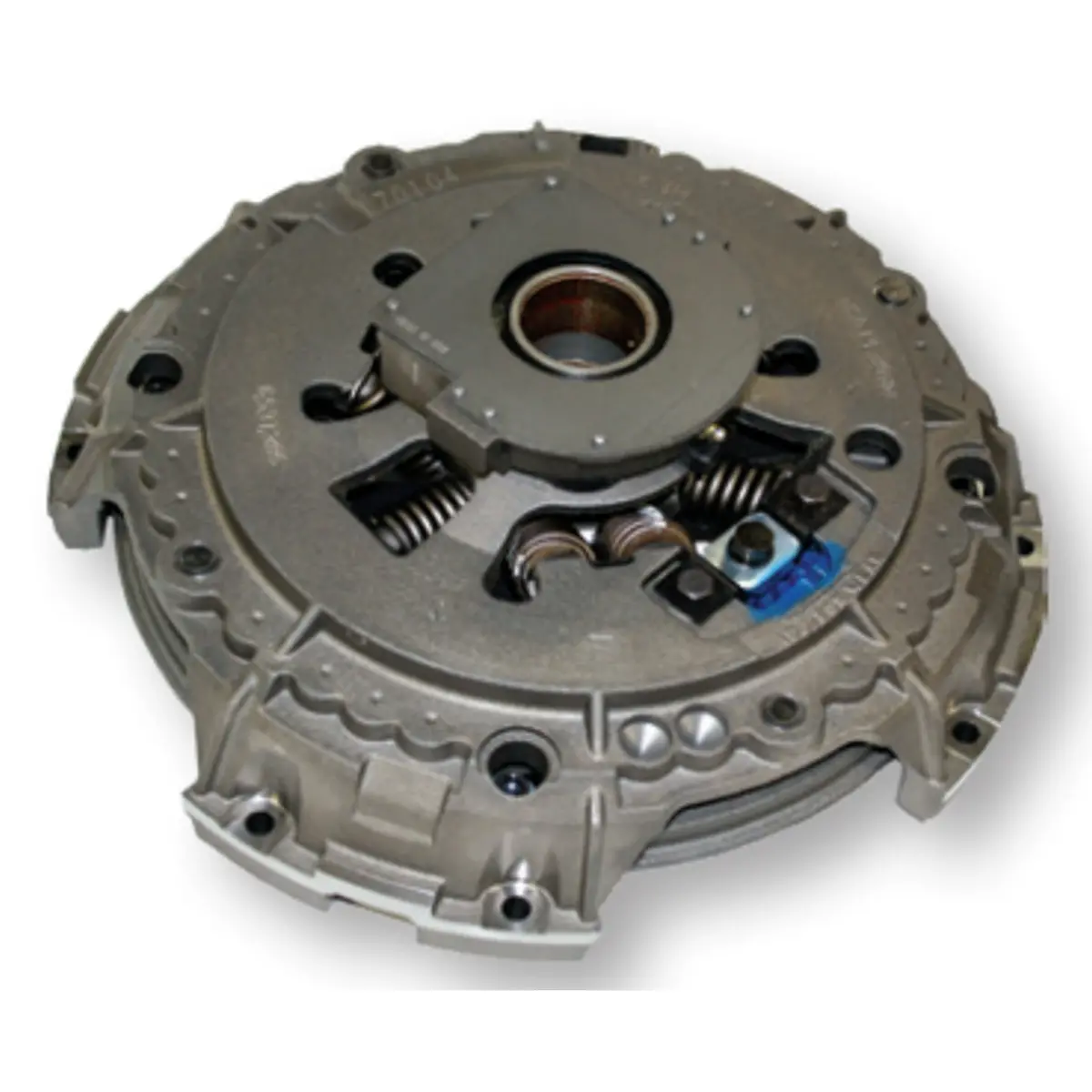

Description
Specifications
- Product Line: Transmission
- Category Name: Clutch Components
- Part Type: Clutch Assembly
- Alternate Part Name: Heavy Duty Clutch Assembly, Clutch Assemblies
- OEM Part Number: 10709174B
- Application Type: Heavy Duty Trucks
- Clutch Diameter: 15-1/2 in.
- Flywheel Bore Diameter: 8-1/2 in.
- Spline Count: 10
- Spline Diameter: 2 in.
- Material: Steel, Ceramic Pad
- Adjustment System: Manual
- Clutch Technology: EZ Pedal ™ (Easy Pedal)
- Disc Facing Material: Ceramic
- Disc Paddle Type: 4
- Disc Spring Quantity: 10
- Pressure Plate Clamp Load: 3.600 lb.
- Torque Rating: 1650 ft-lb
- Transmission Type: Manual
- Package Length: 9.00 in.
- Package Width: 19.00 in.
- Package Height: 18.00 in.
- Net Weight: 136.90 lb.
Intended Application
- Compatible with Class 7-8 heavy-duty trucks equipped with non-synchronized manual transmissions using 15.5 in. x 2 in. Dual Disc flywheel clutches with an 8.5 in. flywheel bore (10 Spring configuration), designed for high torque applications on highway and vocational platforms requiring a 10-Spring 4-Pad Co-Ft ceramic clutch with manual EZ adjustment; commonly used in Eaton Fuller configurations and equivalent systems that demand an approximate capacity of 1650 ft-lbs, flywheel diameter, number of springs, and powertrain specifications must be verified before installation.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
Cross-references
- 10709174B, 10839174AM, 10839174M0, 10839174MO, 755NC165074E, CCA-9737, CCA9737, CLU10839174, CLU20839174, EP10839174, MAF-108391-74, MAF10839174, MU1296
