Description

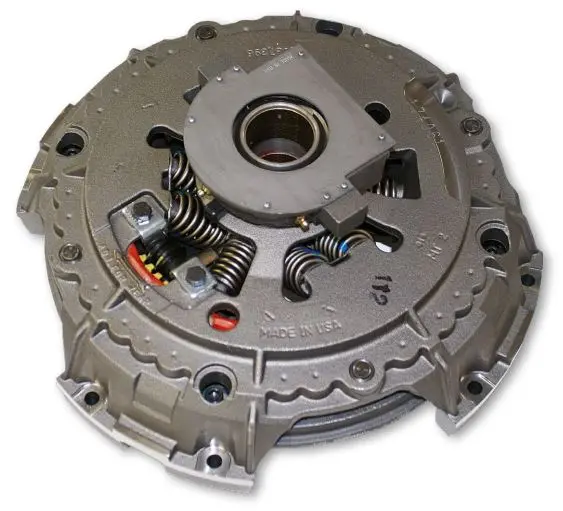

This high-torque self-adjusting beast is built for 10″ flywheel bores (Mack applications). Delivering 2050 ft-lbs of torque, it features a 6-paddle, 9-spring disc setup. Direct replacement for Eaton 309701-98. Patented AES seal technology prevents contamination for a longer life
Specifications
- Product Line: Transmission
- Category Name: Clutch Components
- Part Type: Clutch Assembly
- Alternate Part Name: Heavy Duty Clutch Assembly, Clutch Assemblies
- OEM Part Number: 309701-91
- Application Type: Heavy Duty Trucks
- Clutch Diameter: 15-1/2 in.
- Flywheel Bore Diameter: 10 in.
- Spline Count: 10
- Spline Diameter: 2 in.
- Material: Steel, Ceramic Pad
- Adjustment System: Self-Adjust
- Disc Facing Material: Ceramic
- Disc Paddle Type: 6
- Disc Spring Quantity: 9
- Pressure Plate Clamp Load: 4.000 lb.
- Torque Rating: 2050 ft-lb
- Transmission Type: Manual
- Net Weight: 145 lb.
Intended Application
- Compatible with heavy-duty manual transmissions that utilize a 15-1/2 in. x 2 in. dual disc clutch with a 10-inch flywheel bore, 2 in. – 10 spline input shaft, 9 Spring configuration with 6 Pad ceramic discs and an approximate capacity of 2050 ft-lb, designed as a direct replacement for OEM configurations such as Eaton and equivalent heavy-duty applications requiring clutch self-adjust within Class 8 transmission platforms.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
Cross-references
- 10970192AM, 20892592, 20970192, 30970191, 30970198, ANSO15569812SB9, CLU20993551H, ESA20993551H, MAF-209935-51H, MAF20993551H, NMU7010574M, SO15569812SB9, 309701-98, E-SA209935-51H
