Description

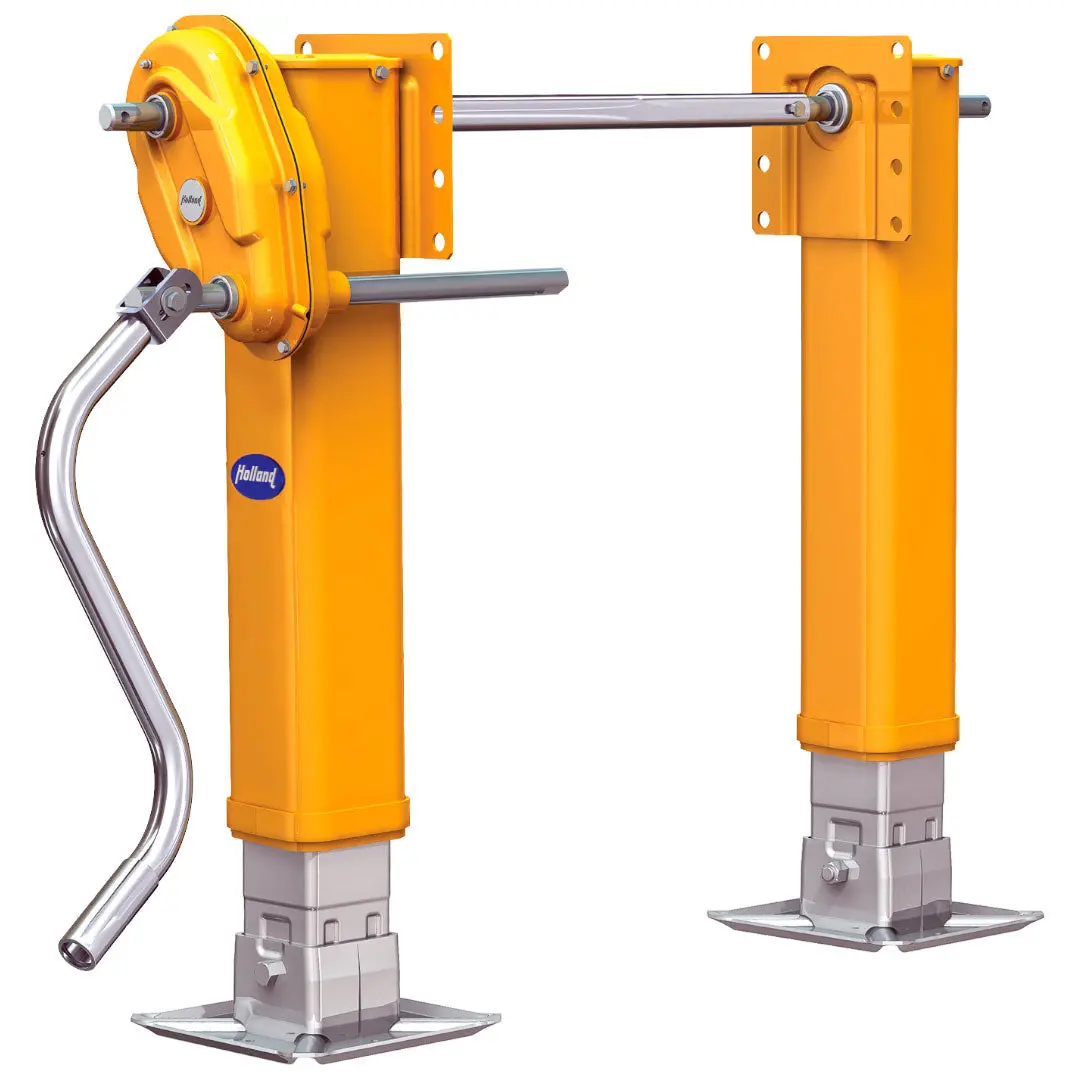

The HOLLAND ATLAS 55 is a premier landing gear model for standard-duty applications. It features the patented Constant Mesh Gearbox design and exclusive Black Armour corrosion protection. This assembly provides 17 inches of travel and includes a 4.5-inch sand shoe for ground stability.
Specifications
- Product Line: Chassis & Suspension
- Category Name: Landing Gears
- Part Type: Landing Gear
- Alternate Part Name: Trailer Landing Gear, Landing Gear Assembly
- Model: Atlas 55
- OEM Part Number: LG4001-700000000
- Application Type: Trailers
- Axle Type: Standard
- Cross Drive Shaft: 68.00 in.
- Mounting Type: Universal
- Material: High strength steel
- Extended Length (A): 48.19 in.
- Footware Type: Standard Sand Shoe
- Footware Type Size: 4.50 in. x 10.00 in. x 10.00 in.
- Retract Tube: Standard
- Retracted Length (B): 31.19 in.
- Travel Distance (D): 17.00 in.
- Upper Leg (C): 26.80 in.
- Input Torque: 100 ft./lb.
- Lifting Capacity: 55,000 lb.
- Load Capacity: 170,000 lb.
- Net Weight: 170.00 lb.
Cross-references
- LG4001-700000000, LG4001700000000
