Description
Spicer Select 1760 Series Half-Round U-Joint. Performance aftermarket joint for 1760 series applications. Dana-backed engineering ensures a direct fit into half-round yokes with 1.938″ bearing caps. Built for durability to handle high-torque commercial loads. An ideal solution for extending the life of aging fleets.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Series: 1760
- Universal Joint Type: Half Round Style
- VMRS Code: 24002046
- Material: Steel

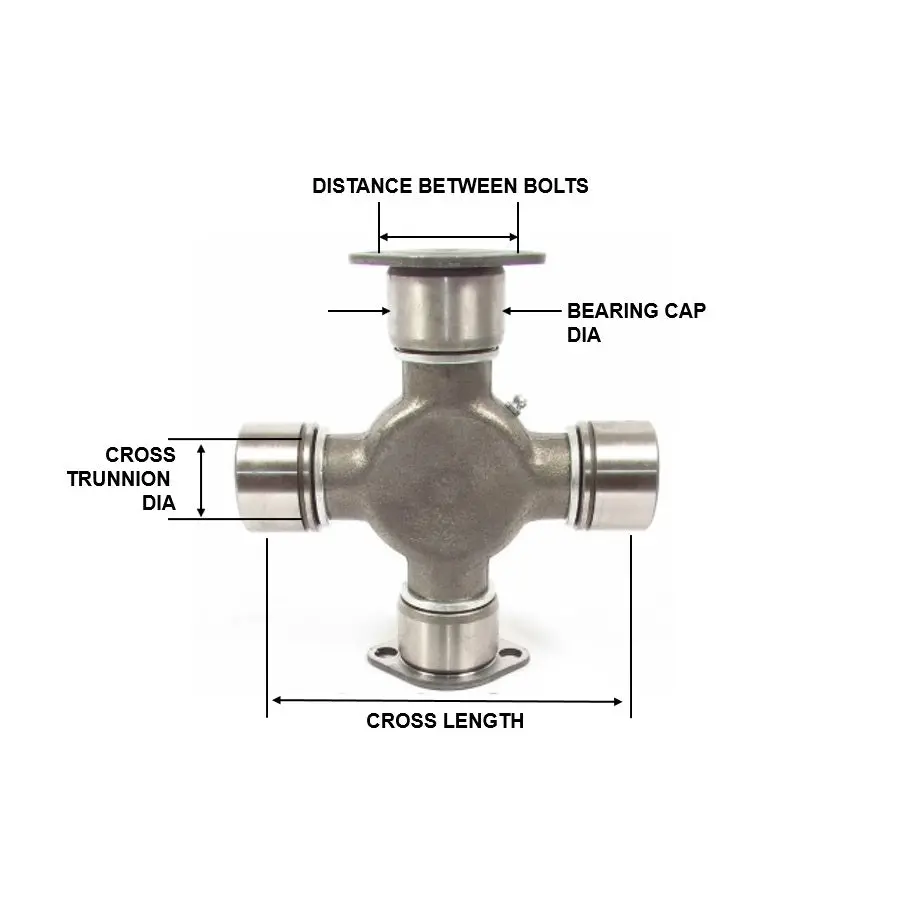

- Bearing Cap Diameter: 1.938 in.
- Cross Length: 6.541 in.
- Distance Between Bolt Holes: 2.437 in.
- Trunnion Diameter: 1.298 in.
- Grease Fitting Location: Side of Cross
- Greaseable: Yes
- Net Weight: 9.79 lb.
Bill Of Material
- 1 U Joint
- 4 Drive Shaft Bolt
- 2 Bearing Cap Assy
- 4 Drive Shaft Bolt
- 2 Strap
- 2 Retainer
Intended Application
- Commercial vehicles using 1760 series driveshafts with Half Round type yokes
Cross-references
- 2104-5677X, 21045677X, 407HR, 5-469X, 5-677X, 5469X, 5677X, 60677, 60677GXL, 60677Q, 64071, CP677X, E677X, EM69170, JUJ-6917, JUJ6917, M677X, US677X, 1000-UJ677, 1000UJ677, 15-677X, 15677X, 25-677X, 25677X, 3918980, 752, E5677X, M-6002, M6002, R677X, RCUJ677
