Description
Fortpro F276105 Universal Joint. Engineered as a professional aftermarket replacement for Spicer 5-160X within 1410 series drivelines. Features an outside snap ring retention style to ensure secure bearing cap placement in heavy-duty yokes. High-quality internal bearings provide smooth torque transfer while reducing vibrations. Built to rigorous standards for dependable service in commercial transport and industrial applications. Provides a cost-effective solution for aging fleet restoration.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint
- OEM Part Number: 5-160X
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Series: 1410
- Universal Joint Type: Outside Snap Ring Style
- VMRS Code: 24002046
- Material: Steel
- Bearing Cap Diameter: 1.188 in.
- Bearing Cap Type: Round
- Cross Length: 3.936 in.
- Outside Snap Ring to Snap Ring: 4.188 in.
- Seal Material: Rubber
- Snap Ring Type: External
- Trunnion Diameter: 0.774 in.
- Grease Fitting Location: Side of Cross
- Greaseable: Yes
- Net Weight: 1.90 lb.

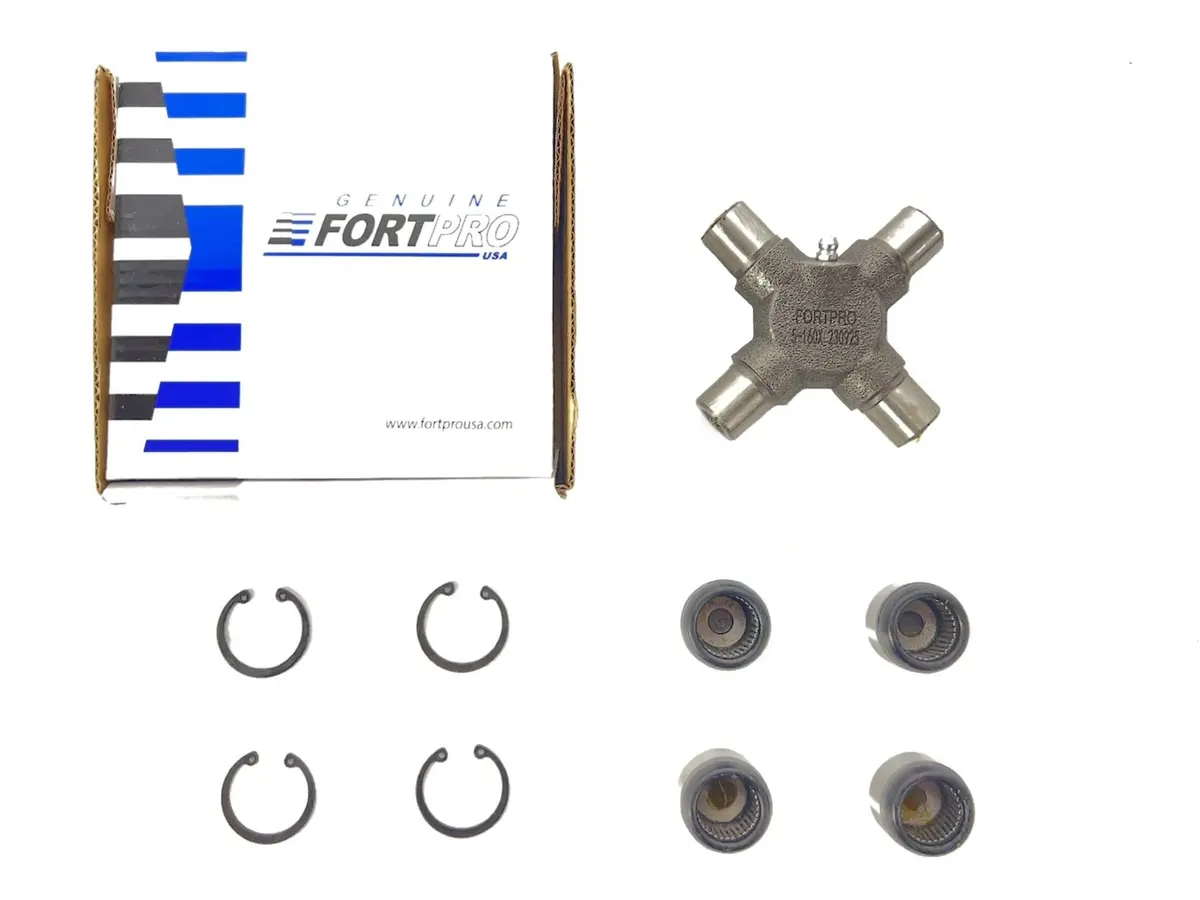

Bill Of Material
- 1 Universal Joint
- 4 Snap Ring
Intended Application
- Designed for the rear axle-to-wheel interface in Rear-Wheel Drive (RWD) systems. This universal joint is applicable to configurations where the rear driveshaft is a two-piece assembly, specifically compatible with the 1410 Series driveshafts. Bearing retention is achieved by means of external snap rings.
Cross-references
- 127574R91, 15-160X, 15160X, 1516853, 1752412, 2104-5160X, 21045160X, 2185901, 2223568, 226
