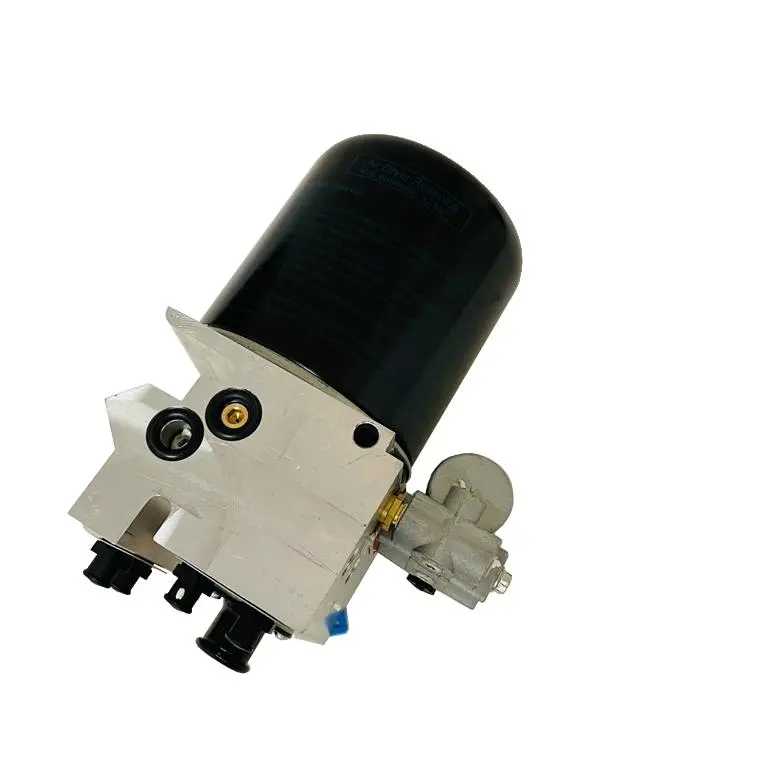

Fortpro AD-IS Style 12V Air Dryer – Compatible with Navistar, International, Kenworth, Peterbilt; Replaces Bendix 801266 and 5010696X

Description

Specifications

• Product Line: Brakes
• Category Name: Air Dryers
• Part Type: Air Brake Dryer
• Model: AD-IS (Integrated System)
• OEM Part Number: 801266
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Cartridge Thread Type: M39 x 1.5-6H RH
• Cartridge Type: Standard
• Control Port Size: 1/4 in.-18 NPT
• Delivery Port 1 Size: 1/4-18 NPT
• Governor Reservoir Port Size: 1/8-27 NPT (Plugged)
• Governor Unloader Port Size: 1/8-27 NPT
• Heater Connector Type: Metri-Pack Sealed Connector (Male)
• Purge Exhaust Port Type: Standard
• Purge Valve Type: Hard Seat
• Secondary Delivery Port Size: 1/4-18 NPT
• Supply Port Size: 1/2 in.-14 NPT
• Minimum Operating Temperature: -40 deg. F (-40 deg. C)
• Operating Voltage: 12V
• Safety Valve Opening Pressure: 153 psi
• Thermostat Power Rating (Watts): 90W

Technical NotesPressure protection valve configs are not interchangeable.
Intended ApplicationFor use in standard air brake applications on trucks, tractors, and buses
Cross-references

• 5010694, 5010696X, 5015533, 5015534, 801266, FLTAD1266, R9555010696XCF
