Description
Specifications
- Product Line: Brakes
- Category Name: Air Dryers

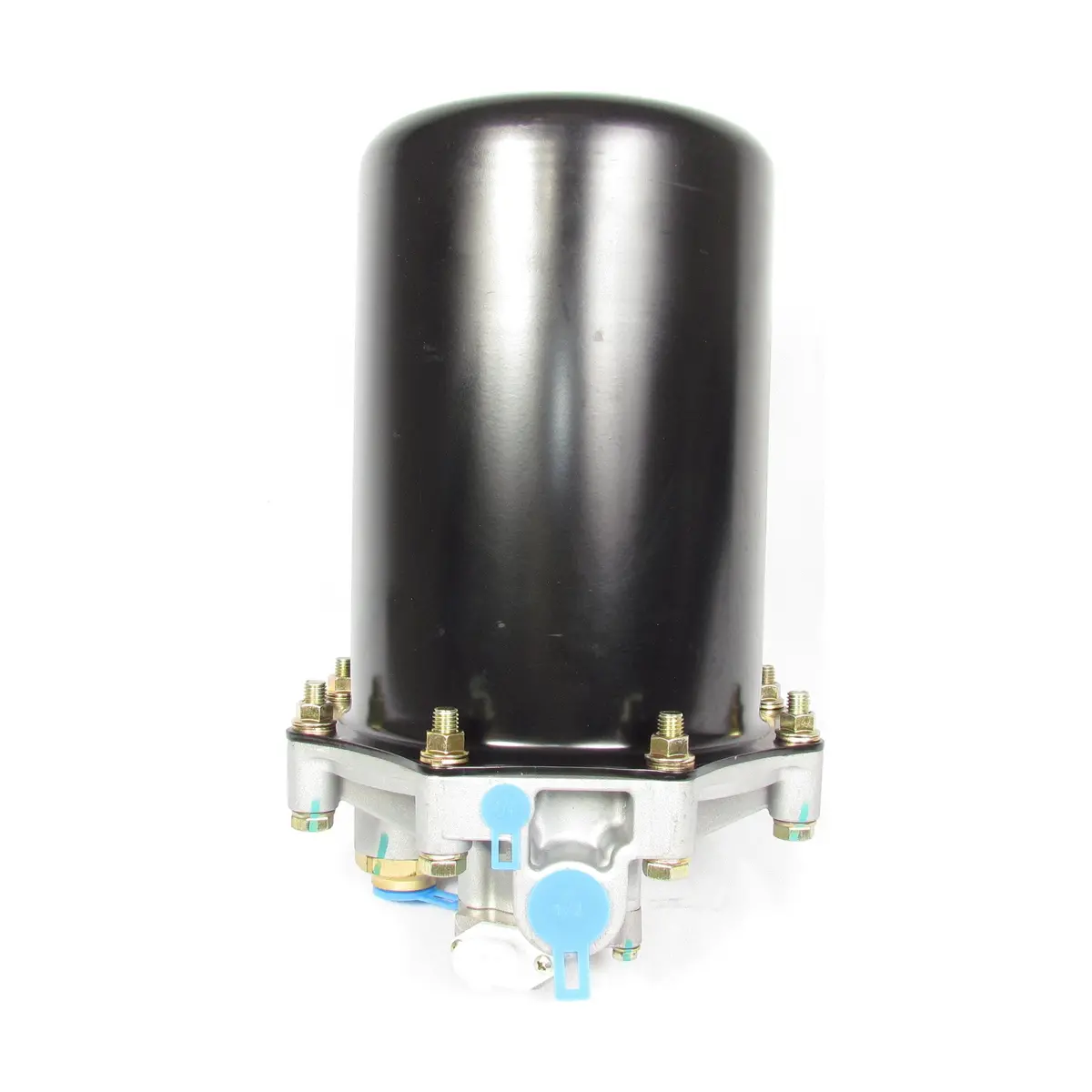

- Part Type: Air Brake Dryer
- Model: AD-9
- OEM Part Number: 65225
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Body Mounting Type: .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
- Cartridge Thread Type: 5/8-11 UNC-2A
- Cartridge Type: Standard
- Control Port Size: 1/4 in.-18 NPT
- Delivery Port 1 Size: 1/2-14 NPT
- Heater Connector Type: Metri-Pack Sealed Connector (Male)
- Lower Mounting Bracket Type: .41 IN x 1.15 IN Slot (2x)
- Purge Exhaust Port Type: Open
- Purge Valve Type: Soft Seat
- Supply Port Size: 1/2 in.-14 NPT
- Upper Mounting Bracket Type: Strap (Carbon Steel)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Operating Voltage: 12V
- Safety Valve Opening Pressure: 200 psi
- Thermostat Power Rating (Watts): 75W
Technical NotesNo Governor Included
Intended ApplicationFor use in standard air brake applications on trucks, tractors, and buses
Cross-references
- 065225, 065225X, 1093794, 109685, 109685X, 26QE377, EBN065225N, EBN065225XCF, R955065225N, R955065225X
