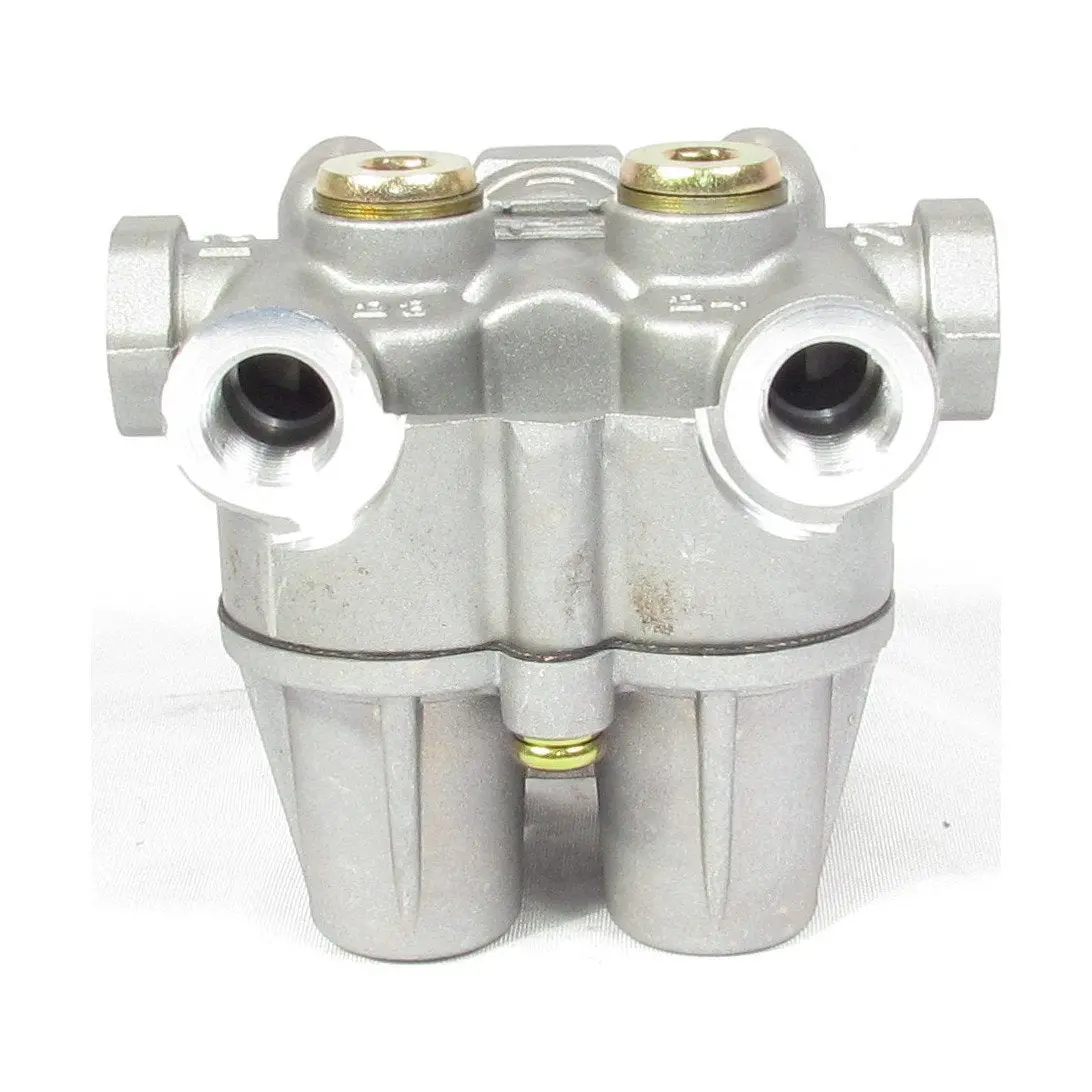

Fortpro Four-Circuit Protection Valve – M22×1.5mm Inlet / M16×1.5mm Outlet, Replaces AE4170 | F224784

Description

Specifications

• Product Line: Brakes
• Category Name: Air Brake Valves
• Part Type: Pressure Protection Valve
• Alternate Part Name: Air Brake Pressure Protection Valve
• OEM Part Number: AE4170
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Mounting Hole Qty: 2
• Mounting Hole Size: M8
• Port 1 Thread Size: M22 x 15 mm
• Port 1 Type: Supply Port
• Port 2.1 Thread Size: M16 x 1.5 mm
• Port 2.1 Type: Output to Service Brake 1
• Port 2.2 Thread Size: M16 x 1.5 mm
• Port 2.2 Type: Output to Service Brake 2
• Port 2.3 Thread Size: M16 x 1.5 mm
• Port 2.3 Type: Parking Brake and Trailer Exit
• Port 2.4 Thread Size: M16 x 1.5 mm
• Port 2.4 Type: Output to Auxiliary Circuit
• Ports Thread Type: Metric
• Material: Die-cast Zinc
• Circuits Opening Pressure: 7.0 bar
• Dynamic Closing Pressure: 4.5 bar
• Operating Temperature Range: -40 deg. C a +80 deg. C.
• Net Weight: 1.76 lb.

Intended Application

• Compatible with compressed air systems that need to manage and protect multiple brake circuits, ensuring that a failure in one of them does not affect the operation of the others.
• European Application:
• Compatible with Mercedes Benz trucks
• Compatible with IVECO trucks
• Compatible with RENAULT trucks
• Compatible with EVOBUS buses
• Compatible with IRISBUS buses

Cross-references

• 0014318706, 0014318906, 0014319306, 042085657, 042085658, 42078368, 5000788503, 9341022500, 9347022500, AE4170, I76633, I77243, I85510, S-9639, S9639, 001-431-87-06, 001-431-89-06, 001-431-93-06, 5000-788-503, 934-102-250-0
