Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

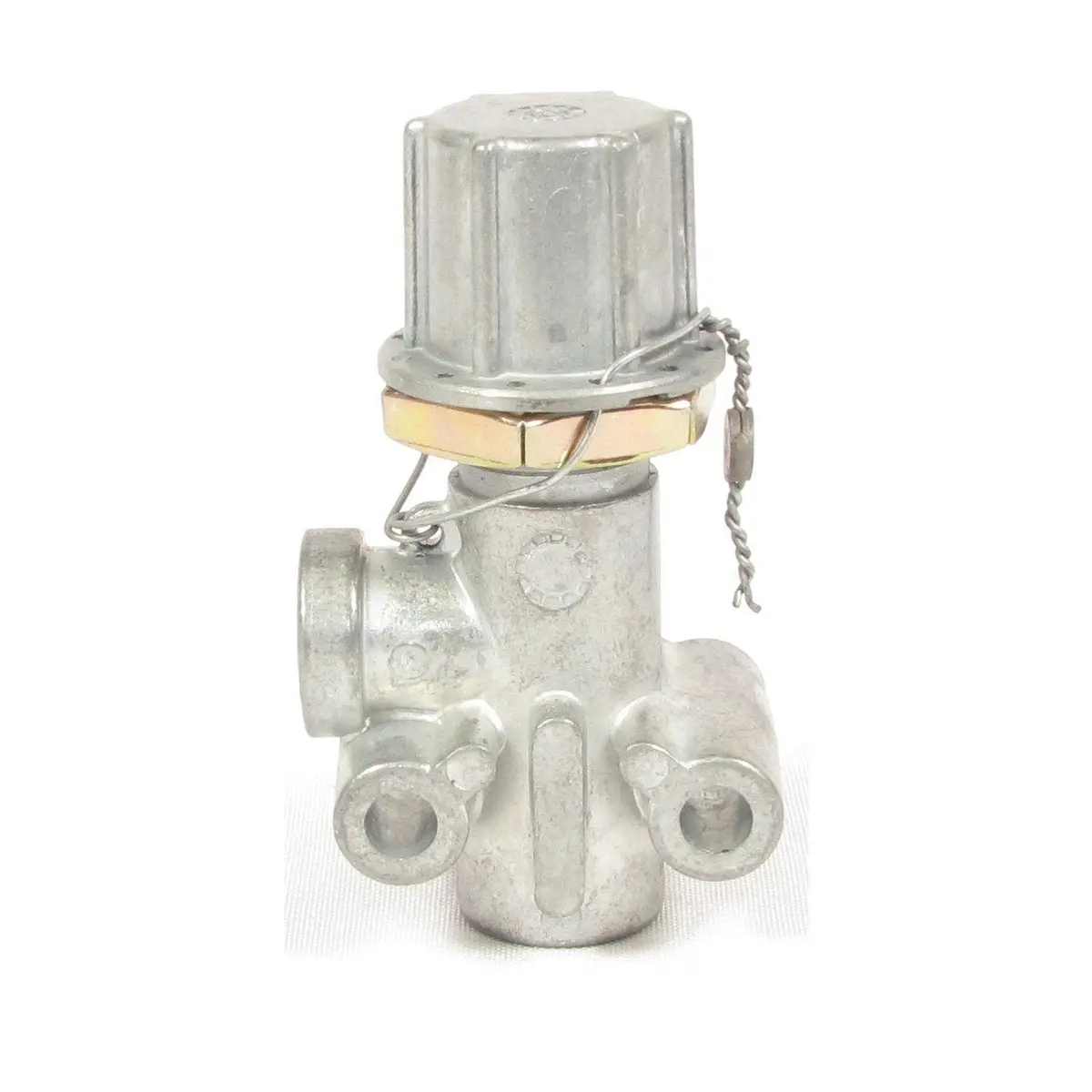

- Part Type: Pressure Reducing Valve
- Alternate Part Name: Air Pressure Control Valve, Pressure Regulator Valve, Air Pressure Regulating Valve, Air Pressure Regulator
- Model: RV-1
- OEM Part Number: 283590
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Delivery Port Size: 1/4-18 NPT
- Exhaust Port Size: Vent
- Mounting Hole Qty: 2
- Mounting Hole Size: Ø .28 in.
- Supply Port Size: 1/4-18 NPT
- Material: Die-cast Zinc
- Adjustment System: Adjustable (with Locking Wire)
- Delivery Pressure: 70 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Net Weight: 0.60 lb.
Intended Application
- Air brake systems in commercial vehicles and trucks.
- Pneumatic pressure control systems in light duty machinery.
- Applications where a regulated and stable air supply is required.
Cross-references
- 1300, 170283590, 170KN31060, 20QE2119P2, 283590, 283590N, 284157, 284157N, 285533, 285533N, 288424, 347082R92, 745-283590N, 745283590N, EM56370, KN31060, LPR-5637, LPR5637, N15817K, N15817M, RKN31060, S-C568, SC568
