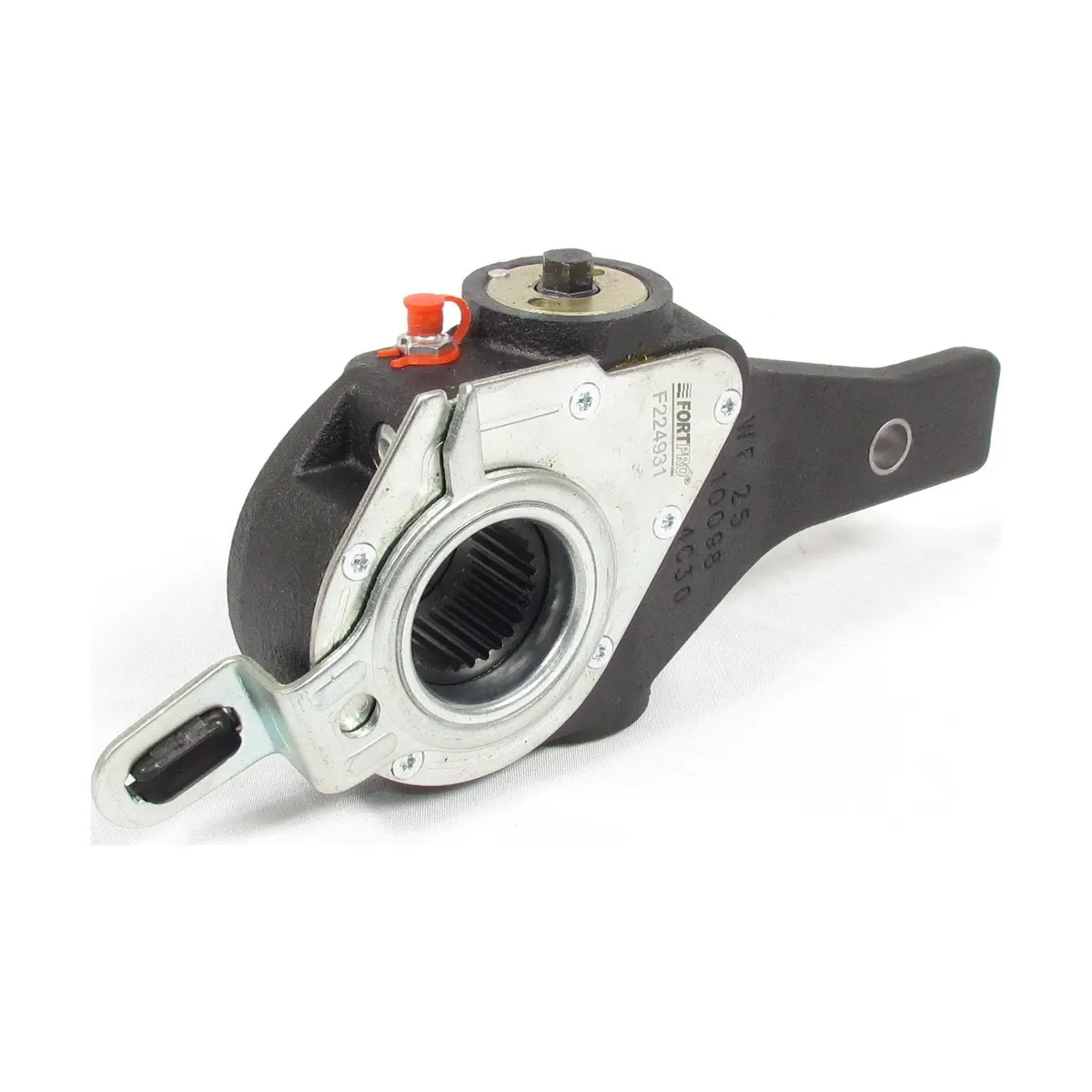

Fortpro Haldex-Compatible Slack Adjuster – 1.5″ Diameter, 28 Teeth, 5.5″ Arm | F224931

Description

Specifications

• Product Line: Brakes
• Category Name: Slack Adjusters
• Part Type: Automatic Slack Adjusters
• Model: Haldex Style / AA1
• OEM Part Number: 40010211
• Anchor Bracket Type: Plate & Flat Stud
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Compatible Brake Chamber Sizes: T-30 Std or T-16/T-24 Long Stroke
• Clevis Type: Unclevised
• Material: Alloy Steel
• Arm Bushing Inside Diameter: 1/2 in.
• Arm Length Position 1: 5-1/2 in.
• Arm Offset: No Offset
• Body Inclination Angle: 0 deg.
• Slack Spline Count: 28
• Slack Spline Diameter: 1-1/2 in.
• Grease Fitting Location: 180 deg.
• Maximum Operating Temperature: 158 deg. F (70 deg. C)
• Maximum Torque: Less than 15 foot pounds
• Minimum Operating Temperature: (-40 deg. F) (-40 deg. C)
• Operation Type: Tension Adjuster – Torque

Cross-references

• 1332840, 28931415, 400-10211, 40010211, 5668, E-6944, E11921, E6944, M807019, MK42100S, R806019, R806019A
