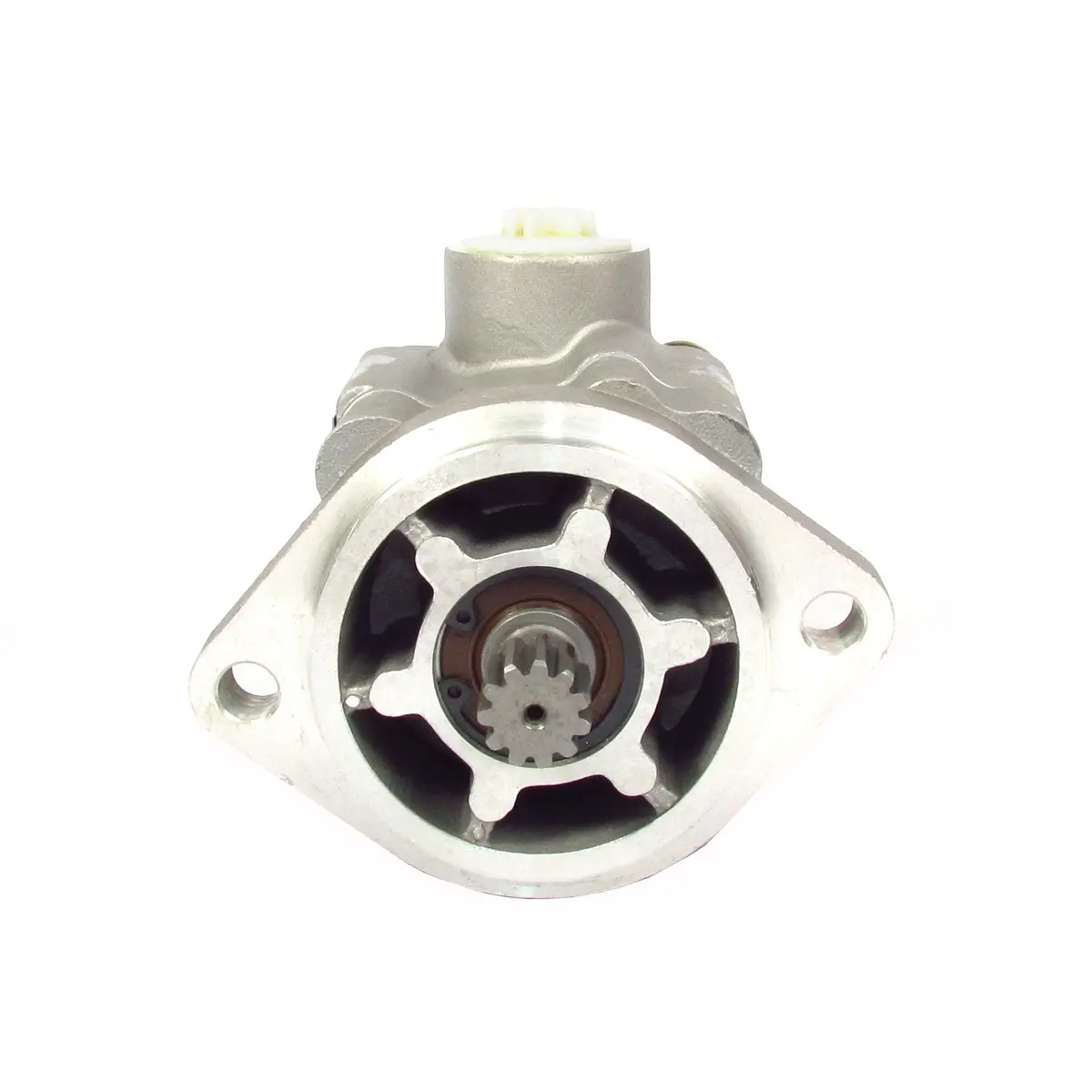

Fortpro Power Steering Pump for Detroit S60 and CAT 3406 Engines | Model F255708

Description

Specifications

• Product Line: Steering Components
• Category Name: Power Steering Pump
• Part Type: Steering Pump
• Alternate Part Name: Hydraulic Power Steering Pump
• OEM Part Number: 2107550
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Inlet Port Thread Size: 1-5/16-12 UN
• Mounting Type: 2 Bolt Flange SAE-A SIZE
• Outlet Port Thread Size: 3/4-16 UNF-2B
• Material: Cast Iron
• Max Operating Speed: 3600 rpm
• Max Relief Pressure: 150 bar
• Nominal Flow Rate: 14.0 L/min
• Pump Displacement: 21.0 cm³/rev
• Shaft Rotation Direction: Left-Hand
• Package Length: 6.00 in.
• Package Width: 7.00 in.
• Package Height: 6.00 in.
• Net Weight: 6.54 lb.

Intended ApplicationCompatible with Detroit Series S60 & 3406 Cat Engines.
Cross-references

• 1682625C91, 2107550, 23513015, 38401-3458, 384013458, 451422E, 465.LUK.02
