Description
Specifications
- Product Line: Steering Components

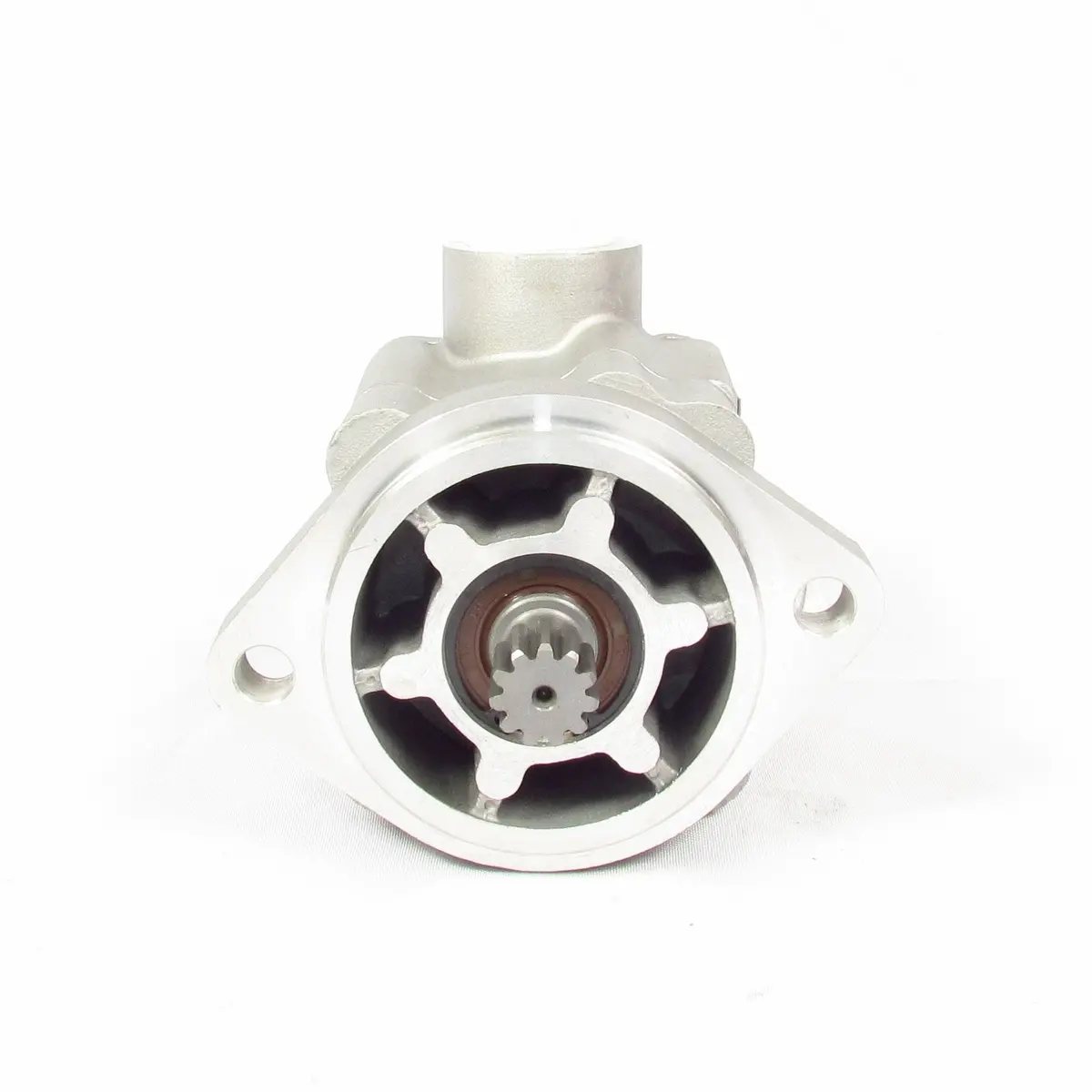

- Category Name: Power Steering Pump
- Part Type: Steering Pump
- Alternate Part Name: Hydraulic Power Steering Pump
- Model: PS
- OEM Part Number: 2108653
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Inlet Port Thread Size: 1-1/16-12 UN-2B
- Mounting Type: 2 Bolt Flange SAE-A SIZE
- Outlet Port Thread Size: 3/14-16 UNF-2B
- Material: Cast Iron
- Max Operating Speed: 3600 rpm
- Max Relief Pressure: 165 bar
- Nominal Flow Rate: 25.0 L/min
- Pump Displacement: 25.0 cm³/rev
- Shaft Rotation Direction: Left-Hand
- Shaft Type: 11-Tooth Spline
- Net Weight: 8.20 lb.
Intended ApplicationCompatible with Cummins N14, International Navistar Engines.
Cross-references
- 2108653, 3538860C91, 465TRW10, 542-0267-10, 542026710, PS282815L103
