Description
Specifications
- Product Line: Steering Components
- Category Name: Power Steering Pump

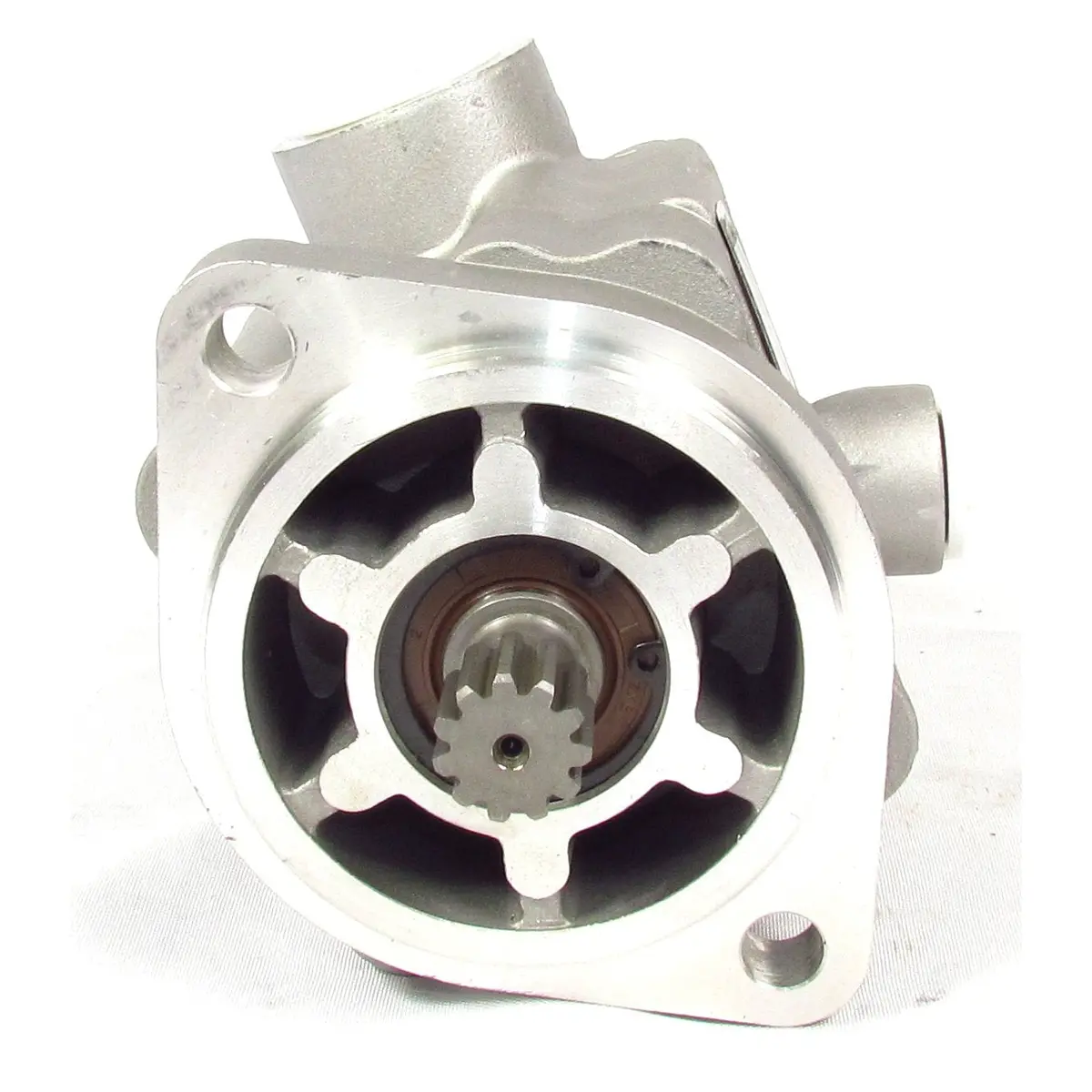

- Part Type: Steering Pump
- Alternate Part Name: Hydraulic Power Steering Pump
- OEM Part Number: 2107544
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Inlet Port Thread Size: 1-1/16-12 UN-2B
- Mounting Type: 2 Bolt Flange SAE-A SIZE
- Outlet Port Thread Size: 3/4-16 UNF-2B
- Material: Cast Iron
- Max Operating Speed: 3600 rpm
- Max Relief Pressure: 165 bar
- Nominal Flow Rate: 4 US gpm @ 1200 rpm
- Pump Displacement: 21.0 cm³/rev
- Shaft Rotation Direction: Right-Hand
- Shaft Type: 11-Tooth Spline
- Net Weight: 6.00 lb.
Intended ApplicationCompatible with Cummins I-6 Engine.
Cross-references
- 14-12358-000, 14-12657-001, 14-12657-002, 14-12657-003, 1412358000, 1412657001, 1412657002, 1412657003, 2005337-C91, 2005337-C92, 2005337C91, 2005337C92, 2107544, 3938123, 465.LUK.05, 542-0320-10, 542032010
