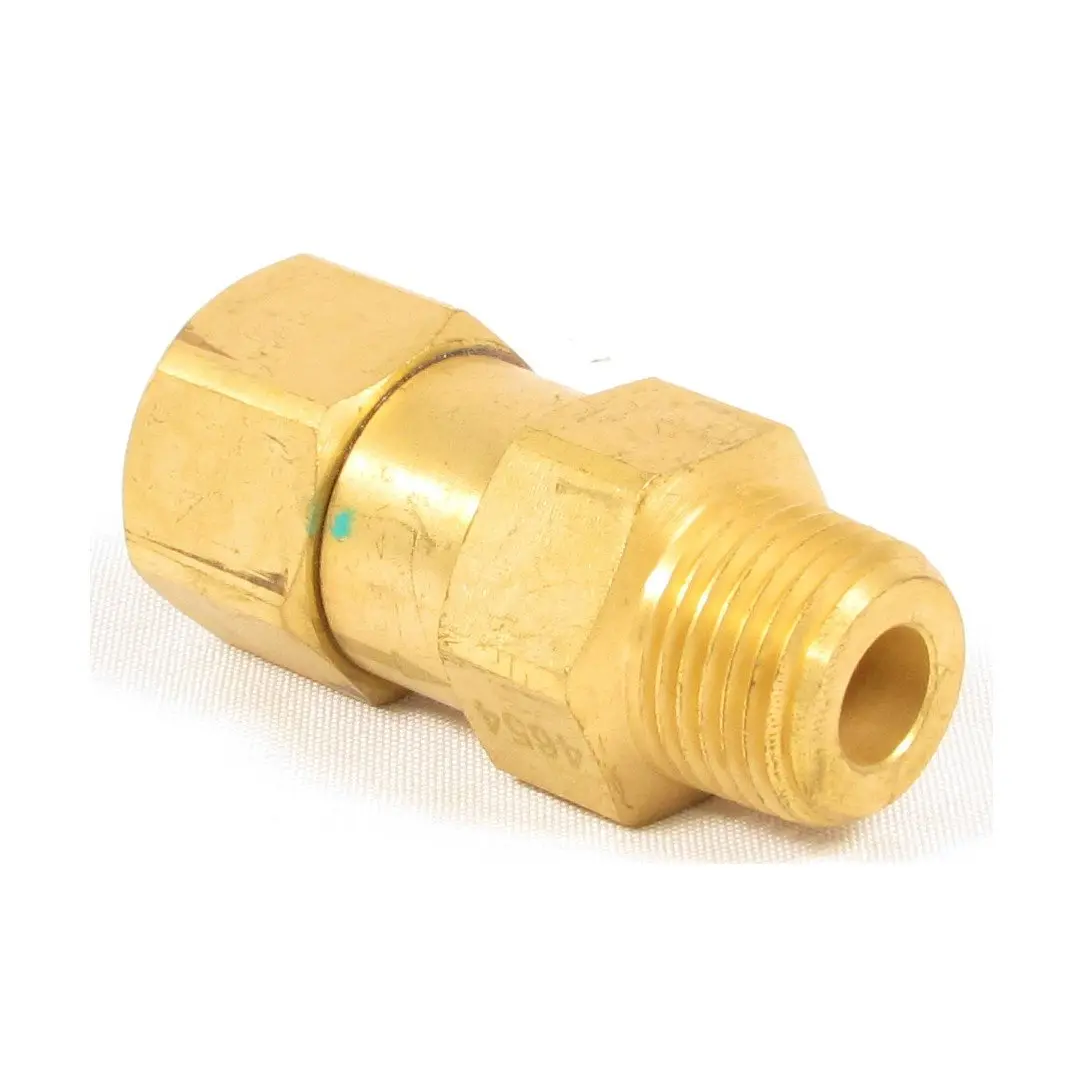

Fortpro SC-3 Single Check Valve — 1/2″ NPT, Female Inlet & Male Outlet | F224654

Description

Specifications

• Product Line: Brakes
• Category Name: Air Brake Valves
• Part Type: Check Valve
• Alternate Part Name: Air Line Check Valve, Air One-Way Check Valve, Air Check Valve, One-Way Valve
• Model: SC-3
• OEM Part Number: 227871, 1676699C1
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Body Type: Straight
• Delivery Port Size: 1/2-14 NPT (Male)
• Supply Port Size: 1/2-14 NPT (Female)
• Material: Brass
• Maximum Operating Temperature: 250 deg. F (121 deg. C)
• Minimum Operating Temperature: -40 deg. F (-40 deg. C)
• Net Weight: 0.38 lb.

Intended Application

• One-way check valve used in air brake systems to allow air flow in one direction and prevent flow in the opposite direction.
• Main applications:
• Air brake systems in commercial vehicles
• Separation of air circuits.
• Applications in air suspension systems

Cross-references

• 10200, 1676697C1, 1676699C1, 170227871, 20QE186C, 227871, 800372, EBN227871N, EM40640, K295-64, K29564, KN23000, R955227871N
