Freightliner 4-Inch Spring Torque Rod with Bushing – Replaces 16-1042000-1

Description

Specifications

• Product Line: Suspension
• Category Name: Chassis & Suspension
• Part Type: Rigid Torque Rod
• Alternate Part Name: Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings
• OEM Part Number: “
• Applicable Bushing: F184208 (Not Rebushable)
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Bolt Hole Diameter: 5/8 in.
• Mounting Position: Rear Suspension
• Torque Rod Style: Rigid
• Material: Forged Steel

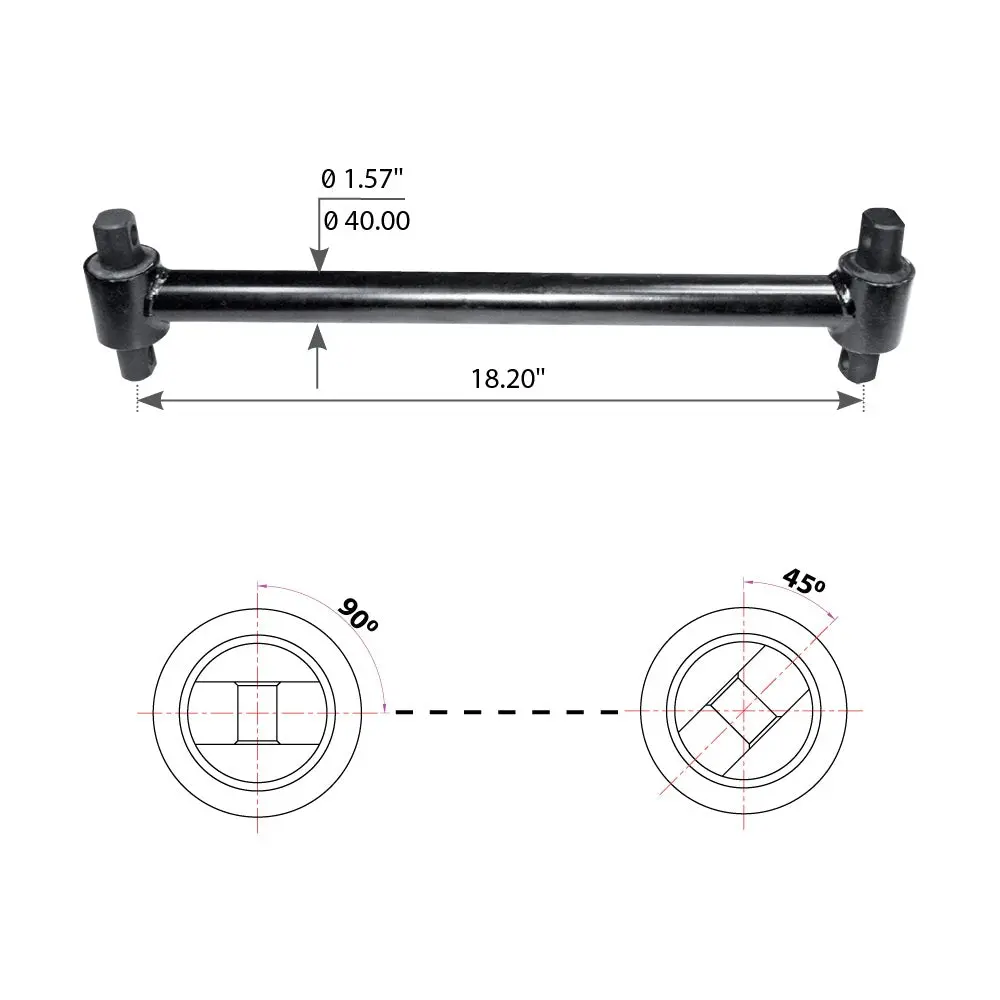

• Bushing Orientation Angle – End 1: 90 deg.
• Bushing Orientation Angle – End 2: 45 deg.
• Bushing Type: Straddle/Bar Pin
• Center Bar Outside Diameter (O.D.): 1-9/16 in.
• Distance Between Bolt Holes: 18-3/16 in.
• Net Weight: 9.98 lb.

Bill Of Material

• Torque Rod pcs x 1
• Torque Rod Bush pcs x 2

Intended Application

• Compatible with Freightliner Rear Leaf Spring Suspension, 4″ Wide Springs, FH34A-44A Models.
• Always compare with your OEM part number prior to purchase to confirm full compatibility.

Cross-references

• 16-09864-000, 16-1042000-1, 1609864000, 1610420001, 345-185, 345185, B1610420001, B16104201, E-3546, E3546, IPC942893, R303546, TMR513
