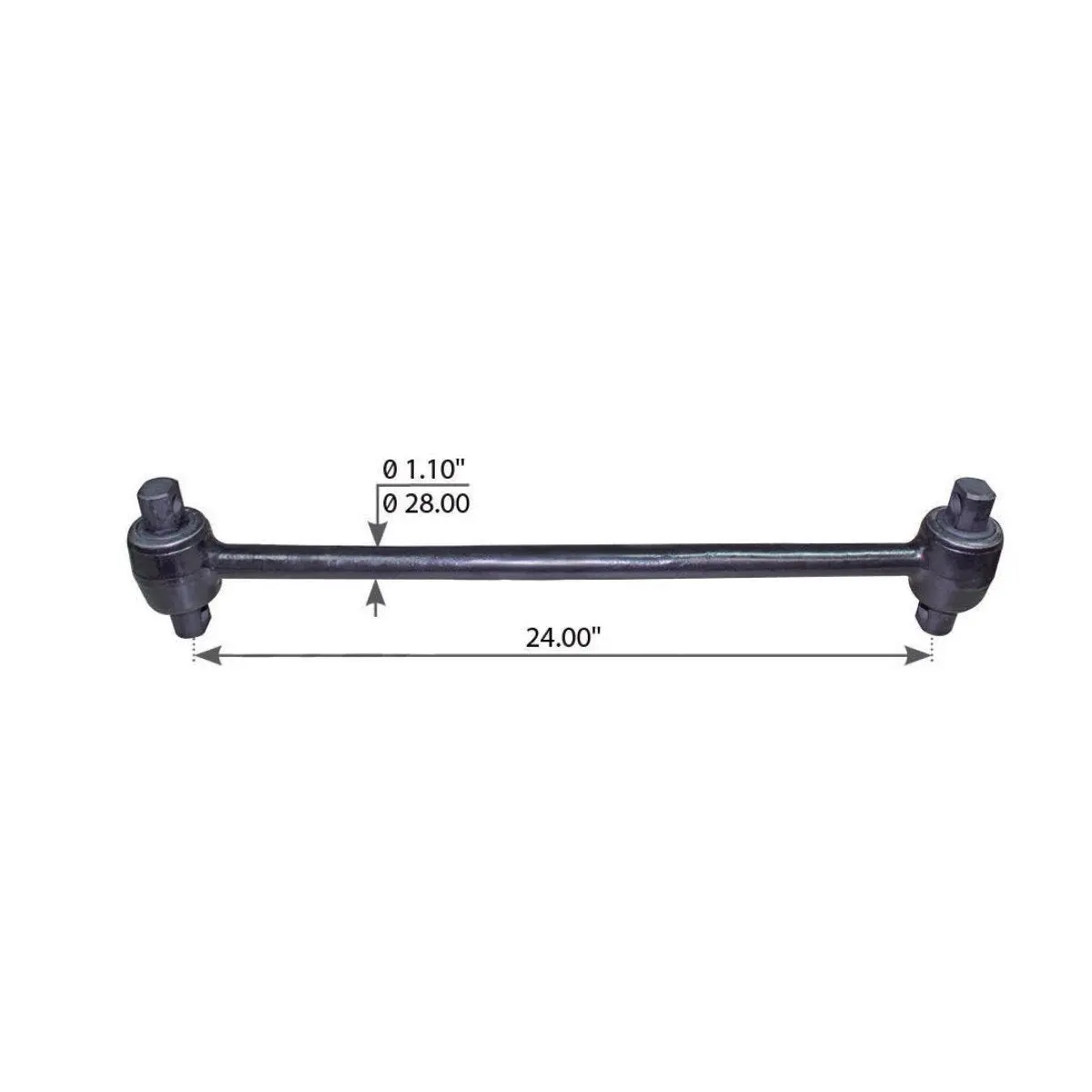

Fortpro Freightliner Torque Rod with Bushing – Replaces 16-16749-001

Description

Specifications

• Product Line: Suspension
• Category Name: Chassis & Suspension
• Part Type: Rigid Torque Rod
• Alternate Part Name: Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings
• OEM Part Number: 1616749001
• Applicable Bushing: F317261
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Bolt Hole Diameter: 5/8 in.
• Mounting Position: Front Axle Suspension
• Torque Rod Style: Rigid
• Material: Forged Steel
• Bushing Orientation Angle – End 1: 90 deg.
• Bushing Orientation Angle – End 2: 45 deg.
• Bushing Type: Straddle/Bar Pin
• Center Bar Outside Diameter (O.D.): 1-3/32 in.
• Distance Between Bolt Holes: 24 in.
• Net Weight: 13.95 lb.

Bill Of Material

• Torque Rod pcs x 1
• Torque Rod Bush pcs x 2

Intended Application

• Compatible With Freightliner Air Ride, FAS ll Suspension Systems.
• Always compare with your OEM part number prior to purchase to confirm full compatibility.

Cross-references

• 16-16749-001, 1616749001, 345-915, 345915, 741450, A16-16749-001, A1616749001, E-16277, E16277, TMR514F
