Freightliner-Specific Torque Rod with Bushing by Fortpro – Replaces Part Number 161-6749-002

Description

Specifications

• Product Line: Suspension
• Category Name: Chassis & Suspension
• Part Type: Rigid Torque Rod
• Alternate Part Name: Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings
• OEM Part Number: 1616749002
• Applicable Bushing: F317261
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Bolt Hole Diameter: 5/8 in.
• Mounting Position: Front Axle Suspension
• Torque Rod Style: Rigid
• Material: Forged Steel

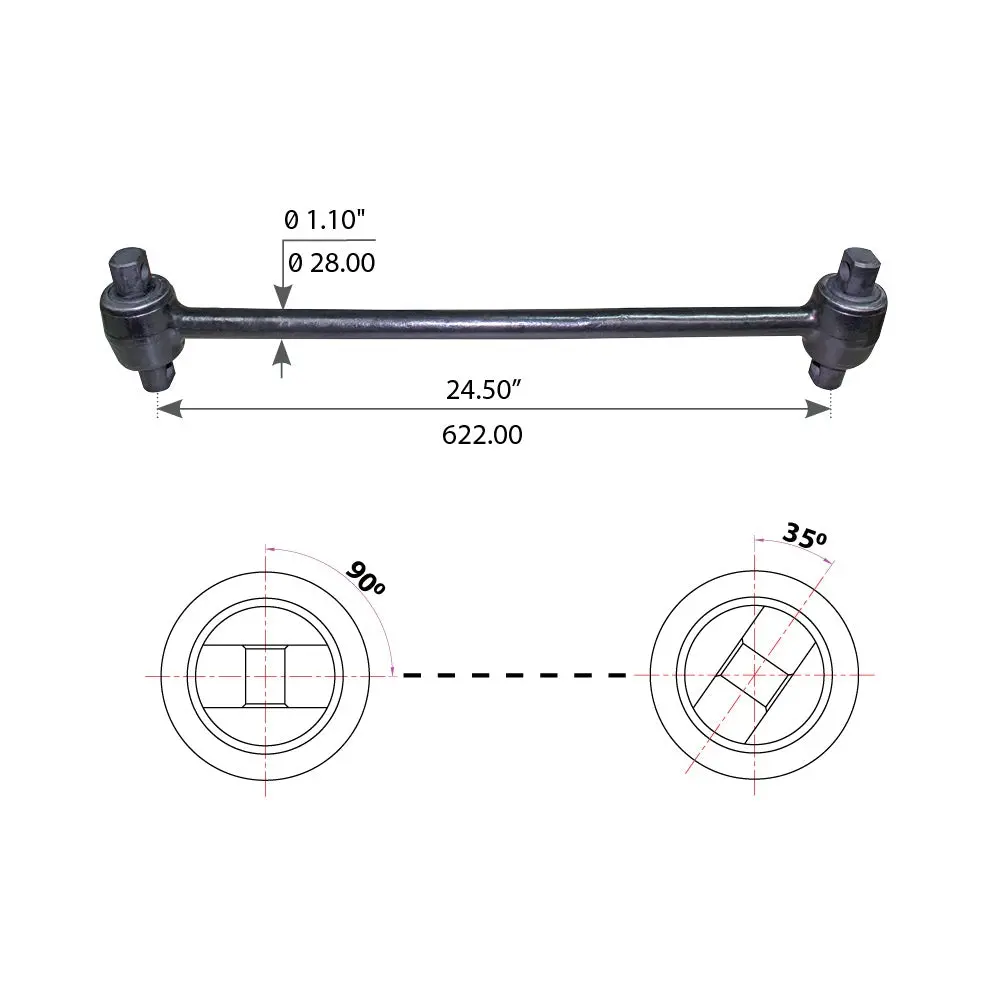

• Bushing Orientation Angle – End 1: 90 deg.
• Bushing Orientation Angle – End 2: 35 deg.
• Bushing Type: Straddle/Bar Pin
• Center Bar Outside Diameter (O.D.): 1-3/32 in.
• Distance Between Bolt Holes: 24-1/2 in.
• Net Weight: 13.51 lb.

Bill Of Material

• Torque Rod pcs x 1
• Torque Rod Bush pcs x 2

Intended Application

• Compatible With Freightliner Rear FAS AirLiner I & II Suspension Systems.
• Always compare with your OEM part number prior to purchase to confirm full compatibility.

Cross-references

• 16-16749-002, 1616749002, 345-868, 345868, 6813267216, 741451, A16-16749-002, A1616749002, E-15542, E15542, GAFF11081, TMR535
